NIKON TV Adapter
Characteristic
lConvert the NIKON trinocular microscope phototube/head/port (have standard38 mm, 1.50-inchinner diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type(M52x0.75mm metric thread);
lWith different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope
trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”,1/3” or 1/4” inch CCD or CMOS sensor chips);
lCan be installed in UIS trinocular tube such as: NIKON E100/E200, Ni/Ci series, Eclipse LV100N, 50i/55i/80i/90i series
lUpright: Alphaphot-2, Eclipse series(requires YT-tube), Labophot-2,Optiphot-2, Optiphot 100S/150/200/300;
lMetallurgical: EPIPHOT 300/200;
lMeasuring: MM-40/MM-60;
lInverted:Diaphot 200/300,TS100-F,TE2000；
lBuild of material: stainless steel material for the C-Mount end andspray-paintedaluminum for
the phototube end;
lTelecentric optics with low light deficiency;
lParfocal with different microscope objective lenses;
lDiffraction limited MTF;
lAperture totally coupled with UIS microscope objective’s exit pupil;
lThe profile of one end of the adapter connecting to the microscope:
Specification
|
Model |
Photo |
Magnification |
Sensor Size |
Mount Type |
|

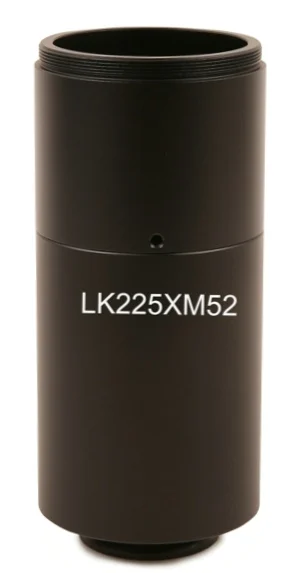

NK225XM52 MBB42225 |
|
2.25X |
2.7”,1.8”, |
M52 |
|

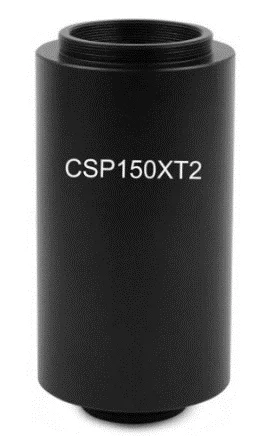

NK150XT2 MBB42150 |
|
1.5X |
1.8”, 4/3”, |
T2-Mount |
|

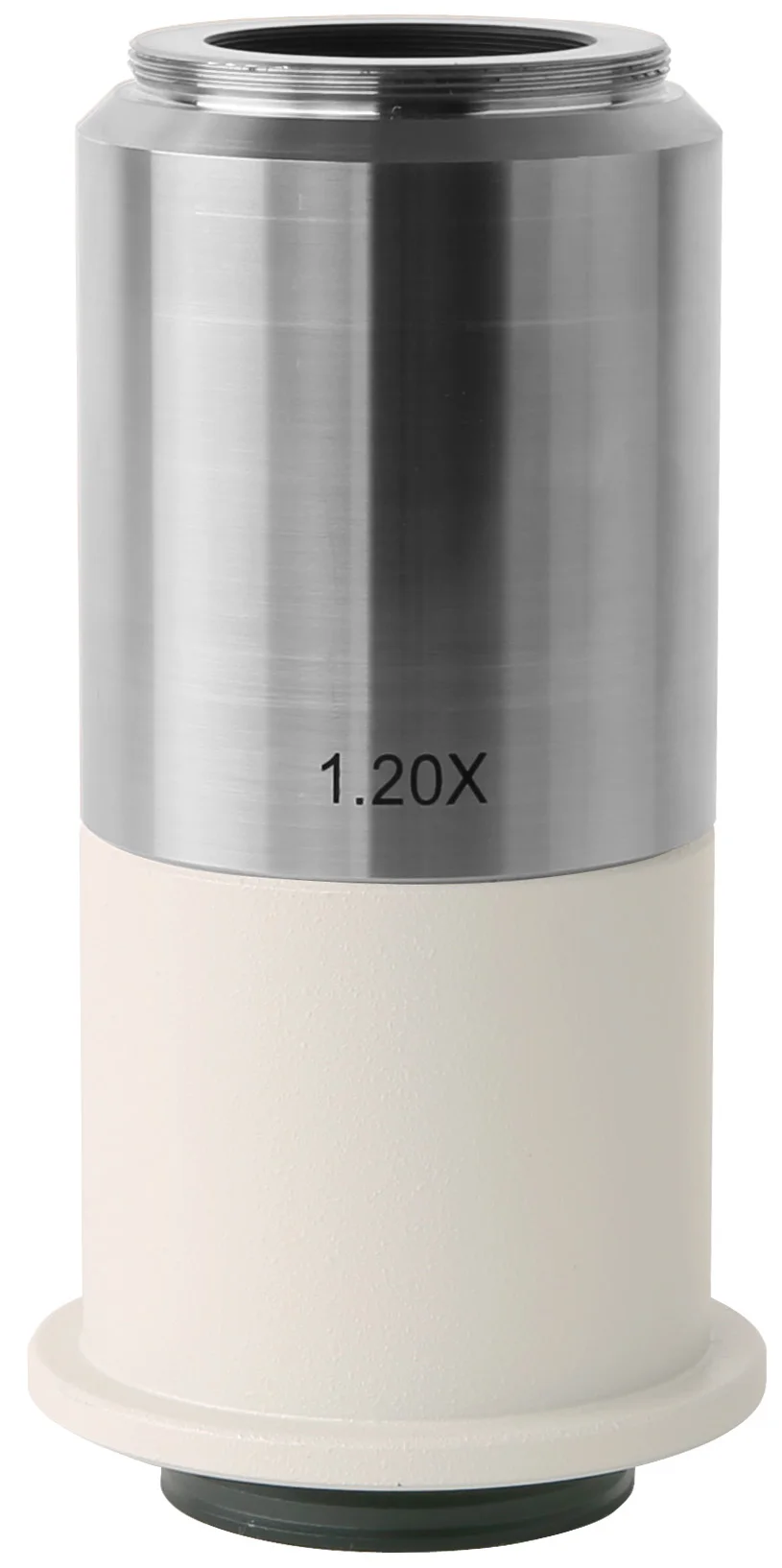

MQD42120(New) NK120XT2 MBB42120 |
|
1.2X |
4/3”,1” |
T2-Mount |
|

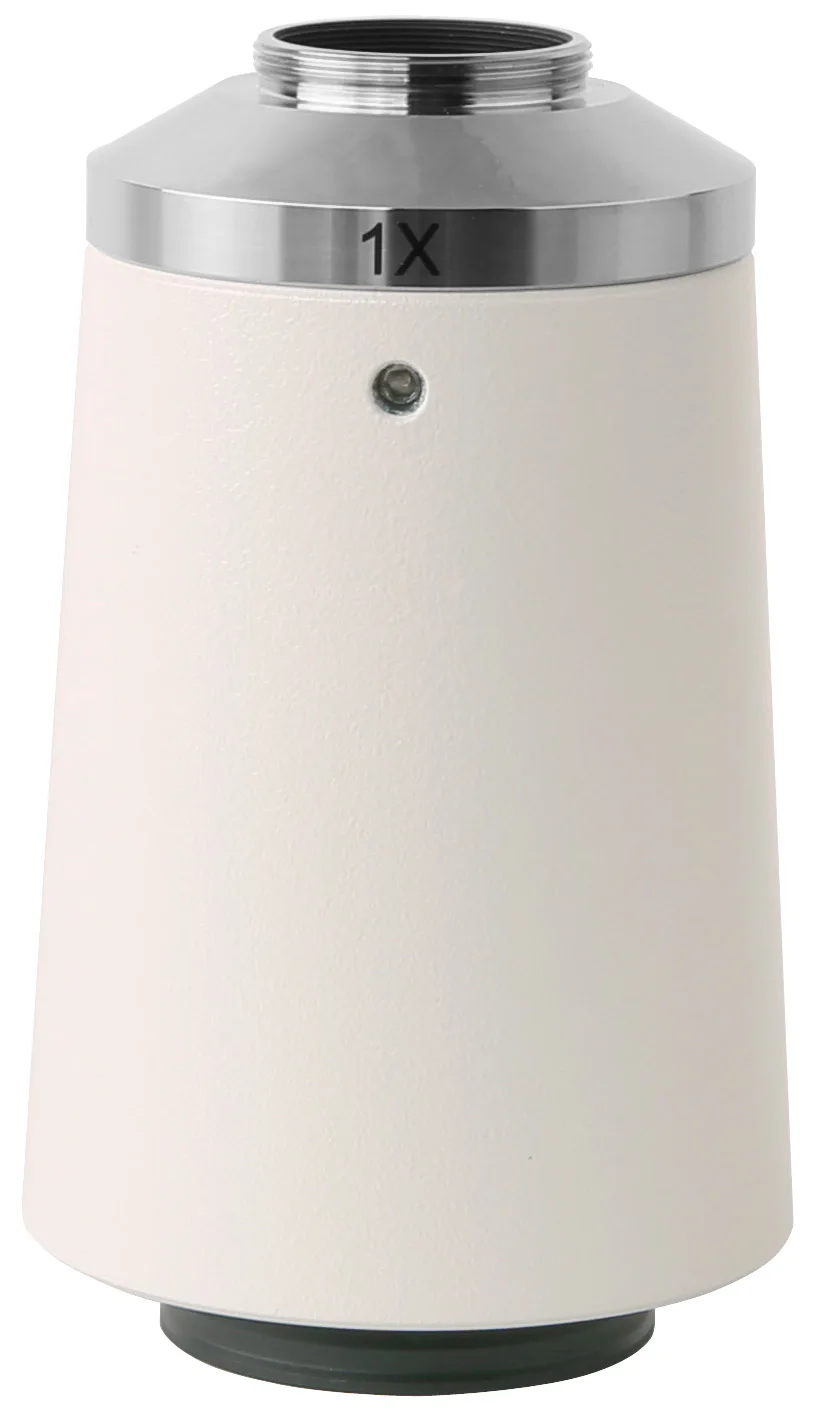

MQD42000 MBB42000 |
|
1.0X |
1”, |
C-Mount |
|

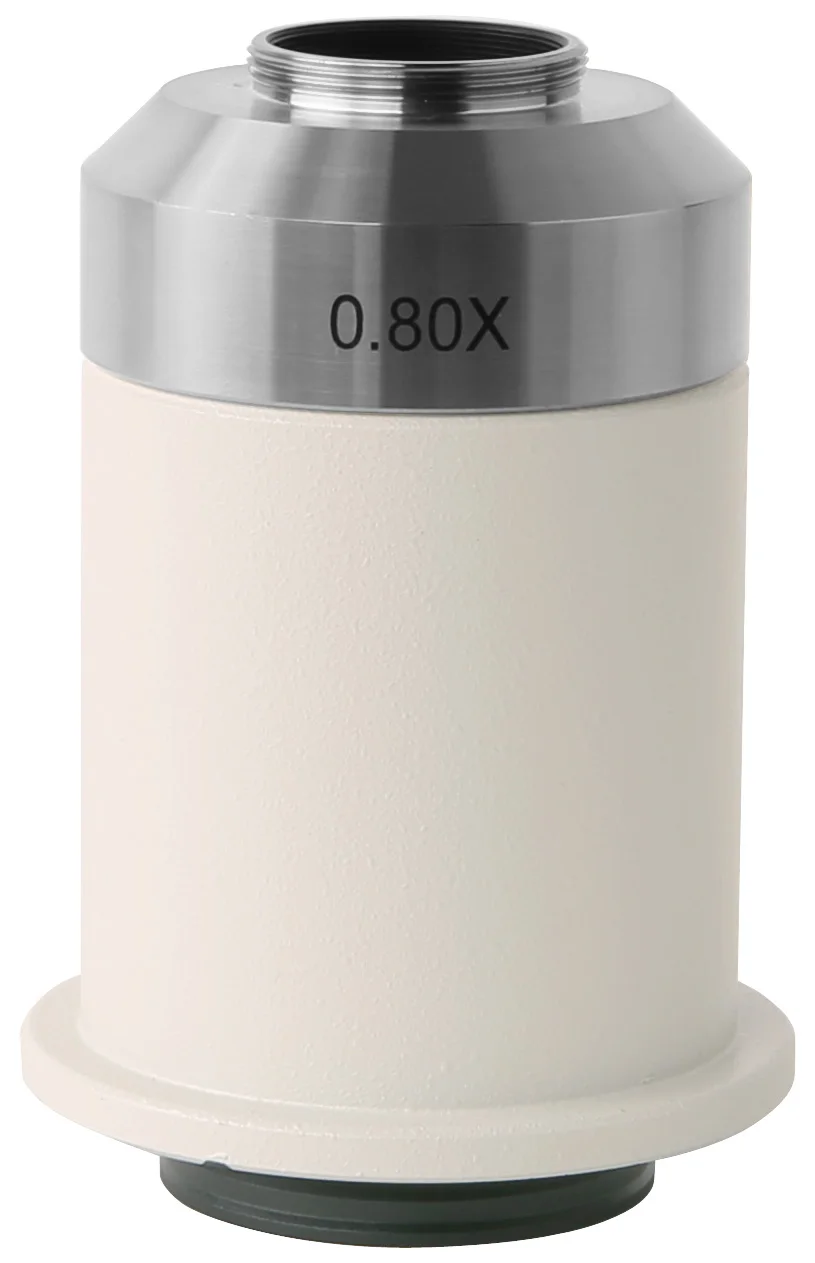

MQD42080 NK080XC MBB42080 |
|
0.8X |
1”,2/3” |
C-Mount |
|

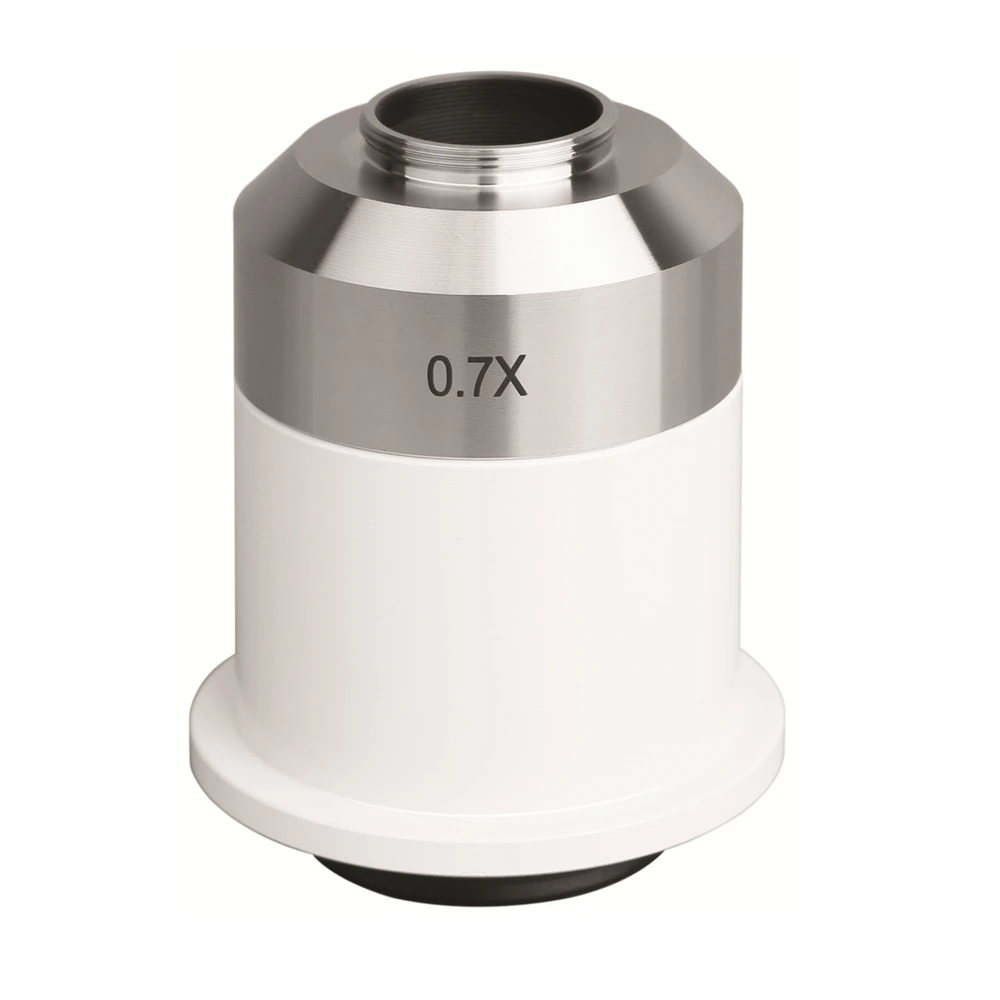

MQD42070 MBB42070 |
|
0.7X |
2/3”,1/1.8”,1/2” |
C-Mount |
|

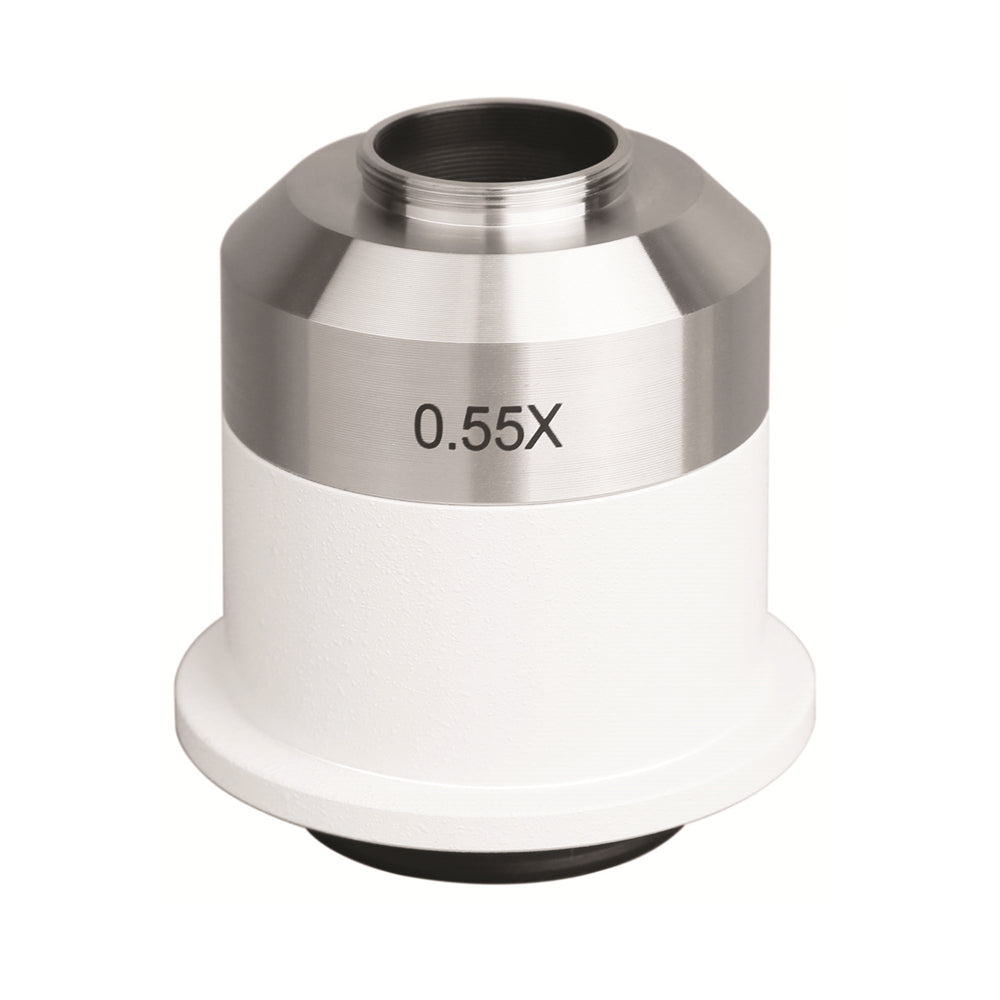

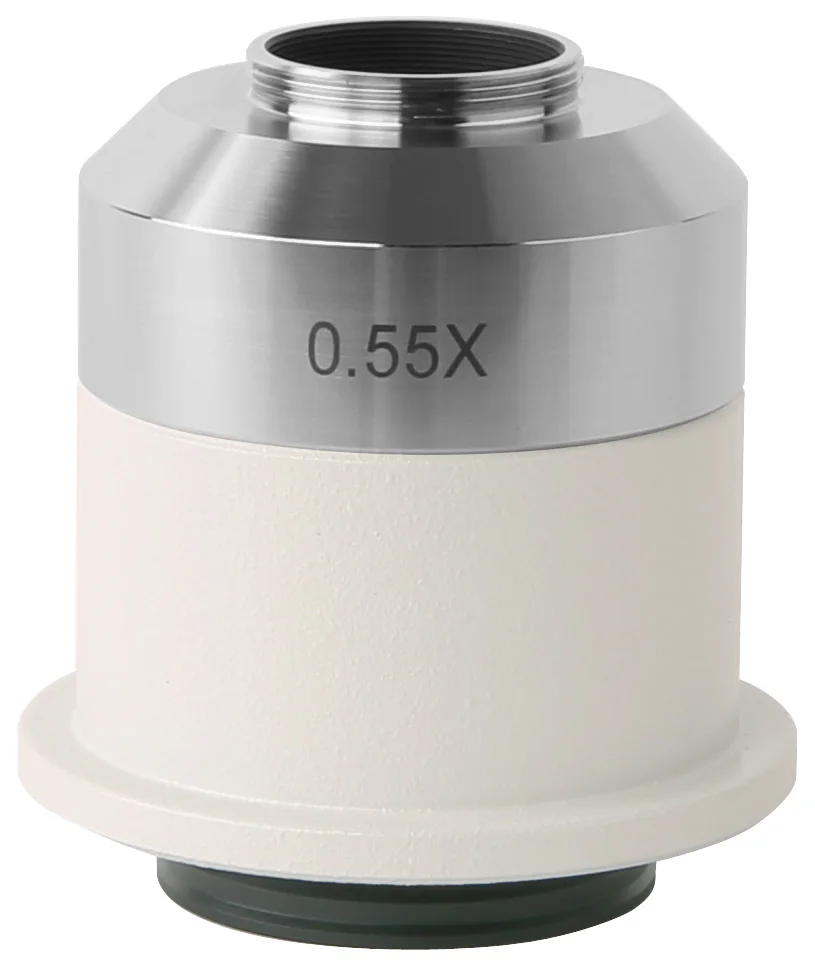

MQD42055 NK055XC MBB42055 |
|
0.55X |
1/1.8”,1/2”,1/2.5” |
C-Mount |
|

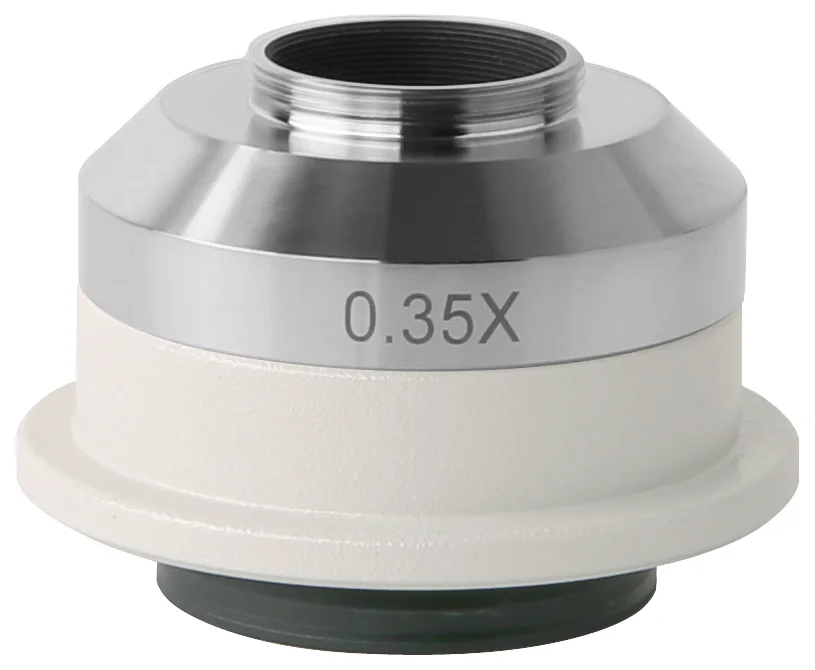

MQD42035 NK035XC MBB42035 |
|
0.35X |
1/2.5”,1/3”,1/4” |
C-Mount |
|
Supported |
Can be installed in UIS trinocular microscope such as: NIKON E100/E200, Ni/Ci series, Eclipse LV100N, 50i/55i/80i/90i series Upright: Alphaphot-2, Eclipse series,Labophot-2, Optiphot-2, Optiphot 100S/150/200/300； Metallurgical: EPIPHOT 300/200; Measuring: MM-40/MM-60; Inverted: Diaphot 200/300, TS100-F, TE2000； |
|||
