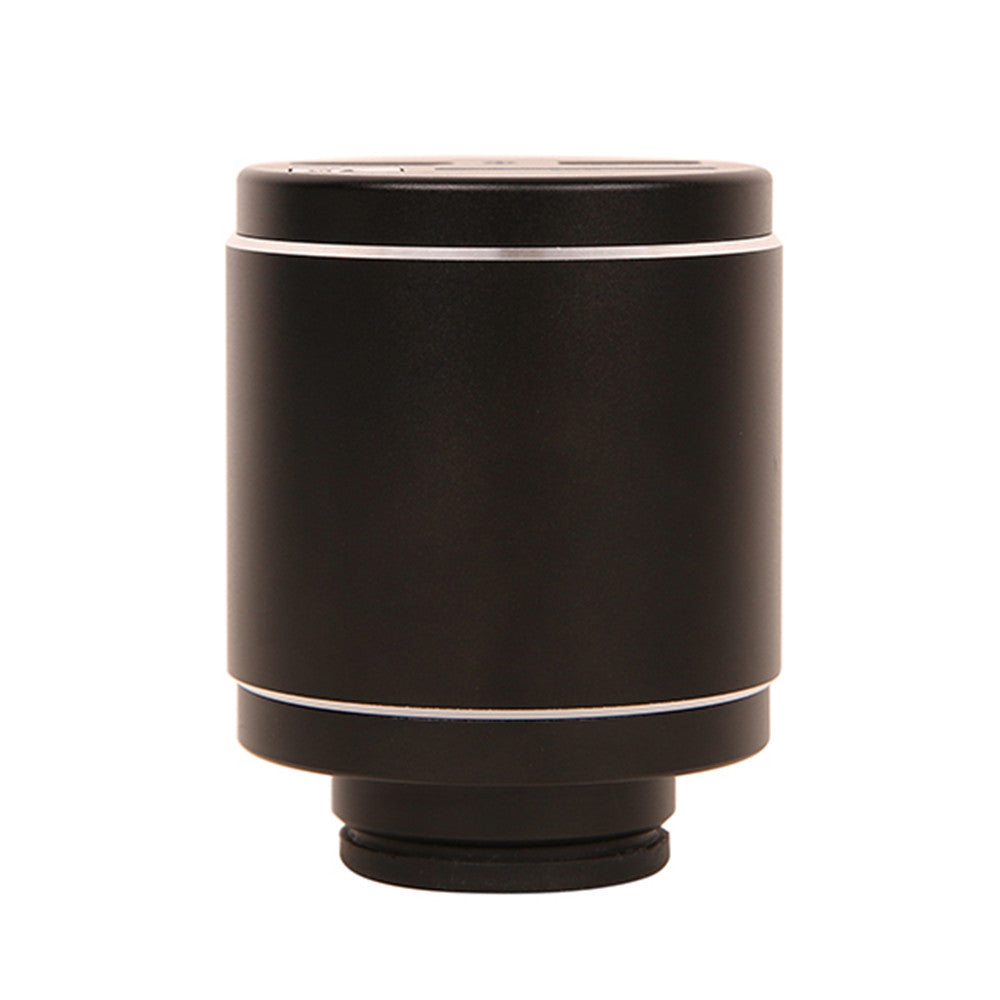

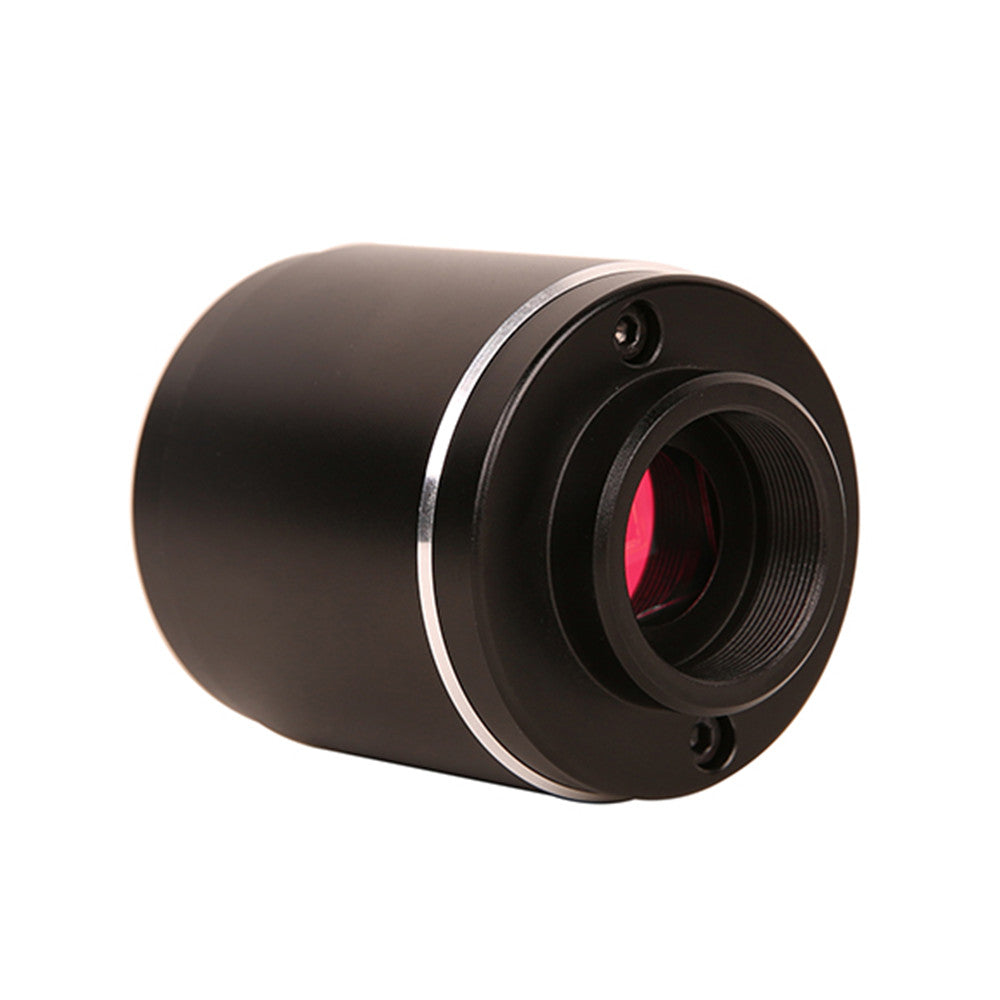

1080P 60fps 2M HDMI FHD Camera for Stereo Biological Microscope Sony IMX307 1/2.8" SensorXCAMLITE1080PA

XCAMLITE Series HDMI-Compatiable FHD Camera Application DSers   The HDMI-Compatiable FHD XCAMLITE series camera is intended to...
Availability: In Stock
Product Type: Microscope Camera
$210.00
$210.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $210.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

1080P 60fps 2M HDMI FHD Camera for Stereo Biological Microscope Sony IMX307 1/2.8" SensorXCAMLITE1080PA

1080P 60fps 2M HDMI FHD Camera for Stereo Biological Microscope Sony IMX307 1/2.8" SensorXCAMLITE1080PA

$210.00

1080P 60fps 2M HDMI FHD Camera for Stereo Biological Microscope Sony IMX307 1/2.8" SensorXCAMLITE1080PA

$210.00

XCAMLITE Series HDMI-Compatiable FHD Camera Application

DSers



The HDMI-Compatiable FHD XCAMLITE series camera is intended to be used for the acquisition of digital images from the stereo microscope and biological microscope.
The basic characteristic is listed as below:

lSony Starvis back illuminated CMOS sensor

lFHD HDMI-Compatiable video outputs

lSD card for the captured image and video storage

lEmbedded XCamView for the control of the camera

lWith strong ISP and other related processing functions

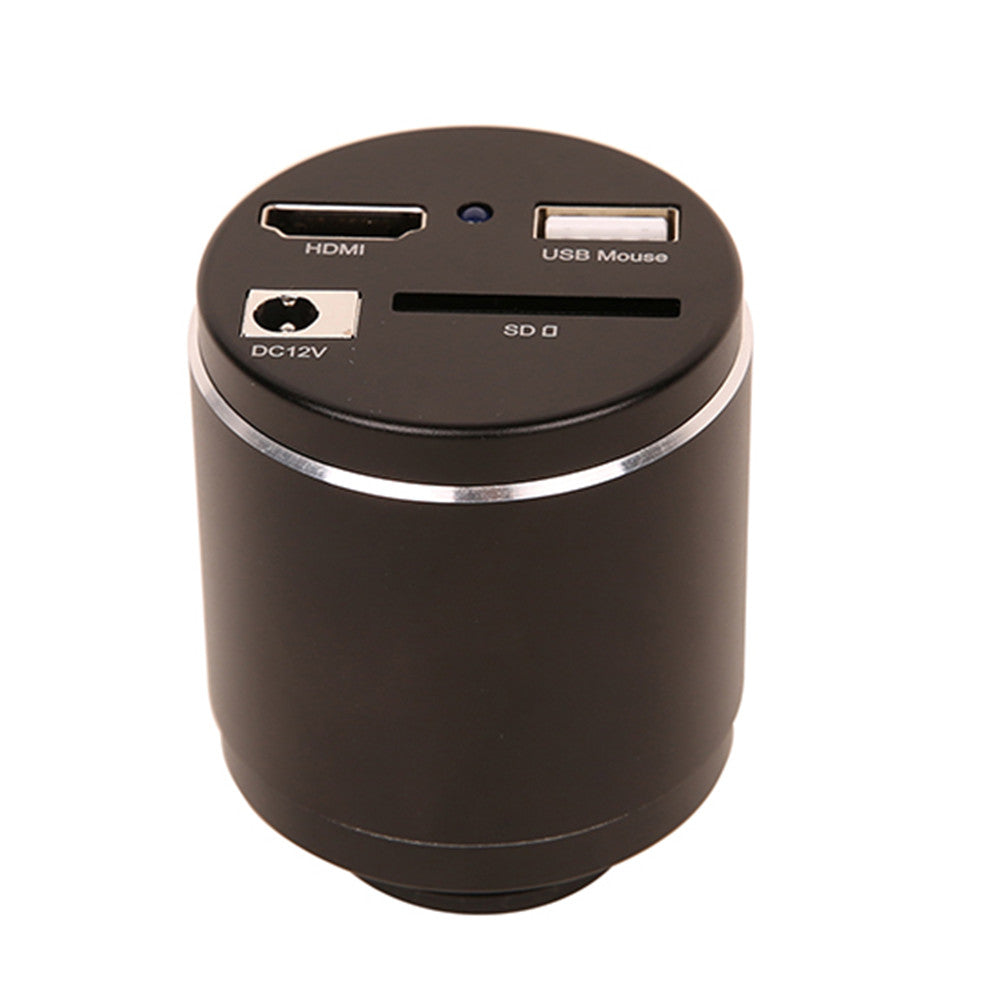

Interface

Function Description

USB Mouse

Connect USB mouse for easy operation with embeddedXCamViewsoftware

HDMI-Compatiable

Comply with HDMI-Compatiable 1.4 standard. 1080P format video output for standard FHD monitor

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images storage

DC12V

Power adapter connection (12V/1A)

LED

LED status indicator

HDMI-CompatiableFHD XCAMLITE Camera Datasheet

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure(ms)

XCAMLITE1080PA XPLITE1080PA

Sony
IMX307(C)

1/2.8"(5.57x3.13)

2.9x2.9

1300mv with 1/30s

60@1920*1080(HDMI-Compatiable)

1x1

0.01~1000

HDMI-CompatiableFHD XCAMLITE Camera Function Description

Video Output

Video Output Interface

Function Description

HDMI-Compatiable Interface

Comply with HDMI-Compatiable 1.4 standard;60fps@1080P

Image Capture and Video Saving in SD card

Function Name

Function Description

Video Saving

Video format:2M(1920*1080) H264 encoded MP4 file;

Video saving frame rate: 50~60fps (related with SD card performance);

Image Capture

2M (1920*1080) JPEG image in SD card

ISP Function


Function Name

Function Description

Exposure / Gain

Automatic / Manual Exposure

White Balance

Manual / Automatic / ROI Mode

Sharpening

Supported

3D Denoise

Supported

Saturation Adjustment

Supported

Contrast Adjustment

Supported

Brightness Adjustment

Supported

Gamma Adjustment

Supported

50HZ/60HZ Anti-flicker Function

Supported

Image Operation Function


Function Name

Function Description

Zoom In/Zoom Out

Up to 10X

Mirror/Flip

Supported

Freeze

Supported

Cross Line

Supported

Embedded Files Browser

Supported

Video Playback

Supported

Other Functions


Function Name

Function Description

Restore Factory Settings

Supported

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian

HDMI-CompatiableFHD XCAMLITE Camera Packing Information

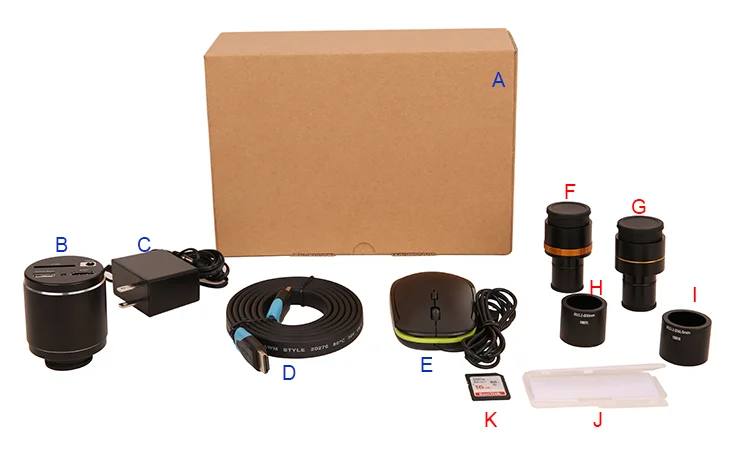

Figure5‑1 HDMI-Compatiable FHD XCAMLITE Camera Packing Information

Standard Packing List

A

Gift box :L:17.5cm W:17.5cm H:8.5cm (1pcs, 0.85kg/ box)

B

XCAMLITE1080PA

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard

D

HDMI-Compatiable cable

E

USB mouse/USB wireless mouse

Optional Accessory

F

Adjustable lens adapter

C-Mount to Dia.23.2mmeyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens adapter

C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount,
microscope camera or telescope camera), engineer will help you to
determine the right microscope or telescope camera adapter for your
application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

K

SD card(4G or 8G)






Brief Introduction ofHDMI-CompatiableFHD XCAMLITE UI and Its

XCamView UI

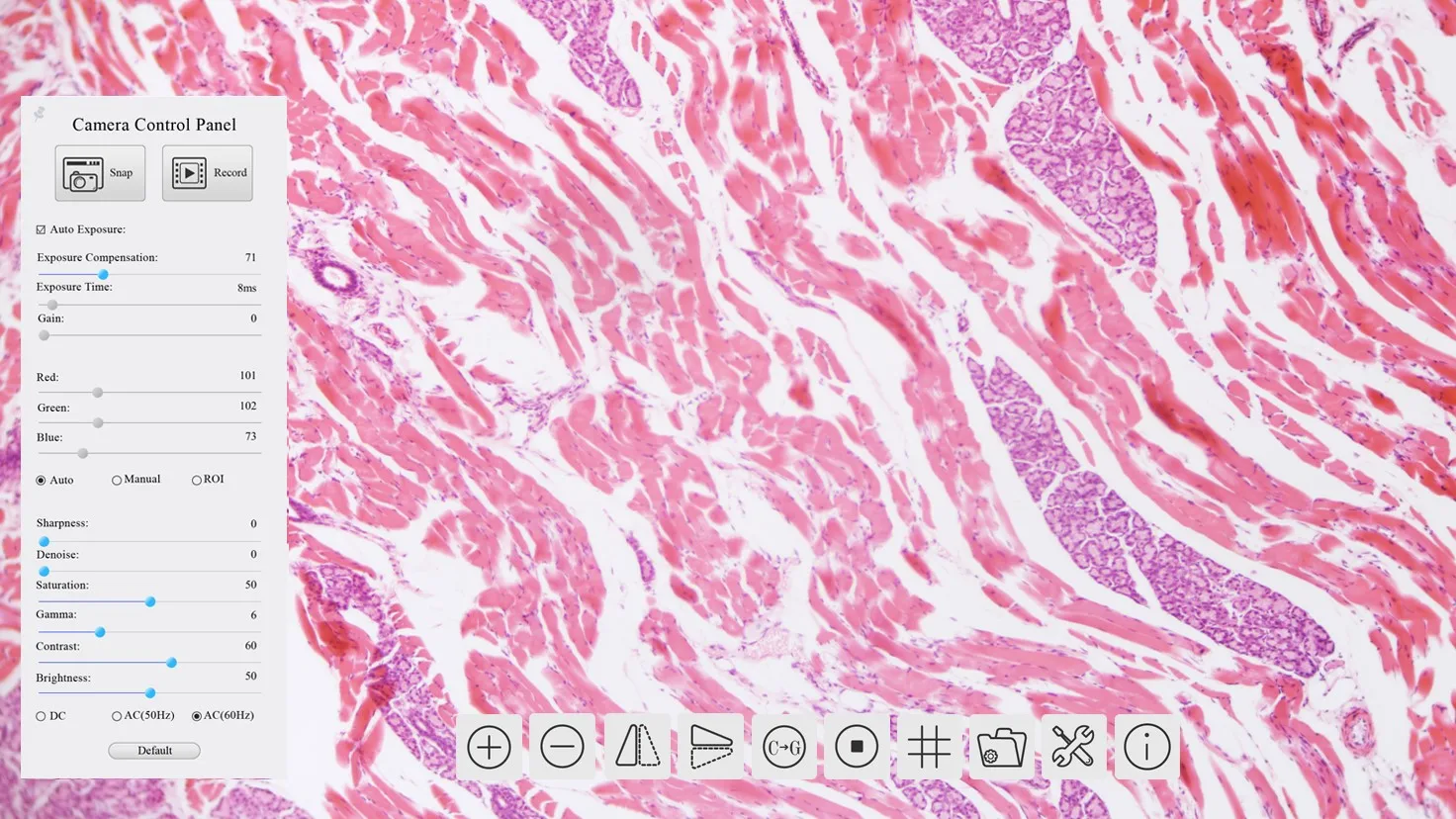

The HDMI-CompatiableFHD XCAMLITEUI shown inFigure7‑1includes aCamera Control Panelon the left of the video window, and aSynthesis Camera Control Toolbaron the bottom of the video window.

Figure7‑7‑1The HDMI-Compatiable FHD XCAMLITE Camera Control GUI
