The Application of the XCAM1080P Series Camera

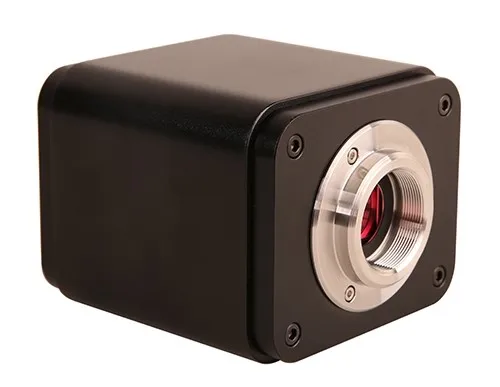

Figure1‑1
The XCAM1080P series camera is intended to be used for the acquisition of digital images from the stereo microscope and biological microscope. The basic characteristic is listed as below:
-
Sony Exmor back illuminated CMOS sensor
-
1080P HDMI/USB multiple video outputs
-
SD card for the captured image and video storage
-
Embedded XCamView for the control of the camera
-
With strong ISP and other related processing functions
-
ToupView/ToupLite software for PC
-
ToupLite software for MAC
XCAM1080P Series Camera’s Datasheet
|
Order |
Sensor |
Pixel(μm) |
G Dark |
FPS/Resolution |
Binning |
Exposure(ms) |
|
XCAM1080P2MPA |
Sony IMX385(C) 1/2"(7.2x4.05) |
3.75x3.75 |
1175mv with 1/30s 0.15mv with 1/30s |
60@1920*1080(HDMI) 50@1920*1080(USB) |
1x1 |
0.04~1000 |
Available Ports on the Back of the Camera Body

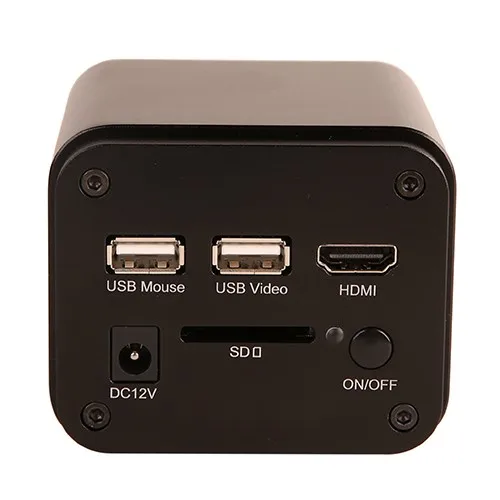

Figure3‑1Available Ports on the Back Panel of the Camera Body
|
Function Description |
|
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software; |
|
USB Video |
Connect PC or other host device to realize video image transmission; |
|
HDMI |
Comply with HDMI1.4 standard. 1080P format video output for standard monitor; |
|
DC12V |
Power adapter connection (12V/1A); |
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
|
LED |
LED status indicator; |
|
ON/OFF |
Power switch; |
|
Video |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4 standard; 60fps@1080P; |
|
USB Video Interface |
Connecting USB port ofPC for video transfer ; MJPEG format video; |
|
Function |
Function Description |
|
Video Saving |
Video format：1920*1080 H264/H265 encoded MP4 file; Video saving frame rate：60fps(XCAM1080P2MPA/XCAM1080P8MPA) |
|
Image Capture |
2M (1920*2160, XCAM1080P2MPA) JPEG/TIFF image in SD card ; |
|
Measurement Saving |
Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
|
Exposure(Automatic/ Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function |
|
|
Image Operations |
Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English |
|
Software EnvironmentunderUSB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |
XCAM1080P Series Camera Packing Information(TBD)

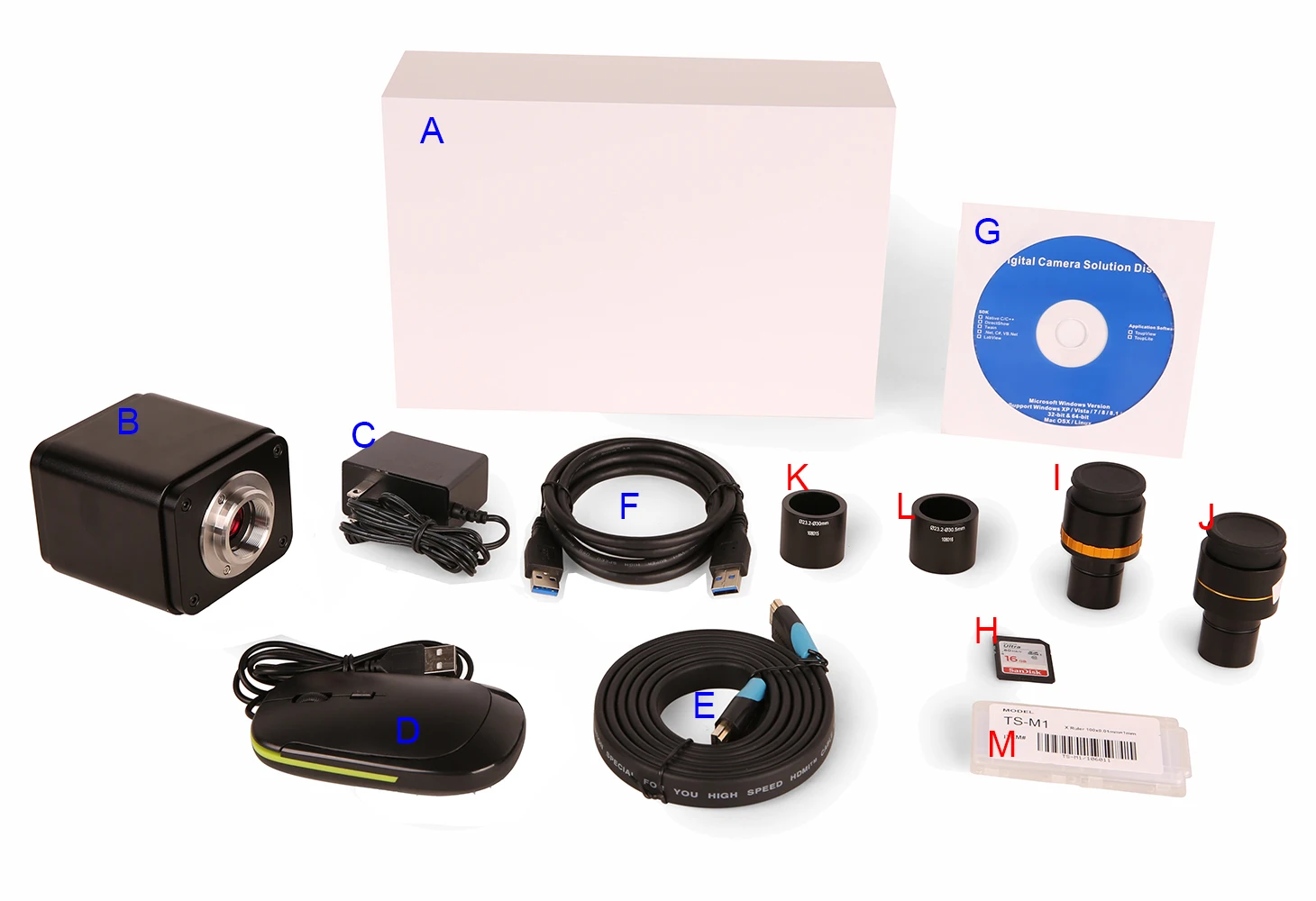

Figure5‑1 Camera Packing Information
If you need optional accessories, pls contact us for quotation.
Sample Photos Captured with XCAM1080P Series Camera
