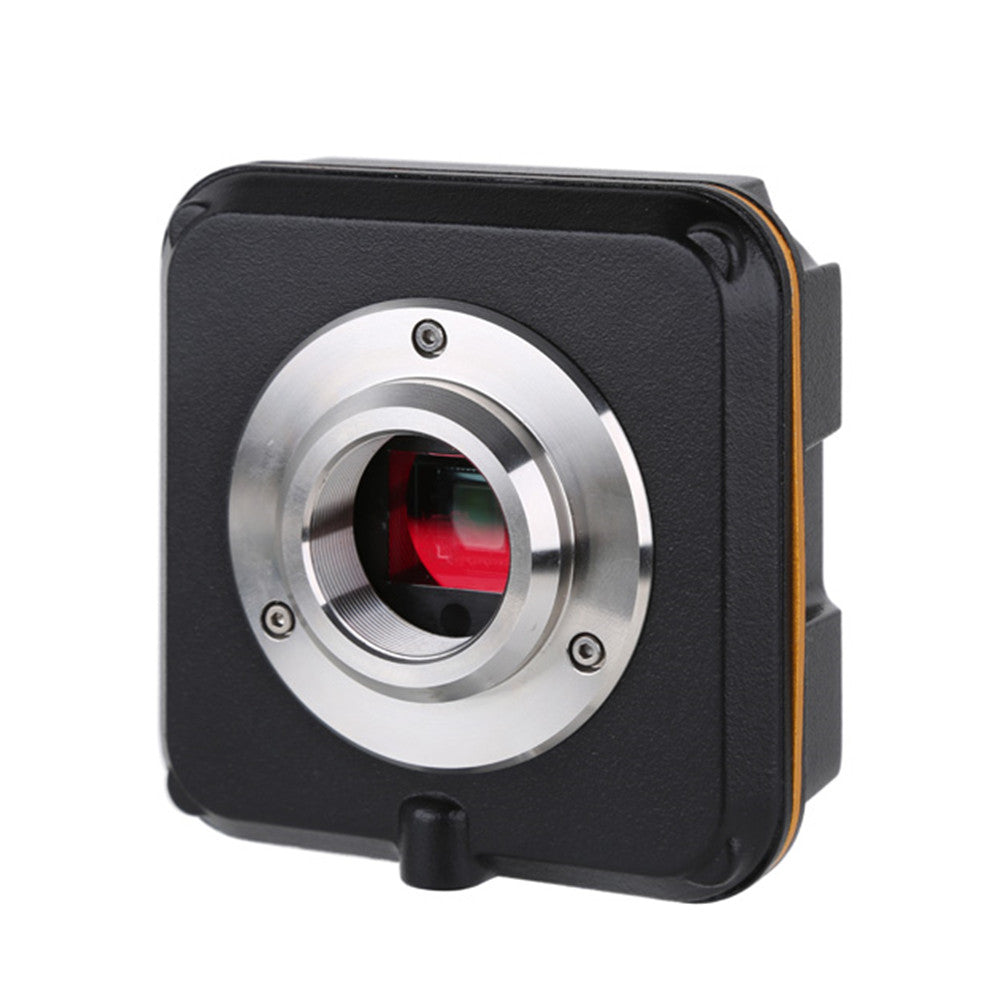

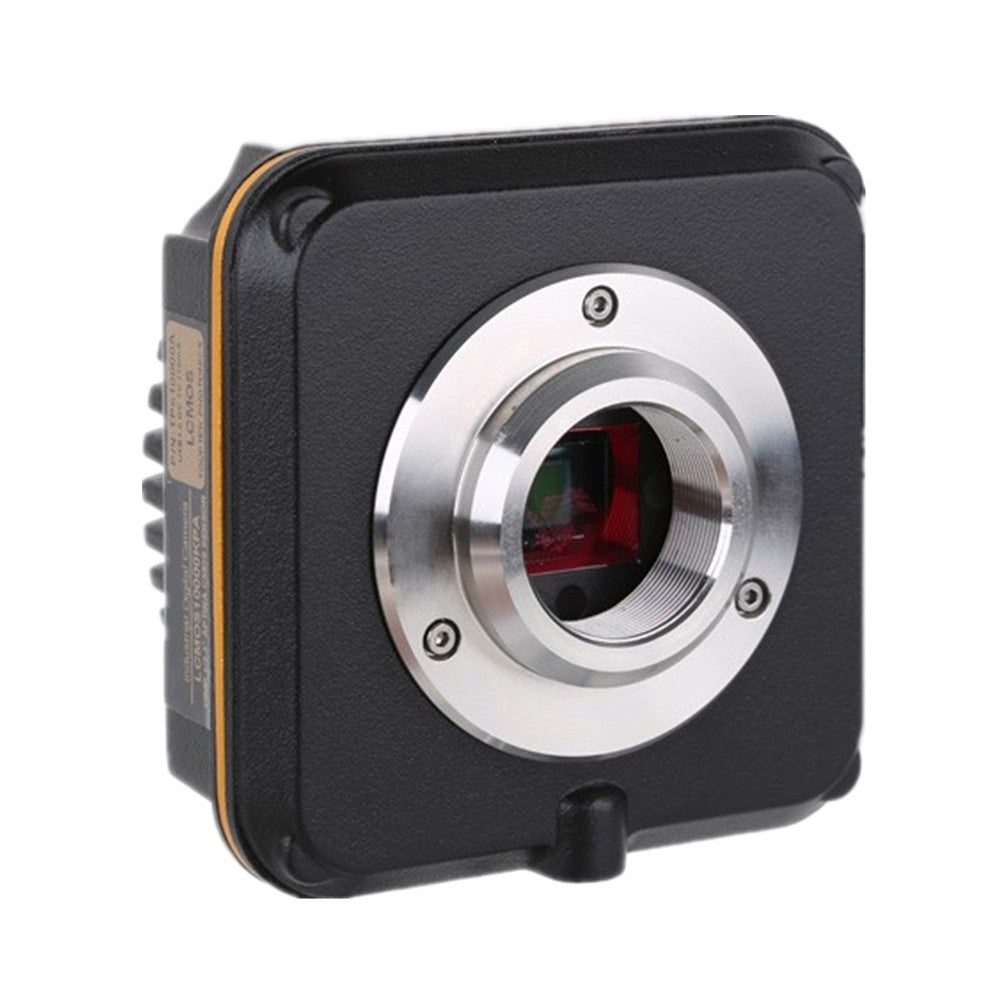

LCMOS Series C-mount USB2.0 CMOS Camera
LCMOS Characteristic
LCMOS is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB2.0 is used as the data transfer interface.
LCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The LCMOS can be widely used in bright field environment and microscope image capture and analysis with moderate speed.
The basic characteristic of L3CMOS cameras are as follows:
1） Stand C-Mount camera with Aptina CMOS sensor;
2） With hardware resolution among 1.2M to 14M;
3） On-board memory for perfect synchronization，higher frame rate and stable performance;
4） High performance cooling structure, ensures low image noise;
5） USB2.0 interface ensuring high speed data transmission;
6） Ultra-FineTMcolor engine with perfect color reproduction capability;
7） With advanced video & image processing application ToupView;
8） Providing Windows/Linux/Mac OS multiple platforms SDK;
9） Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
LCMOS Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure |
|
LCMOS10000KPA |
10M/MT9J003(C) |
1.67x1.67 |
0.31v/lux-sec 65.2dB 34dB |
3.7@3584x2748 |
1x1, 2x2, 4x4 |
0.4ms~2000ms |
C: Color; M: Monochrome;
|
Other Specification for LCMOS Cameras |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTMColor Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural with High Performance Cooling Structure |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft®Windows®XP / Vista / 7 / 8 /10 (32 & 64 bit)，OSx(Mac OS X),Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port:USB2.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|

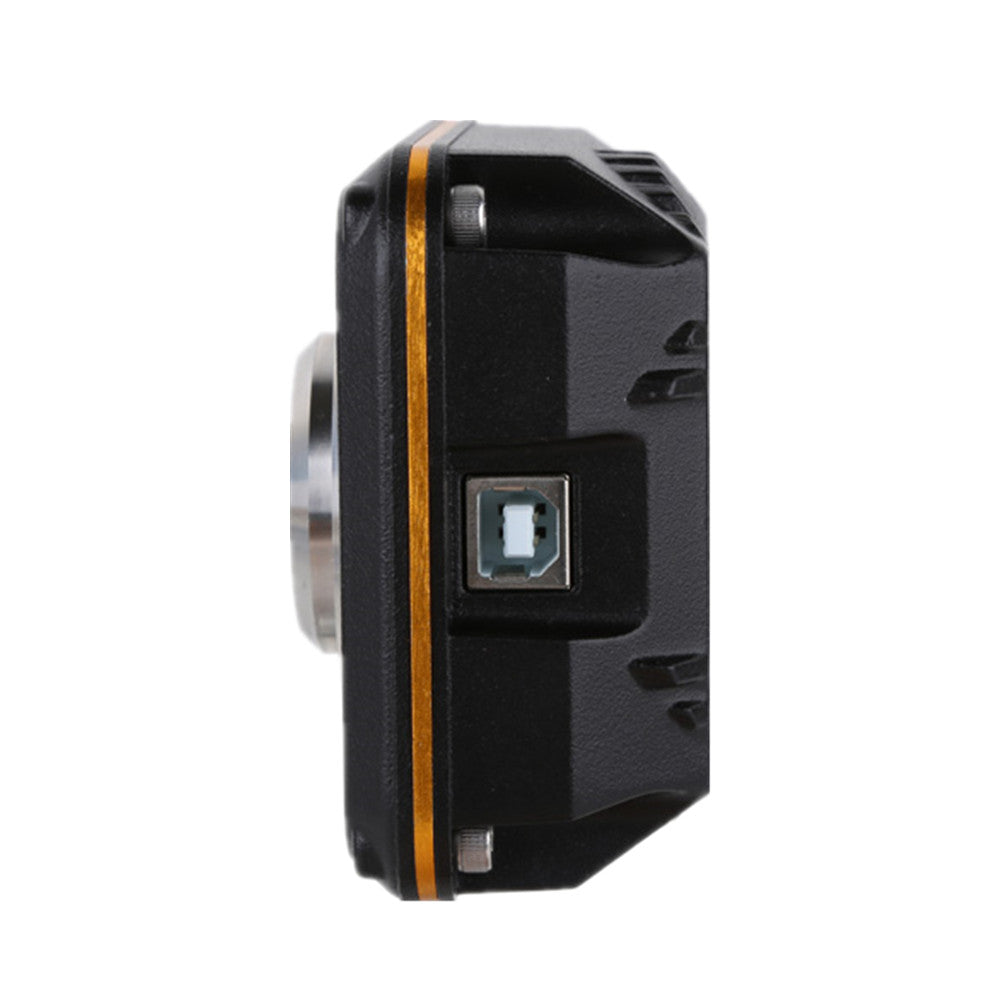

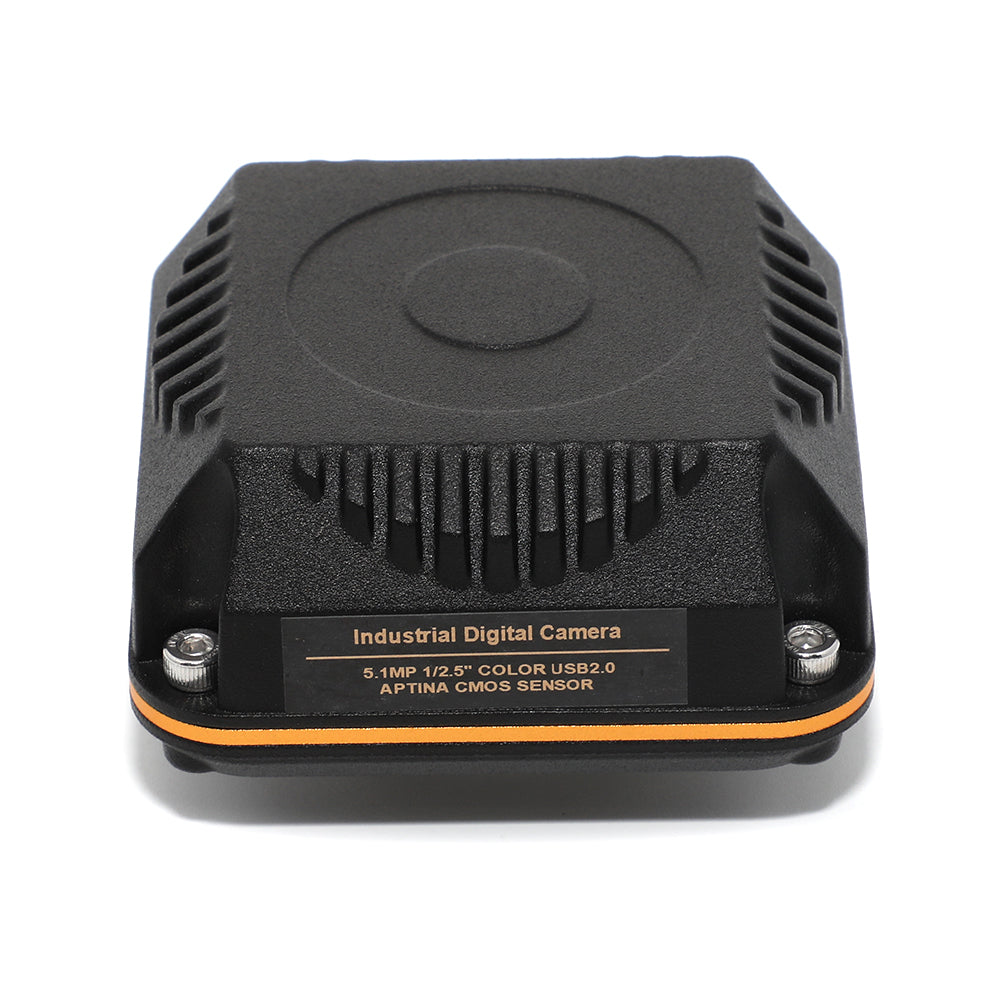

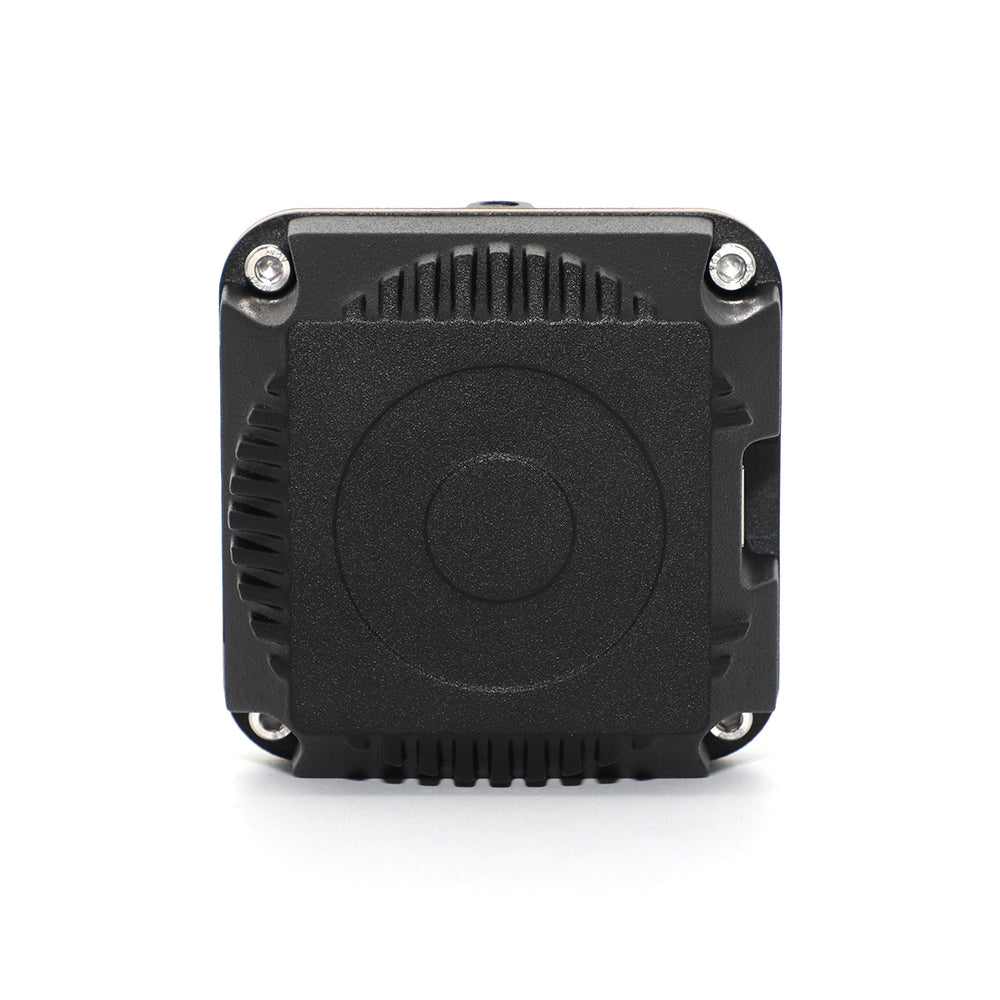

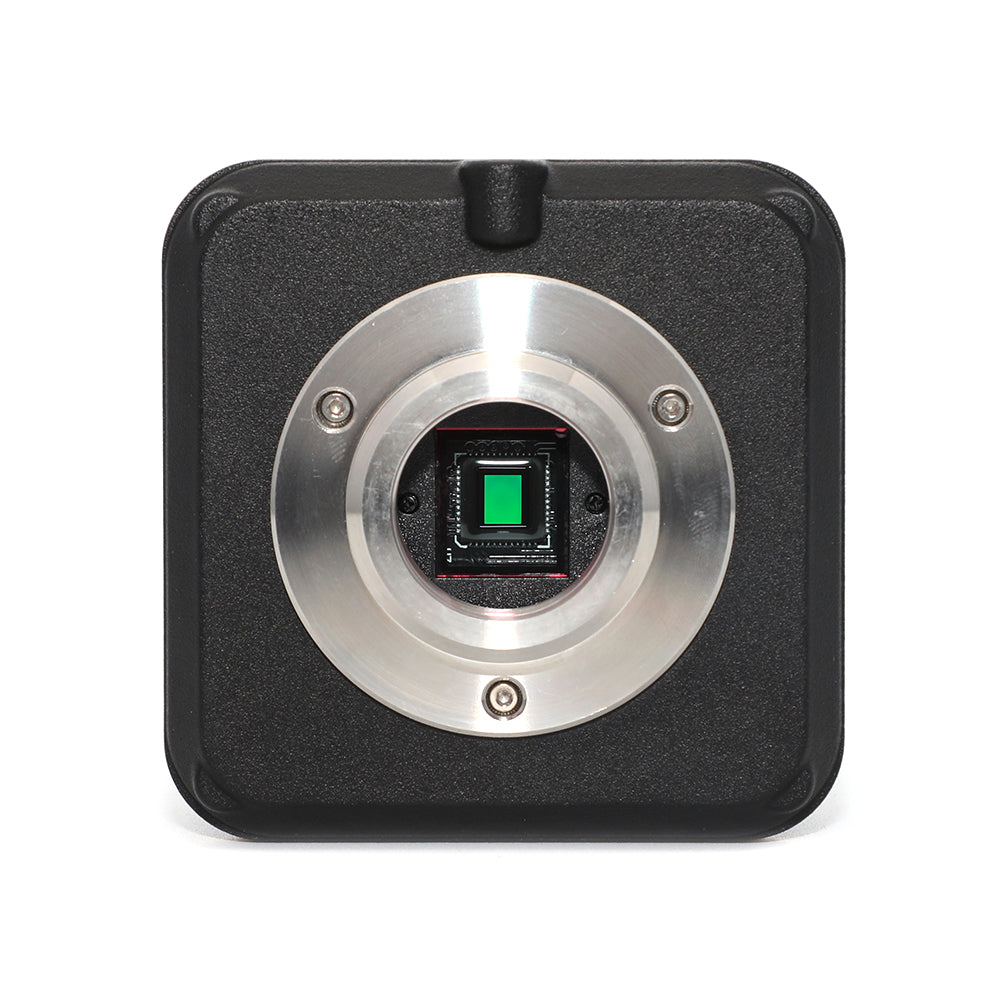

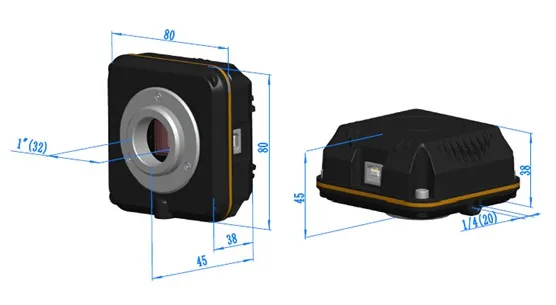

Dimension of LCMOS
The LCMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

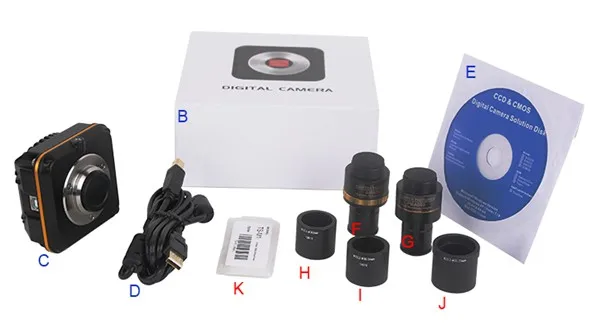

Packing Information of LCMOS
|
Standard Camera Packing List |
|||
|
A |
Carton L:40cm W:36cm H:36cm (16pcs, 12~17Kg/ carton), not shown in the photo |
||
|
B |
Gift box L:16.4cm W:16.4cm H:9.6cm (0.7~0.8Kg/ box) |
||
|
C |
LCMOS series USB2.0 C-mount CMOS camera |
||
|
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
||
|
E |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
||
|
G |
Fixed lens Adapter |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
||
|
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
|
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
If you need optional accessories, please contact me. I will quote additionally.

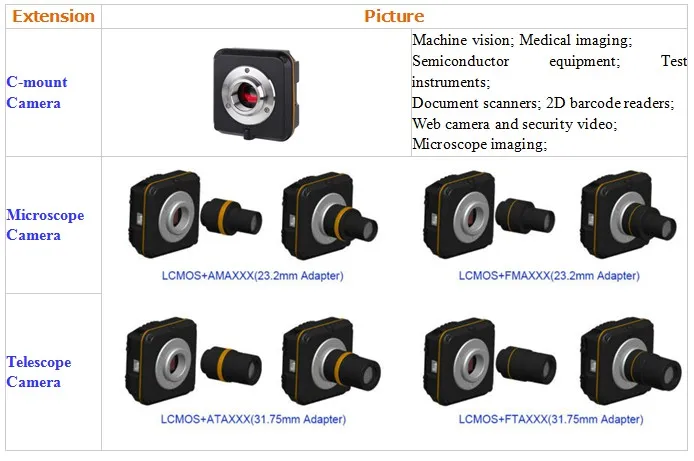

Extension of LCMOS with Microscope or Telescope Adapter
Sample Images Captured with LCMOS Camera(LCMOS03100KPB)
