Feature
-
1)Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
-
2)With different built-in reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
-
3)Can be installed in Zeiss UIS trinocular tube such as Axio series microscope;
-
4)Build of material: anodized aluminum;
-
5)Telecentric optics with low light deficiency;
-
6)Parfocal with different microscope objective lenses;
-
7)Diffraction limited MTF;
-
8)Aperture totally coupled with UIS microscope objective’s exit pupil;
Specification
|
Model |
Photo |
Magnification |
Sensor Size |
Mount Type |
|
60N-T2 4/3" 1.2x(New) |
|
1.20X |
1”, 4/3” |
M42-Mount |
|

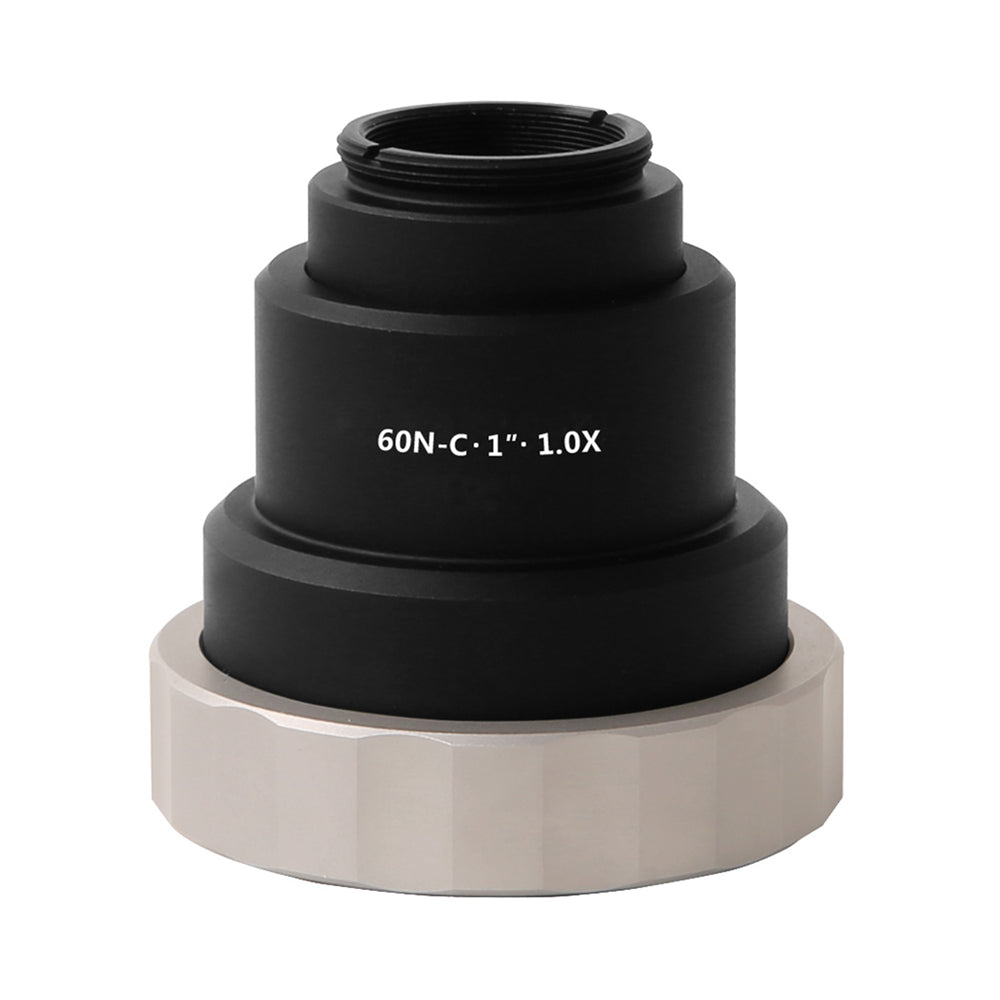

60N-C 1” 1.0x |
|
1.0X |
1”, 2/3” |
C-Mount |
|
60N-C 1"0.8x(New) |
|
0.80X |
1”,2/3” |
C-Mount |
|
60N-C 2/3" 0.63x(New) |
|
0.63X |
2/3”,1/1.8”,1/2” |
C-Mount |
|
60N-C 1/2" 0.5x |
|
0.50X |
1/1.8”,1/2”,1/2.5” |
C-Mount |
Supported Microscope |
Axio Examiner.A1; Axio Examiner.D1; Axio Examiner.Z1;Axio Imager Vario; Axio Imager.A1; Axio Imager.A1m; Axio Imager.A2; Axio Imager.A2m; Axio Imager.D1; Axio Imager.D1 for epi-fluorescence with ApoTome equipment; Axio Imager.D1m; Axio Imager.D2; Axio Imager.D2m;Axio Imager.M1 (Axio Imager.M1 for KS ELISPOT); Axio Imager.M1m; AxioImager.M2; Axio Imager.M2m; Axio Imager.Z1; Axio Imager.Z1 + ApoTome; Axio Imager.Z1m; Axio Imager.Z2; Axio Imager.Z2m;Axio Lab.A1; Axio Lab.A1 FL-LED; Axio Lab.A1 MAT; Axio Lab.A1 Pol;Axio Observer.A1; Axio Observer.A1 Entry; Axio Observer.D1; Axio Observer.D1 Entry; Axio Observer.D1 Mid Range; Axio Observer.Z1; Axio Observer.Z1 High End;Axio Scope.A1; Axio Scope.A1 Pol; Axio Scope.A1 Vario; Axio Vert.A1;Axio Vert.A1 FL; Axio Vert.A1 FL-LED; Axio Vert.A1 MAT;Axio Zoom.V16;PALM CombiSystem Rel. 4.2; PALM MicroBeam; PALM MicroBeam Rel.4.2; PALM MicroTweezers Rel.4.2;Stemi 508 doc; Stemi 508 trino;SteREO Discovery.V12; SteREO Discovery.V8; SteREO Lumar.V12; |
|||
NOTE:
1. 60N-T2 4/3" 1.2x Adapter is M42 Mount, it is not C mount.
2. The price includes only one adapter, please select the appropriate magnification of adapter when you place order
