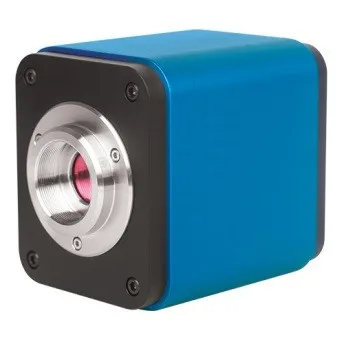

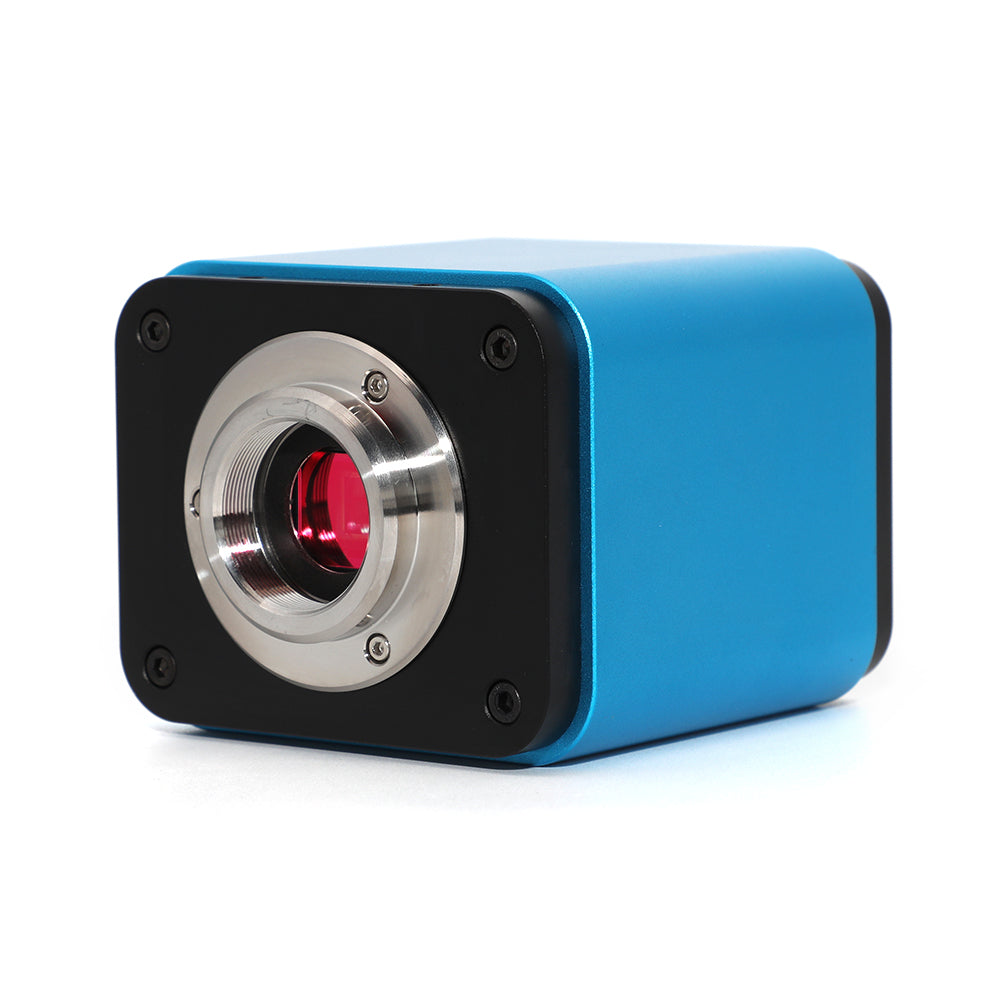

XFCAM1080PHB/PHD’s Basic Characteristic
XFCAM1080PHB/PHD is a multiple interfaces (HDMI-Compatiable+WiFi+SD card, so X here means multiple interfaces) CMOS camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI-Compatiable+WiFi are used as the data transfer interface to HDMI-Compatiable display or computer.
For HDMI-Compatiable output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI-Compatiable screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
In HDMI-Compatiable output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera.
The XFCAM1080PHB/PHD’s basic characteristic is as follows:
1） All in 1( HDMI-Compatiable+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
2）Auto/Manual focus with the movement of the sensor;
3） For HDMI-Compatiable application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and control can also be realized by the XCamView;
4） 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
5） For HDMI-Compatiable application, 2.0M resolution image(1920*1080 XFCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
6） With the USB WiFi adapter, the XFCAM1080PHD can be used as WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture image. support plug and play application;
7） Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);
8） With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
9） XFCAM1080PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
The possible applications of XFCAM1080PHB/PHD are as follows:
1) Scientific research, education (teaching, demonstration and academic exchanges);
2) Digital laboratory, medical research;
3) Industrial visual (PCB examination, IC quality control);
4) Medical treatment (pathological observation);
5) Food (microbial colony observation and counting);
6) Aerospace, military (high sophisticated weapons);
XFCAM1080PHB/PHD Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
XFCAM1080PHD XF1080D |
1080P/2M/Sony IMX185(C) 1/1.9"(7.20x4.05) |
3.75x3.75 |
1120mv with 1/30s 0.15mv with 1/30s |
60/1920*1080 25/1920x1080 |
1x1 |
0.06ms~918m |
C: Color; M: Monochrome;
|

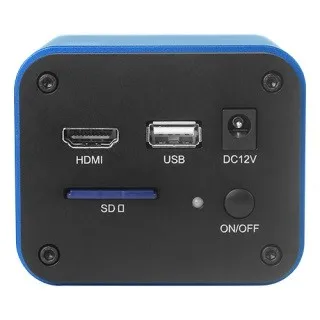

Interface & Button Functions |
||||
|
|
USB |
USB Mouse/USB WiFi Adapter |
||
|
HDMI-Compatiable |
HDMI-Compatiable Output |
|||
|
DC12V |
12V/1A Power in |
|||
|
SD |
SD Card Slot |
|||
|
ON/OFF |
Power On/off Switch |
|||
|
LED |
Power Indicator |
|||
|
Other Specification for HDMI-Compatiable Output |
||||
|
UI Operation |
With USB Mouse to operate on the embedded XCamView |
|||
|
Image Capture |
JPEG Format with 2M Resolution in SD Card (XFCAM1080PHD) |
|||
|
Video Record |
ASF Format 1080P 30fps in SD Card(8G) |
|||
|
Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
|||
|
Toolbar |
Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information |
|||
|
Other Specification for WiFi Output |
||||
|
UI Operation |
ToupView or ToupLite on Windows/Linux/OSX/Android Platform |
|||
|
WiFi Performance |
802.11n 150Mbps; RF Power 20dBm(Maximum) |
|||
|
Maximum Connected Devices |
3~6(According to the Environment and Connection Distance) |
|||
|
White Balance |
Auto White Balance |
|||
|
Color Technique |
Ultra-FineTMColor Engine (WiFi) |
|||
|
Capture/Control API |
Standard SDK for Windows/Linux/Mac(WiFi) |
|||
|
Recording System |
Still Picture or Movie (WiFi) |
|||
|
Software Environment (for USB2.0 Connection) |
||||
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
|||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|||
|
Memory:4GB or More |
||||
|
USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer) |
||||
|
Display:19” or Larger |
||||
|
CD-ROM |
||||
|
Operating Environment |
||||
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|||
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|||
|
Operating Humidity |
30~80%RH |
|||
|
Storage Humidity |
10~60%RH |
|||
|
Power Supply |
DC 12V/1A Adapter |
|||
XFCAM1080PHD and Microscope
XFCAM1080PHD+ Microscope+Display
XCamView UI for Mouse Control

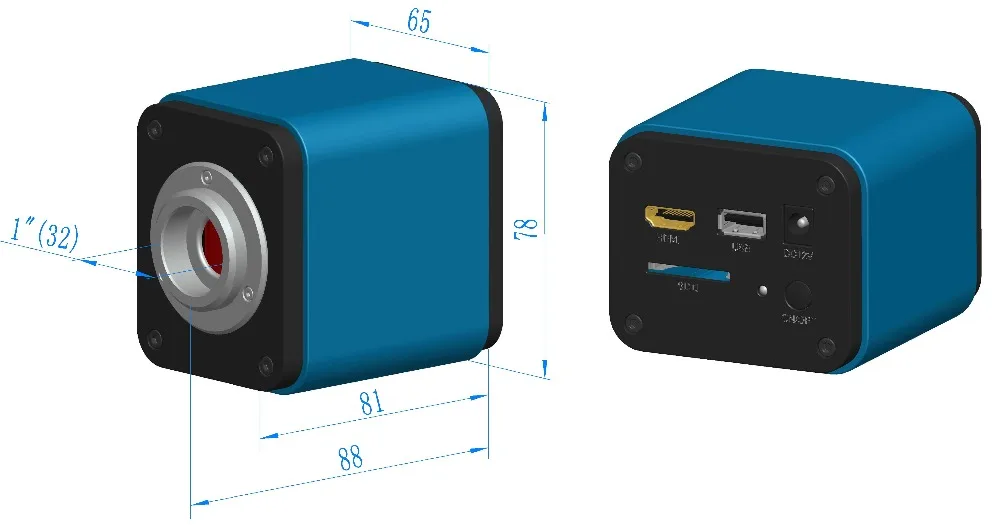

Dimension ofXFCAM1080PHD
Packing Information forXFCAM1080PHD
|
Standard Packing List |
||||
|
A |
Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) |
|||
|
B |
XFCAM1080PHD |
|||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
|||
|
D |
HDMI-Compatiable Cable |
|||
|
E |
USB Mouse |
|||
|
F |
Wireless network adapter with USB interface |
|||
|
G |
CD (Driver & utilities software, Ø12cm) |
|||
|
Optional Accessory |
||||
|
H |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108008/ATA037 |
|||
|
I |
Fixed lens Adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 |
|||
|
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
||||
|
J |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
|||
|
K |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
|||
|
L |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
||
|
M |
SD Card(4G or 8G) |
|||
Extension ofXCAM1080PHB/PHDwith Microscope or Telescope Adapter
