X5FCAM4K8MPA Camera
DSers
The X5FCAM4K8MPA is a camera designed by ToupTek that includes multiple modes of output (HDMI/WiFi/USB), where X in ‘X5FCAM’ means a CMOS camera with multiple interfaces, and F means auto focus. It uses ultra-high- performance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and subsequent research.
Enhanced with an embedded ARM core, this camera integrates various functions inside. With the help of a USB mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.
The X5FCAM4K8MPA camera comes with the built-in AutoFocus system, which can realize AutoFocus on specific areas of the sample.
By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera's hardware with the software ToupView or ToupLite. The X5FCAM4K8MPA camera can be used for tool field inspection, microscope observation, etc.
The basic characteristic is listedas below:
-
Sony STARVIS 2 back-illuminated CMOS sensor
-
4K HDMI/ WiFi / USB multiple video synchronous outputs
-
4K/1080P auto switching according to monitor resolution
-
Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
-
SD card/USB flash drive for captured image and video storage, support local preview and playback
-
New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF and other functions
-
u Provide multiple focusing methods, and the size of the focusing area can be modified; Provide AF+EDF, facilitating the synthesis of high depth of field images in multiple focus areas at high magnification
-
Excellent ISP with local tone mapping and 3D denoising
-
Provide real-time video EDF function and real-time video WDR output function
-
Provide two sets of default ISP parameters for biological microscope and stereo microscope
-
Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
-
ToupView/ToupLite software for PC
-
iOS/Android applications for smartphones or tablets
X5FCAM4K8MPA CameraDatasheet and Functions
|
Order Code |
Sensor&Size(mm) |
Pixel(μm) |
GSensitivity DarkSignal |
SensorOutput (FPS/Resolution) |
Binning |
Exposure(ms) |
|
X5FCAM4K8MPA |
Sony IMX678(C)1/1.8"(7.68x4.32) |
2.0x2.0 |
3541mv with1/30s0.15mv with1/30s |
60@3840*2160 |
1x1 |
0.019~1000 |
|
CameraModel |
Video Saving(FPS/Resolution) |
HDMI2.0(FPS/Resolution) |
USB3.0(FPS/Resolution) |
WiFi(FPS/Resolution) |
|
X5FCAM4K8MPA |
60@3840*2160 60@1920*1080 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 60@1280*720 |
|

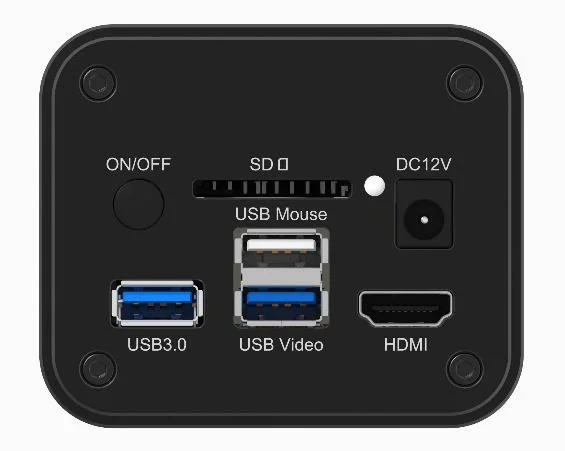

Function Description |
||
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software |
|
|
USB3.0 |
Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time |
|
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
|
HDMI |
Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
|
LAN |
LAN port to connect router and switch to transfer video |
|
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
|
ON/OFF |
Power switch |
|
|
LED |
LED status indicator |
|
|
DC12V |
Power adapter connection (12V/1A) |
|
|
Video Output Interface |
Function Description |
|
|
HDMI Interface |
Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
|
|
WiFi Interface |
Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
|
|
USB Video Interface |
Connecting USB Video port of PC for video transfer H264/MJPEG format video |
|
|
Other Function |
Function Description |
|
|
Video Saving |
Video format：8M(3840*2160) H264/H265encoded MP4file Video saving frame rate:72fps(X7CAM4K8MPA); 75fps(X7CAM4K8MPB); 60fps in low delay mode |
|
|
Image Capture |
8M (3840*2160)JPEG/TIFFimage in SD card or USB flash drive(Default SD card priority, priority can be modified in settings) |
|
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
|
ISP |
Exposure(Automatic /Manual Exposure)/ Gain，White Balance(Manual /Automatic /ROIMode)，Sharpening，3D Denoise，Saturation Adjustment，Contrast Adjustment，Brightness Adjustment，Gamma Adjustment，Color to Gray，50HZ/60HZ Anti-flicker Function |
|
|
Image Operation |
Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Browser(including Picture Browsing ,Video Playback , Video Compare , Picture Compare), Measurement Function |
|
|
Embedded RTC(Optional) |
To support accurate time on board |
|
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German /Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
|
|
Software Environment under Network/USBVideo Output |
||
|
White Balance |
Auto White Balance |
|
|
Color Technique |
Ultra-Fine Color Engine |
|
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
|
Recording System |
Still Picture or Movie |
|
|
Operating System |
Microsoft® Windows®XP/Vista / 7 / 8/ 8.1 /10(32 & 64 bit) OSx(MacOS X) Linux |
|
|
PCRequirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory: 4GB or More |
||
|
Ethernet Port: RJ45 Ethernet Port |
||
|
Display:19” or Larger |
||
|
CD-ROM |
||
|
Operating Temperature (in Centidegree) |
-10°~50° |
|
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
DC 12V/1A Adapter |
|

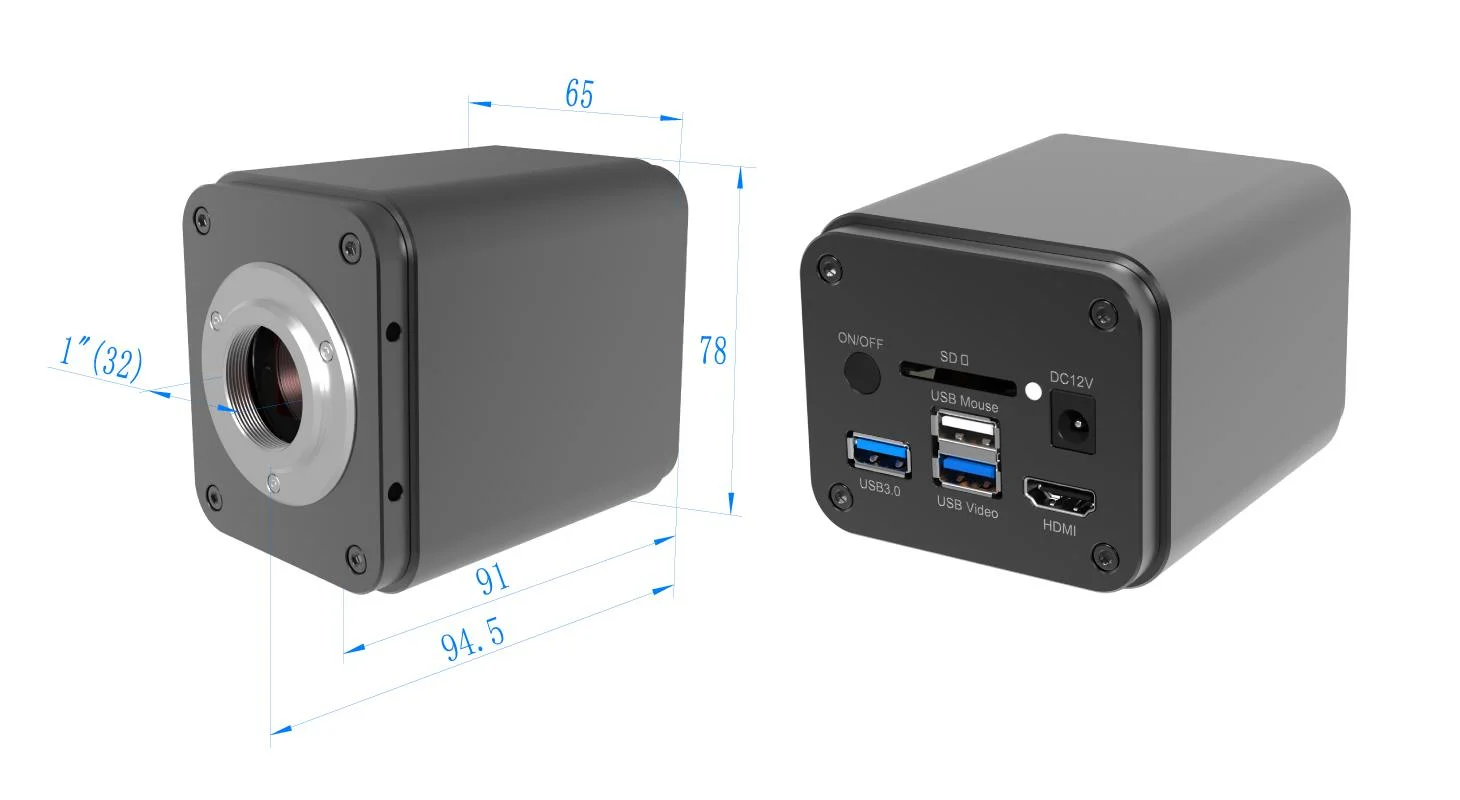

Dimension of X5CAM4K Series Camera
Dimension of X5FCAM4K Series

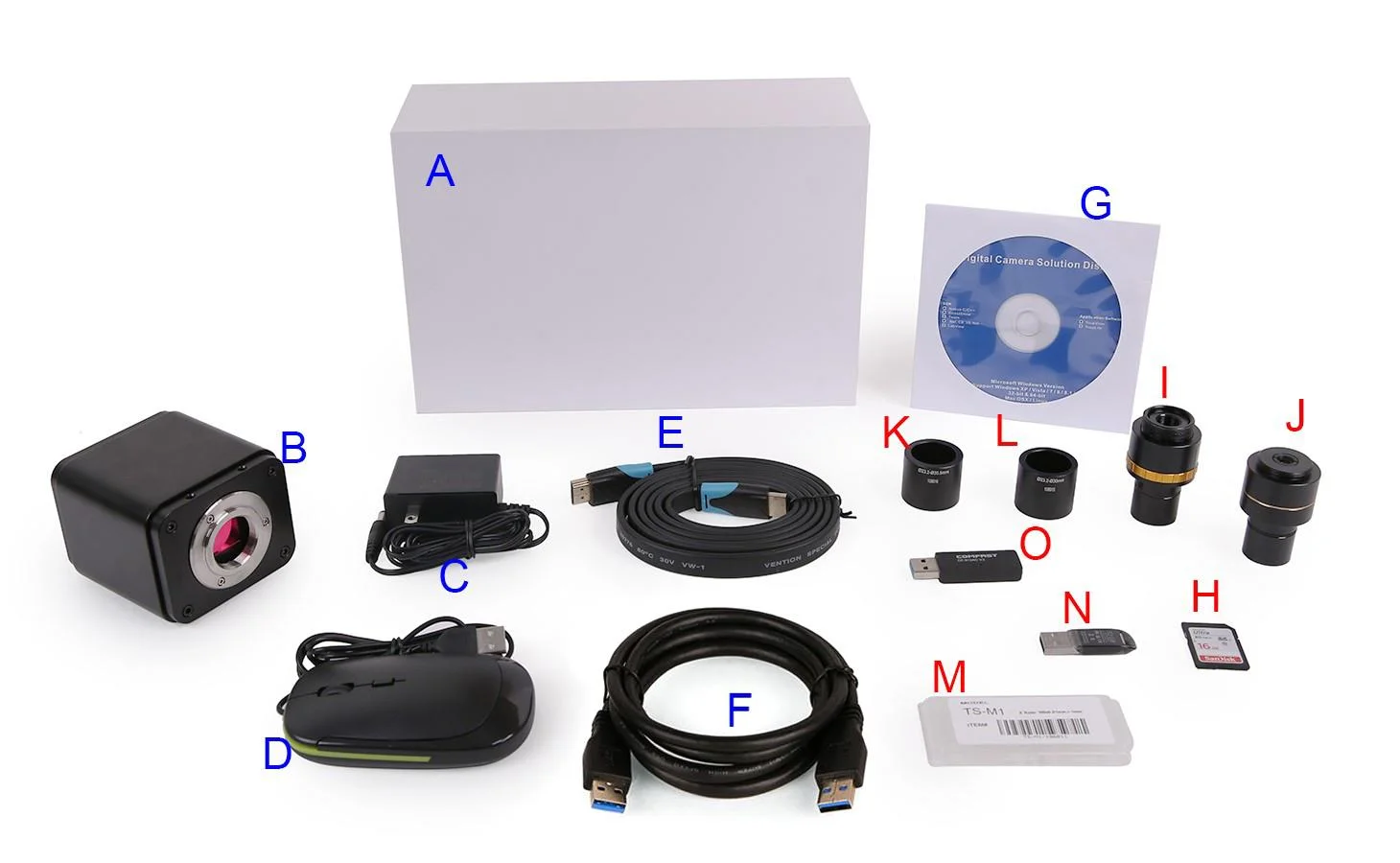

X5FCAM4K Series Camera Packing Information
|
Standard Packing List |
|||
|
A |
Gift box : L:25.5cmW:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) |
||
|
B |
X5FCAM4K8MPA Camera |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U- 12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E- 12V1A(MSA-C10001C12.0- 12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
|
D |
USB Mouse |
||
|
E |
|
|
|
|
F |
USB3.0 A male to Amale gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
SD Card(16G or above; Speed: class 10) |
||
|
I |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
|
J |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
|
Note: For I and J optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
K |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
L |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X, Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
|
N |
USB flash drive |
|
|
|
O |
USB WiFi adapter |
||
If you need optional accessories, you can contact me for price.
