The Application of the XCAMLITE4K Series Camera
Figure1‑1 The XCAMPRO Camera
The XCAMLITE4K series camera is intended to be used for the acquisition of digital images from the stereo microscope and biological microscope. The basic characteristic is listed as below:
-
Sony Exmor back illuminated CMOS sensor
-
4K HDMI/USB multiple video outputs
-
4K/1080P auto switching according to the display resolution
-
SD card for the captured image and video storage
-
Embedded XCamView for the control of the camera
-
With strong ISP and other related processing functions
-
ToupView/ToupLite software for PC
-
ToupLite software for MAC
XCAMLITE4K Series Camera’s Datasheet(2)
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity |
FPS/Resolution |
Binning |
Exposure(ms) |
|
XCAMLITE4K8MPA |
Sony 1/1.8"(7.68x4.32) |
2.0x2.0 |
505mv 0.1mv |
30@3840*2160(HDMI) 20@3840*2160(USB) |
1x1 |
0.04~1000 |
|
XCAMLITE4K8MPB |
Sony IMX485(C) 1/1.2"(11.14x6.26) |
2.9x2.9 |
2188mv with 1/30s 0.39mv with 1/30s |
30@3840*2160(HDMI) 20@3840*2160(USB) |
1x1 |
0.04~1000 |
Available Ports on the Back of the Camera Body
Figure3‑1Available Ports on the Back Panel of the Camera Body
|
Interface |
Function Description |
|
USB Mouse |
Connect USB mouse for easy operation with embeddedXCamViewsoftware; |
|
USB Video |
Connect PC or other host device to realize video image transmission; |
|
HDMI |
Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor; |
|
DC12V |
Power adapter connection (12V/1A); |
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
|
LED |
LED status indicator; |
|
ON/OFF |
Power switch; |
XCAMLITE4K Series Camera Function
Video Output
|
Video |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4standard; 30fps@4K or 30fps@1080P; |
|
USB Video Interface |
Connecting USB port ofPC for MJPEG format video; |
Image Capture and Video Saving in SD Card
|
Function Name |
Function Description |
|
Video Saving |
Video format：8M(3840*2160) H264/H265 encoded MP4 file; Video saving frame rate：30fps; |
|
Image Capture |
8M (3840*2160) JPEG/TIFFimage in SD card; |
|
Measurement Saving |
Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
ISP Function
|
Function Name |
Function Description |
|
Exposure / Gain |
Automatic/Manual Exposure |
|
White Balance |
Manual/Automatic/ROI Mode |
|
Sharpening |
Supported |
|
3D Denoise |
Supported |
|
Saturation Adjustment |
Supported |
|
Contrast Adjustment |
Supported |
|
Brightness Adjustment |
Supported |
|
Gamma Adjustment |
Supported |
|
50HZ/60HZ Anti-flicker Function |
Supported |
Image Operation Function
|
Function Name |
Function Description |
|
Zoom In/Zoom Out |
Up to 10X |
|
Mirror/Flip |
Supported |
|
Freeze |
Supported |
|
Cross Line |
Supported |
|
Overlay |
Supported |
|
Embedded Files Browser |
Supported |
|
Video Playback |
Supported |
|
Measurement Function |
Supported |
Other Functions
|
Function Name |
Function Description |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Supported |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
XCAMLITE4K Series CameraPacking Information(TBD)
Figure5‑1 The XCAMLITE4K Series Camera Packing Information
Camera Working Standalone with Built-in XCamView Software

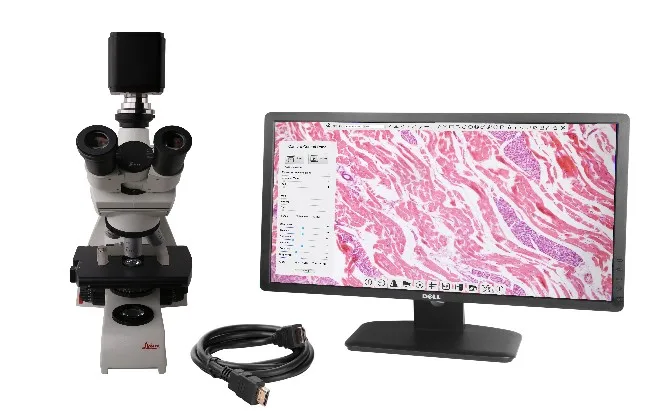

Figure7‑1XCAMLITE4K Series Camera with the HDMI Displayer
