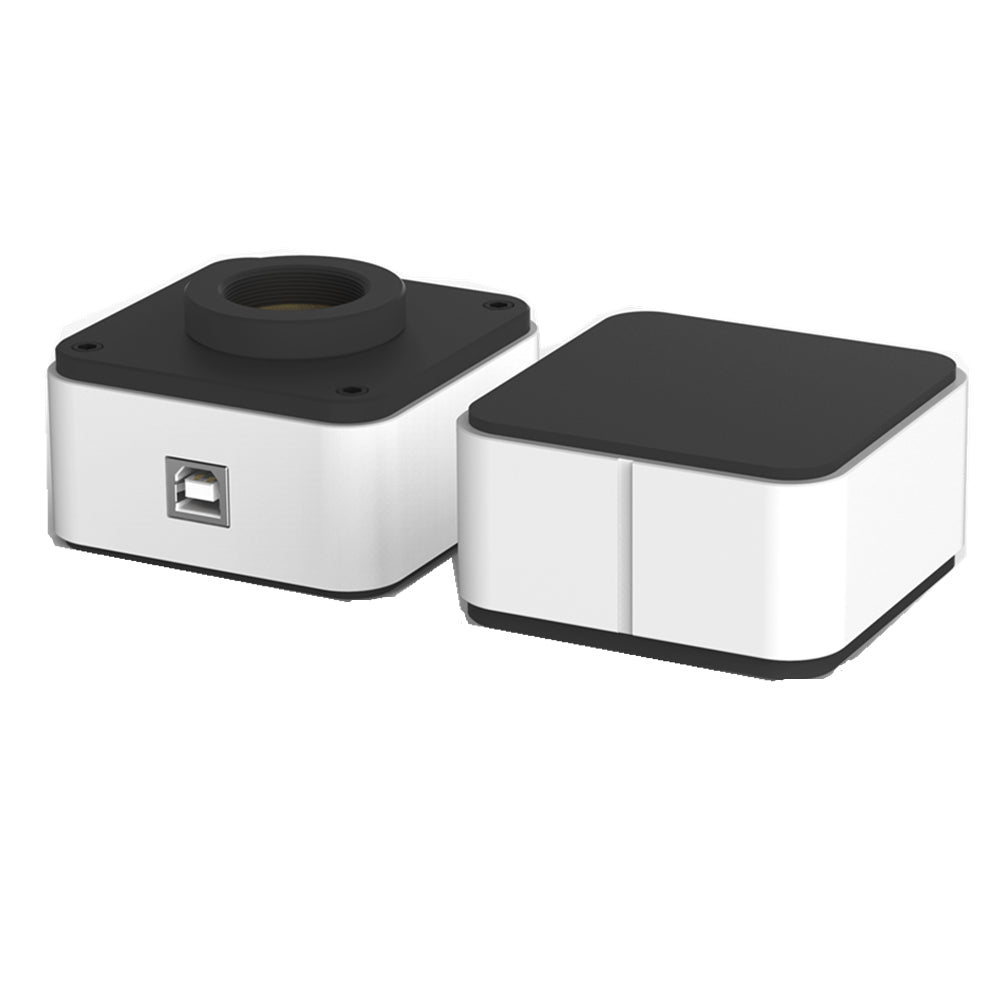

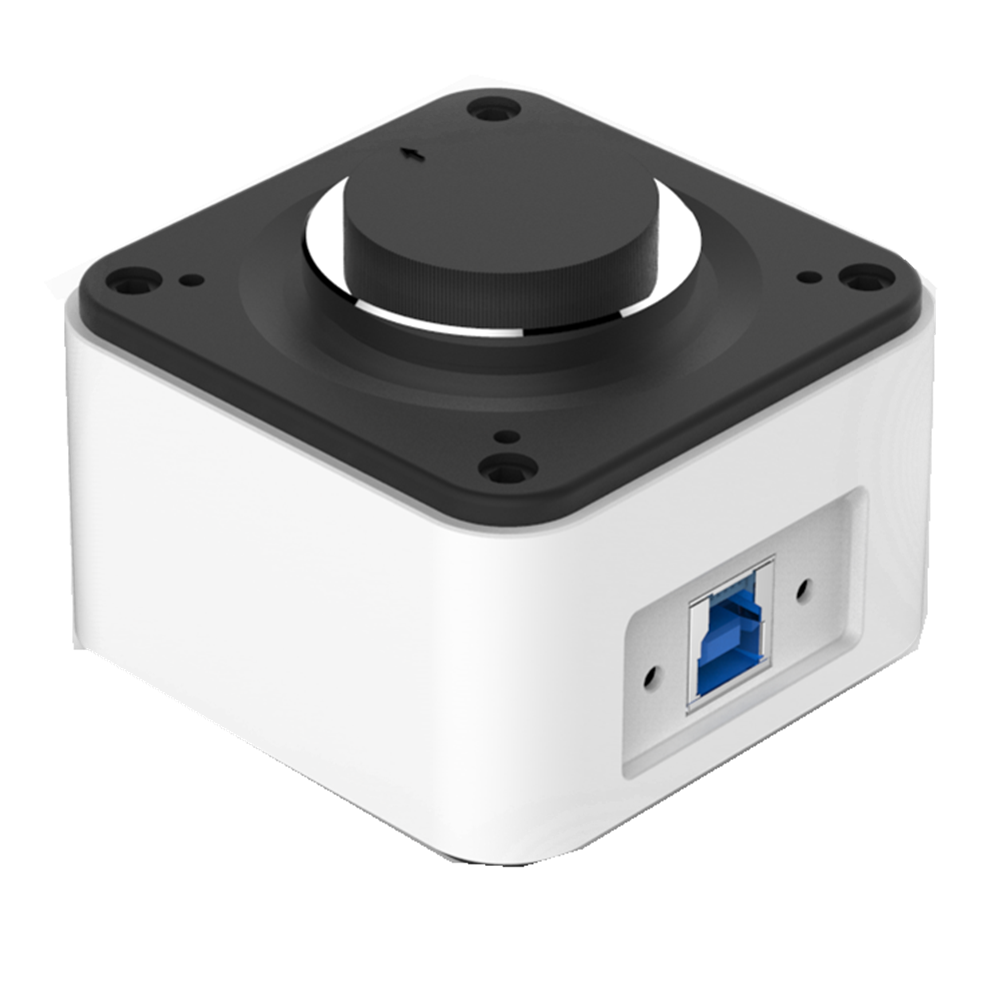

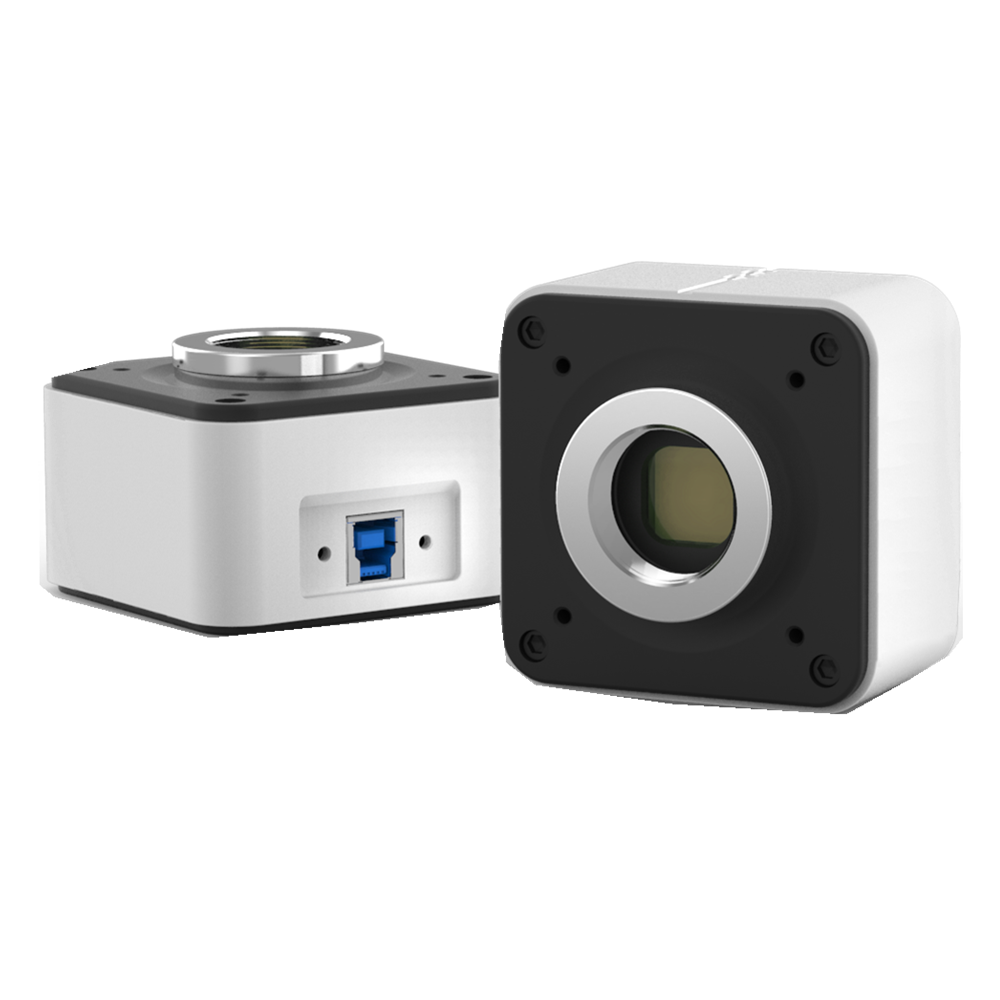

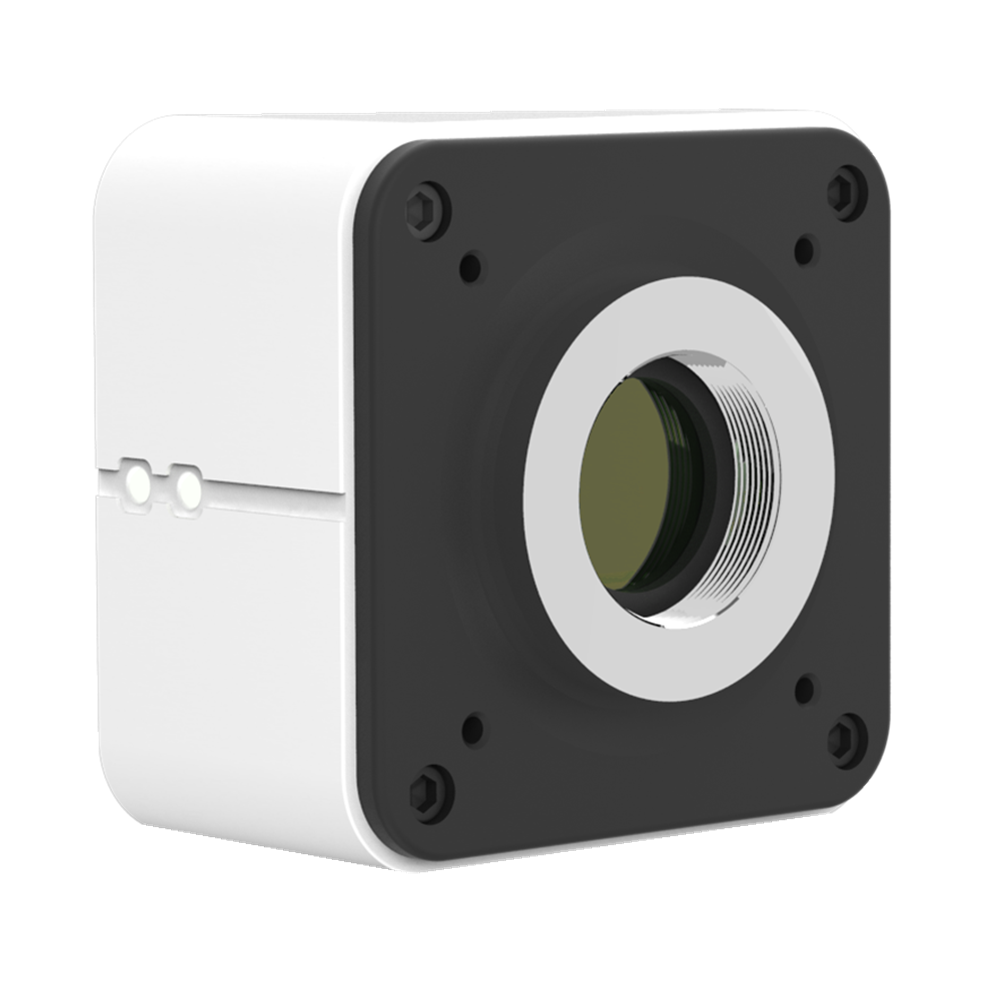

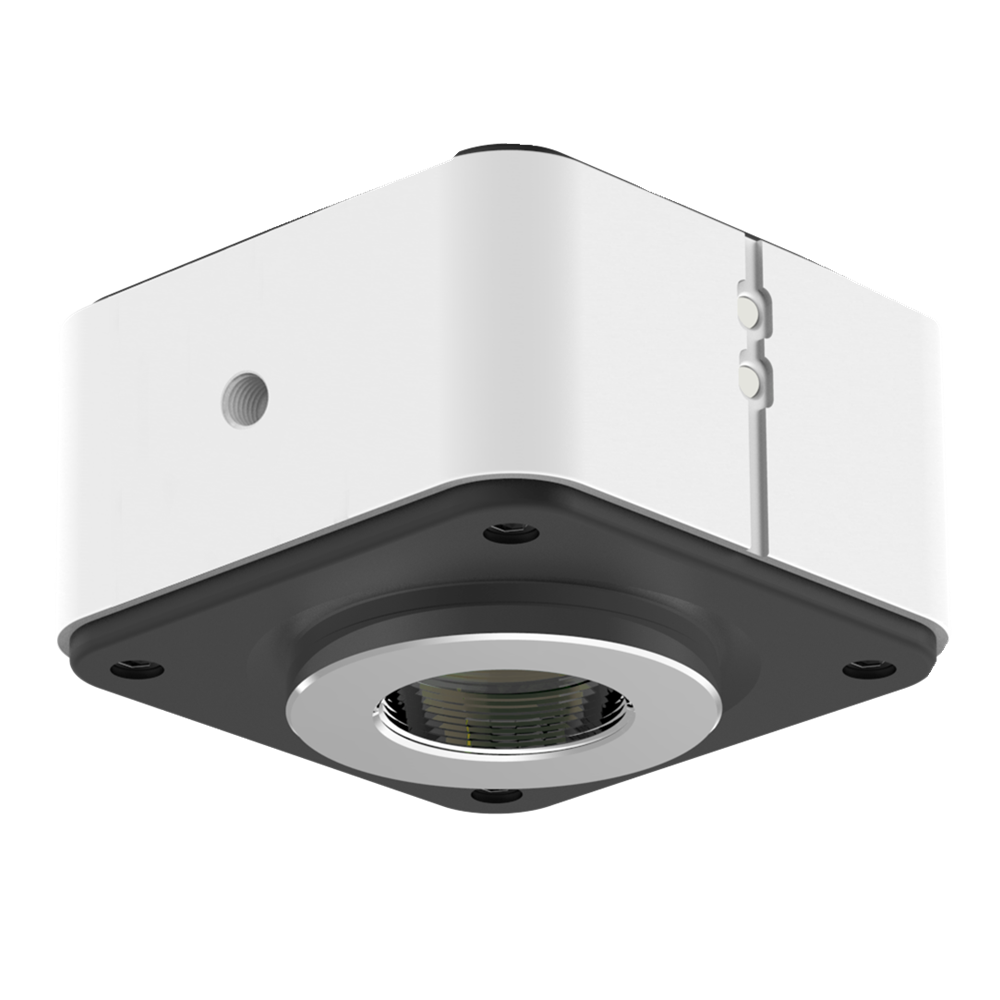

MIchrome 6
"Real-time" image stitching
MIchrome 6 is equipped with Tucsens new computational imaging software, Mosaic 2.1, which provides a "real-time image stitching" function. It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!
"Real-time" depth-of-field fusion
MIchrome 6 also provides real-time depth of field fusion. Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.
Efficient image acquisition - editing - measurement - report output
From the user's point of view, redefining the image acquisition - editing - measurement - report output workflow process, taking into account the best operating procedures, greatly saves the operating time, effectively improving productivity.
Excellent imaging performance for brightfield, fluorescence and polarized imaging needs
The use of Tucsen's core ISP color-interpolation algorithm effectively corrects the color deviation of the sensor's spectral response, to simulate the human eye's sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.
Sony professional CMOS sensor
Uses a Sony 6 megapixel CMOS 1/1.8" sensor-IMX178, with 2.4 x 2.4 μm pixels. The resolution of the captured image can reach 3072 x 2048. Images taken at low magnification readily resolved.
Stable high-speed transmission
USB 3.0 high-speed transmission interface, simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 40 fps.
|
Sensor Model |
IMX178LQJ-C |
|
Sensor Type |
CMOS |
|
Sensor Size |
1/1.8" |
|
Color/Mono |
Color |
|
Pixel Size |
2.4x2.4(μm) |
|
Resolution |
3072(H) x 2048(V) |
|
Frame |
41fps(3072x2048) 41fps(1536x1024 2x2bin) |
|
Shutter Mode |
Rolling |
|
Exposure Time |
0.13ms-15s |
|
Automatic Set |
Exposure, Color Scale, White Balance |
|
Manually Set |
Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction |
|
Color Temperature |
2000-15000K |
|
ADC Depth |
12Bit |
|
PC Software |
Mosaic V 2.0 |
|
Picture Format |
JPG / PNG / TIFF |
|
Operating System |
Windows, Mac |
|
PC Configuration |
CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more, OS: Windows 7/8/10 64bit |
|
Multiple Cameras |
Supports 4 Cameras Simultaneously in SDK |
|
Data Interface |
USB3.0 |
|
Optical Interface |
Standard C Mount |
|
Camera Size |
68*68*47mm |
|
Camera Weight |
330g |
