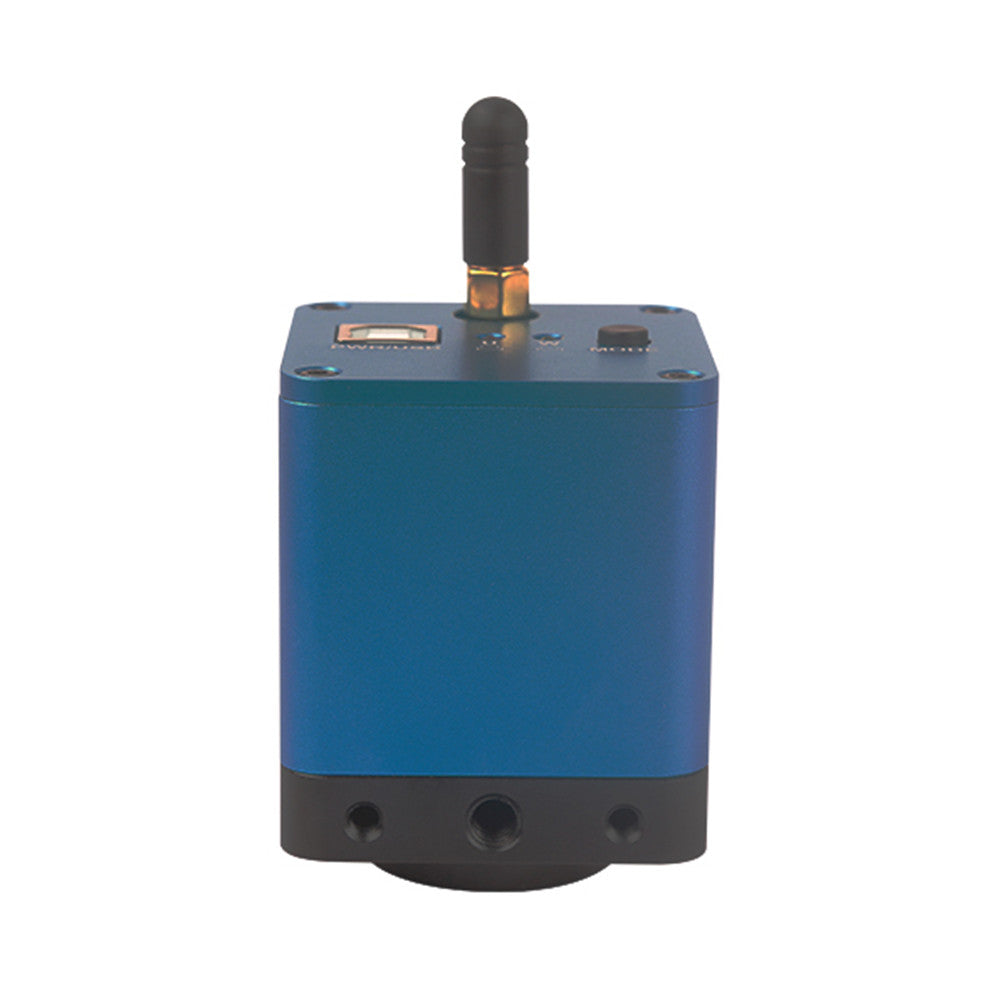

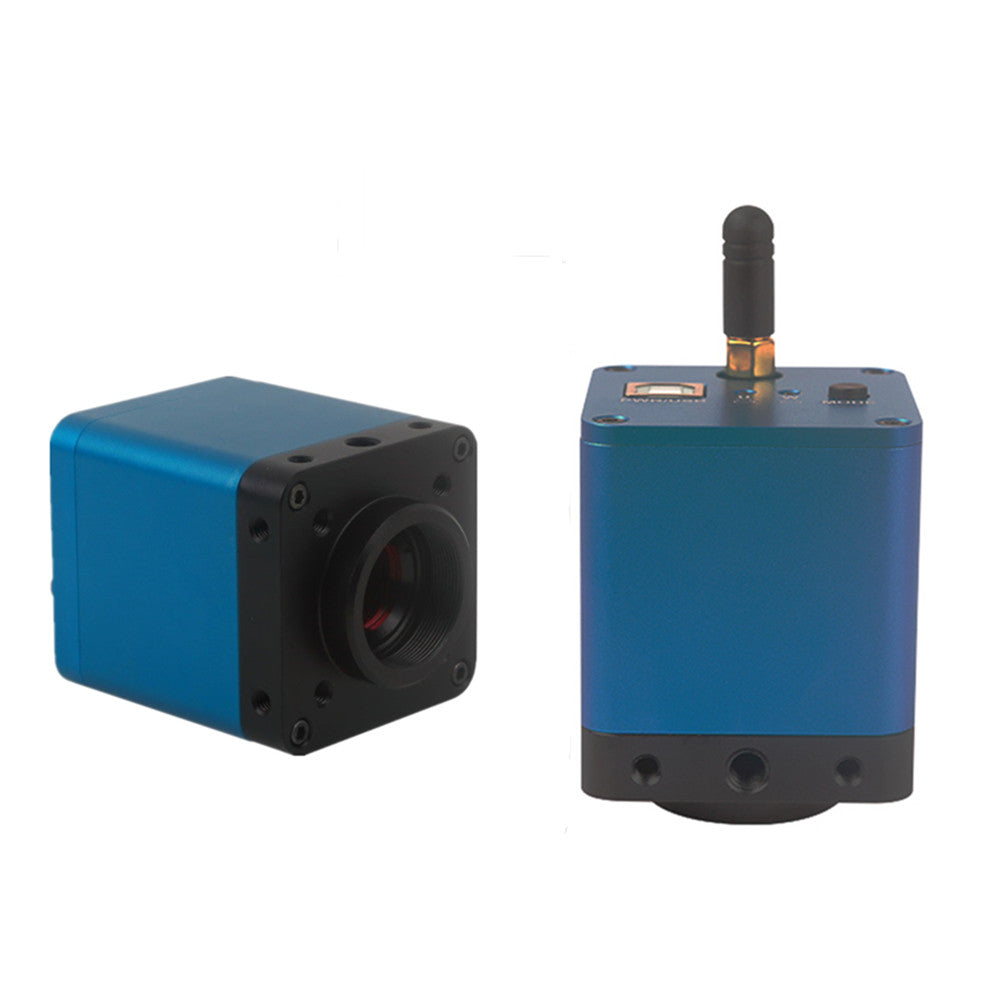

WUCAM Series C-mount WiFi+USB CMOS Camera
WUCAM’s Basic Characteristic

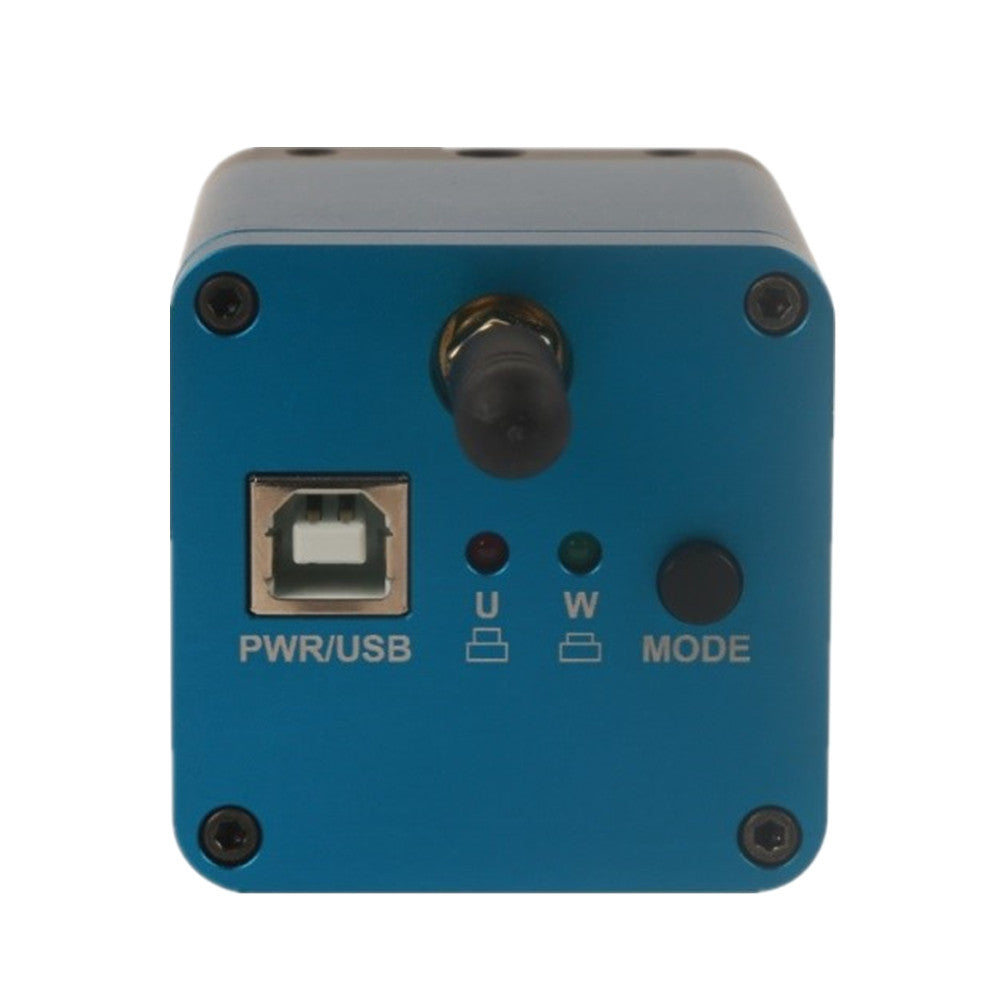

WUCAM is a camera that has the WiFi output and USB output. An on-camera switch is used to switch between the WiFi output and USB output.
When WiFi output is available, this camera is used as a WiFi camera and could be connected to mobile devices, such as smart phones, pads and computers.
It could work with ToupView app on iOS, Android and windows platform. More than 6 users could connect the camera simultaneously by WiFi connection.
When USB output is available, this camera is used as a USB camera and could support UVC standard. The camera could be used with ToupView or other 3rd part software which could support UVC camera.
The basic characteristic of WUCAM series camera is as follows:
-
C-Mount camera has 25.4 mm or 1-inch diameter with 32 threads per inch;
-
Scientific research grade camera with Aptina CMOS sensor;
-
Switchable USB+WiFi data interface;
-
Send MJPEG encodec high-resolution images from camera to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows
operating systems; -
Streams images to several devices simultaneously;
-
Send MJPEG encodec high-resolution images from camera to USB-enabled computer with UVC standard protocol;
-
Ultra-Fine color engine with perfect color reproduction capability;
-
With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system);
-
Custom programmable with SDK provided(Windows/Linux/OS)(WiFi);
WUCAM Datasheet
|
Order Code |
Sensor Size(mm) |
Pixel(μm) |
GResponsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure(ms) |
|
WUCAM0720PA |
720P/MT9P001 (C) |
2.2x2.2 |
0.53 V/lux-sec 66.5dB 40dB |
30@1280x720 |
2x2 |
Auto/Manual Exposure |
C: Color; M: Monochrome;
|
Other Specification for WCAM Camera |
||
|
Output Interface |
USB or WiFi(on Camera Switch) |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
|
White Balance |
Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
|
Recording System |
Still Picture and Movie |
|
|
Cooling System* |
Natural |
|
|
Maximum Connected |
6~10 |
|
|
Operating Environment |
||
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
USB Charger USB port from PC |
|
|
Software Environment |
||
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone |
|
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory:2GB or More |
||
|
WiFi Adapter with DHCP Enabled |
||
|
Display:17” or Larger |
||
|
CD-ROM |
||
|
PAD |
IPAD or PAD with Android System |
|
|
Mobile Phone |
IPhone or Smart Phone with Android System |
|
|
|
|
|

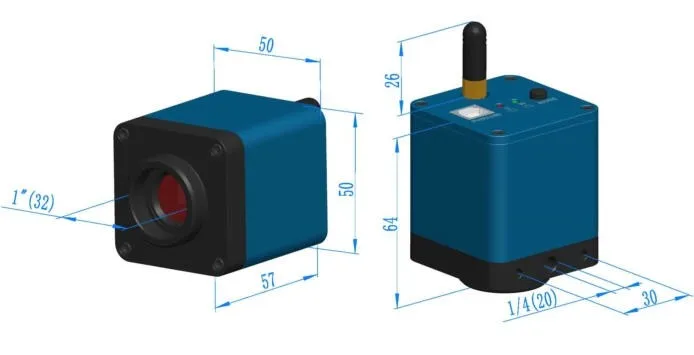

Dimension of WUCAM Series Camera
The WUCAM body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high-quality IR-CUT filter to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

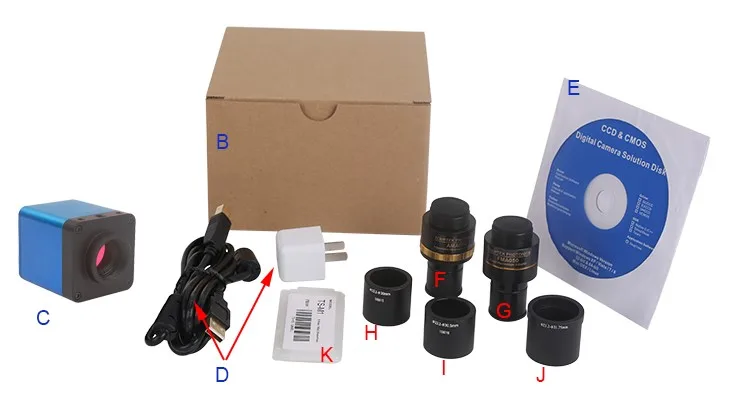

Packing Information of WUCAM Series Camera
|
Standard Camera Packing List |
|||
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 11.4~14Kg/ carton, 0.045m3), not shown in the photo |
||
|
B |
Gift box L:15cm W:15cm H:10cm (0.46~0.47Kg/ box) |
||
|
C |
WUCAMseries WiFi+USB2.0 C-mount CMOScamera |
||
|
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m(for PC power only) or with |
||
|
E |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
||
|
G |
Fixed |
C-mount to Dia.23.2mm eyepiece Tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece Tube |
108011/FTA037 |
||
|
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
|
K |
Calibration |
106011/TS-M1(X=0.01mm/100Div.); |
|
If you need optional accessories, please contact me. I will quote additionally.
