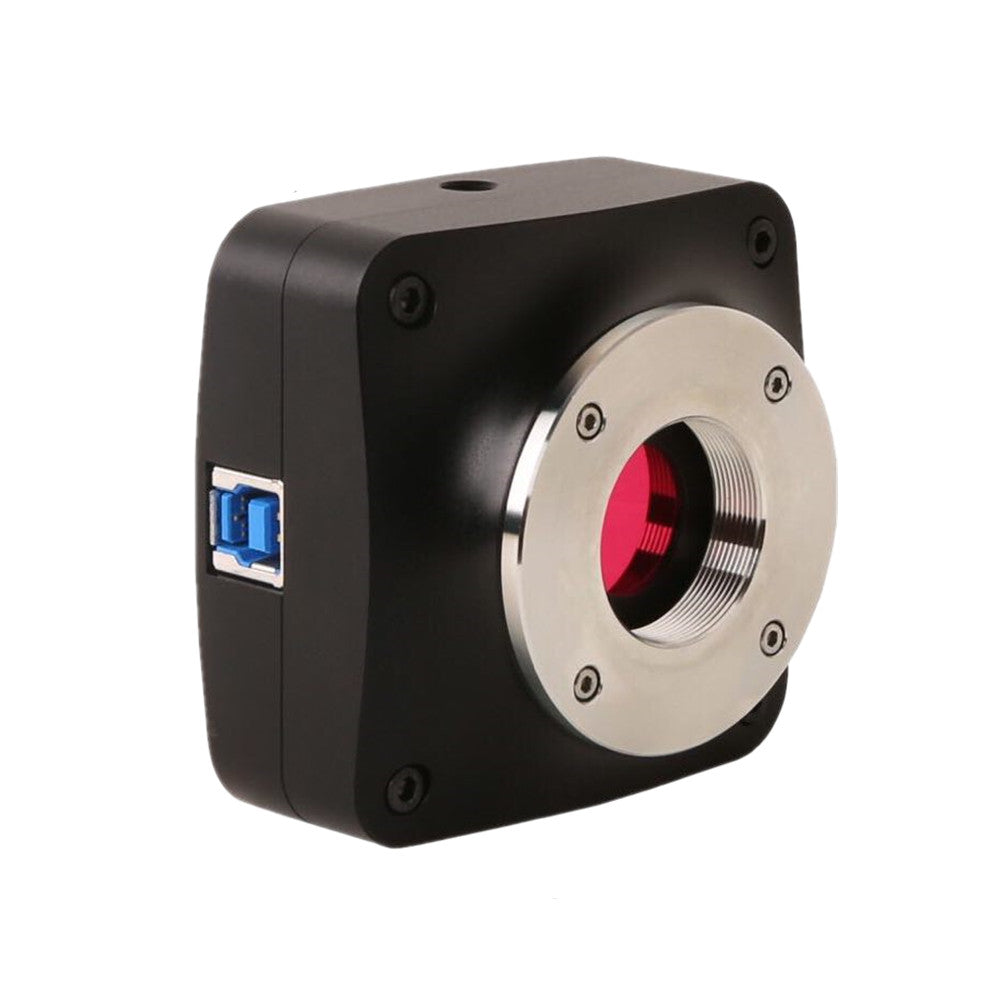

E3ISPM Basic Characteristic
E3ISPM adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.
E3ISPM hardware resolutions range from 3.1M to 20M and come with the integrated CNC aluminum alloy compact housing.
E3ISPM integrated with 12 bit Ultra-fineTMHardware Image Signal Processor Video Pipeline(Ultra-fineTMHISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTMHISP VP and greatly accelerating the processing speed.
E3ISPM comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The E3ISPM can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
The basic characteristic of E3ISPM cameras are as follows:
1） SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
2） Real-time 8/12bit depth switch(depending on sensor);
3） Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 15 frames for 20M Resolution);
4） Super high sensitivity up to 1120mV(IMX264);
5） Ultra low noise and low power dissipation by using column-parallel A/D conversion;
6） With hardware resolution among 3.1M to 20M;
7） Rolling Shutter or Global Shutter;
8） Standard C-Mount camera;
9） CNC aluminum alloy housing;
10） With advanced video & image processing application ToupView;
11） Providing Windows/Linux/Mac OS multiple platforms SDK;
12） Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
E3ISPM Datasheet
|
Order Code |
Sensor & |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
E3ISPM08300KPD |
8.3M/IMX585(C) 1/1.2”(11.14x6.26) |
2.9x2.9 |
5970(mV/lx/s) |
45@3840x2160 70@1920x1080 |
1x1 2x2 |
0.02ms~15s |
|
Other Specification for E3ISPM Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-fineTMHISPVP /NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft®Windows®XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|

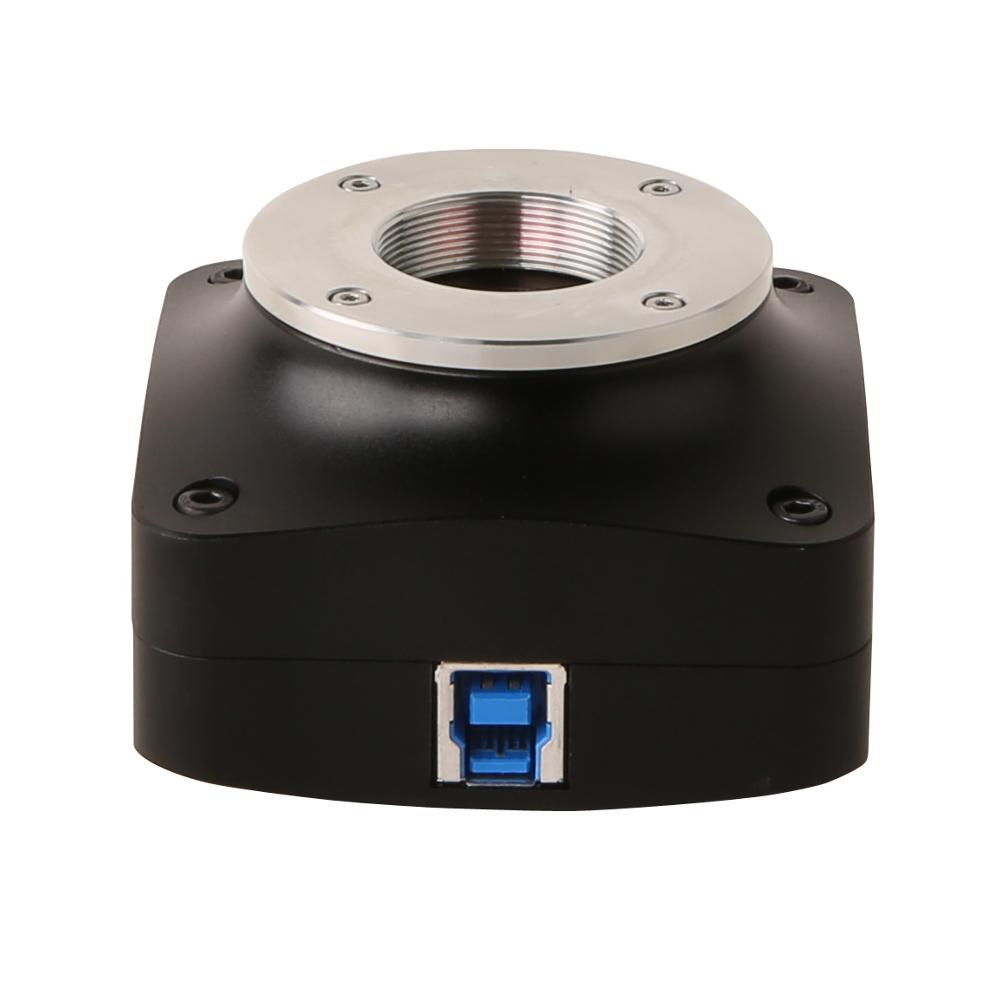

Dimension of E3ISPM
The E3ISPM body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

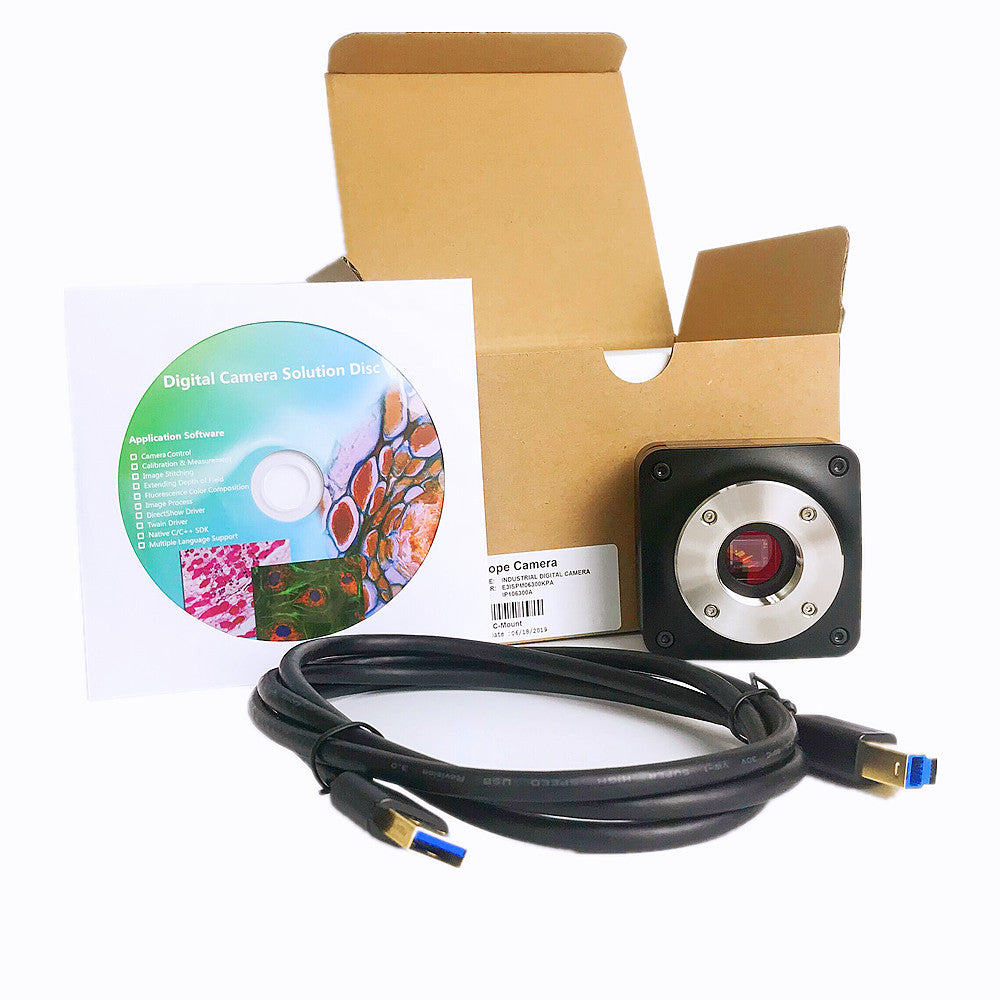

Packing Information for E3ISPM
|
Standard Camera Packing List |
|||
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
||
|
B |
Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) |
||
|
C |
E3ISPM series USB3.0 C-mount CMOS camera |
||
|
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
||
|
E |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 108004/AMA100 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 108011/ATA100 |
||
|
G |
Fixed lens Adapter |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 108008/FMA100 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 108014/FTA100 |
||
|
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
|
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
If you need optional accessories, please contact me. I will quote additionally.
Extension of E3ISPM with Microscope or Telescope Adapter
Image Captured with E3ISPM06300KPA
Red Fluorescent Image
Green Fluorescent Image
Blue Fluorescent Image
Fused Fluorescent Image
