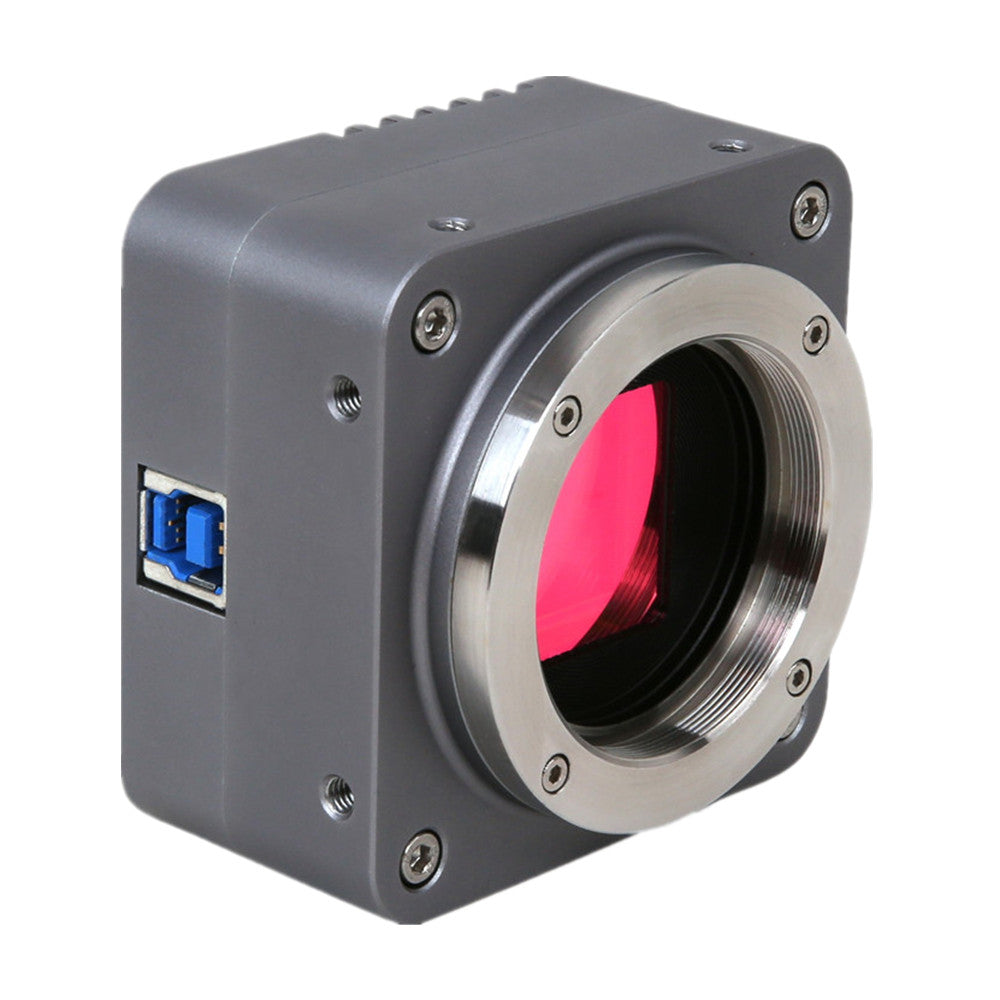

BigEye Series M42 and M42 to C or F Mount USB3.0 CMOS Camera
Characteristic
1) Large scientific CMOS sensor (SONY or GSENSE Back-illuminated CMOS sensor);
2) Wide spectrum range, some models even have high response in the ultra-violet to infrared wavelength;
3) Real-time 8/12bit depth switch(depending on sensor);
4) Ultra-fineTMHISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 30 frames for 10M resolution);
5) Ultra low noise and low power dissipation by using column-parallel A/D conversion;
6) With hardware resolution from 4.2M to 10.3M;
7) Rolling Shutter or Global Shutter;

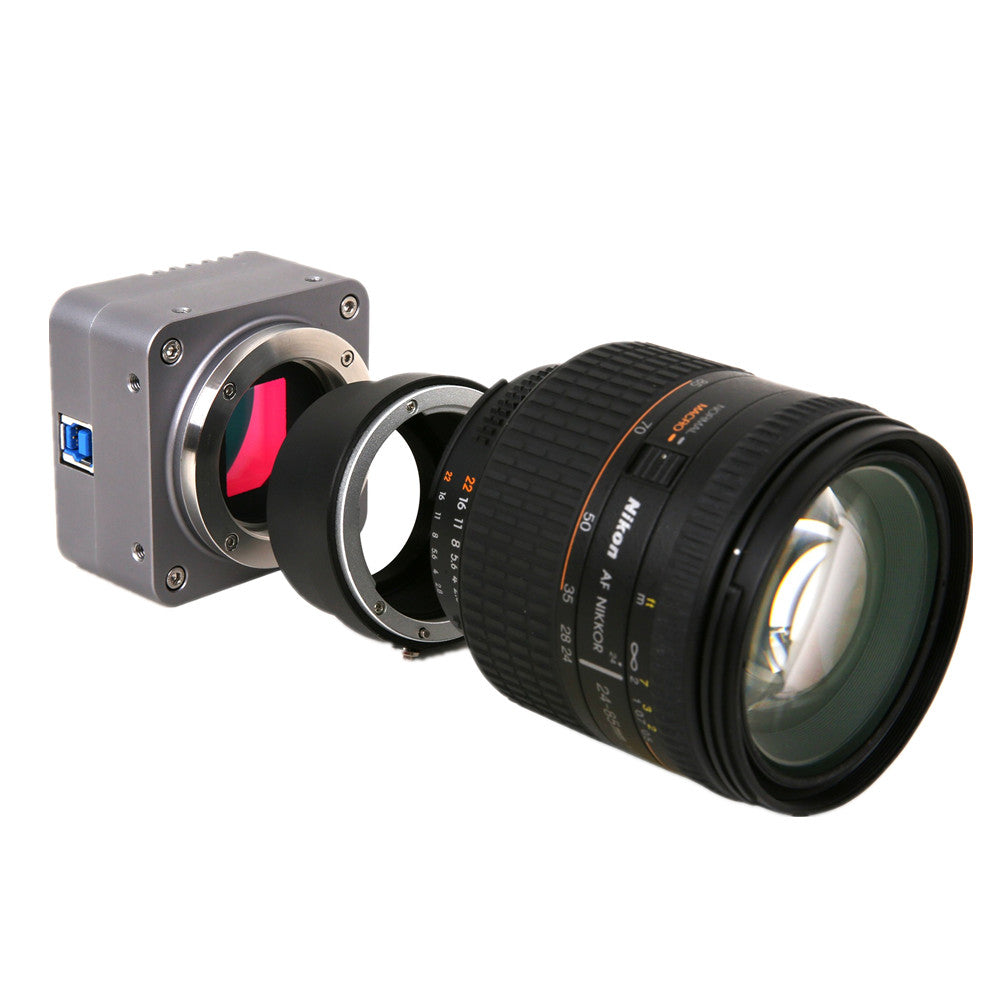

8) Standard M42 mount and M42 to C-mount or F-mount;
9) CNC aluminum alloy housing;
10) With advanced video & image processing application ToupView;
11) Providing Windows/Linux/Mac OS multiple platforms SDK;
12) Native C/C++, C#/VB.Net, DirectShow, Twain;
BigEye Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
BigEye10000KPA BP910000A |
10.3M/IMX294(C) |
4.63 x4.63 |
419mv with 1/30s |
30@3704x2778 39.5@2760x2072 62@2048x1080 86@1360x720 |
1x1, 1x1, 1x1, 2x2, 3x3 |
0.1ms~15s |
C: Color; M: Monochrome; GS: Global Shutter, UV: Good UV response
Spectral Response of GSENSE2020BSI
Spectral response of GSENSE2020e and GSENSE2020s
|
Other Specificationfor BigEyeCamera |
|
|
Spectral Range |
200-1100nm (UV without IR-cut Filter) or 400-900nm |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-fineTMHISPVP /NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft®Windows®XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display: 17” or Larger |
|
|
CD-ROM |
|

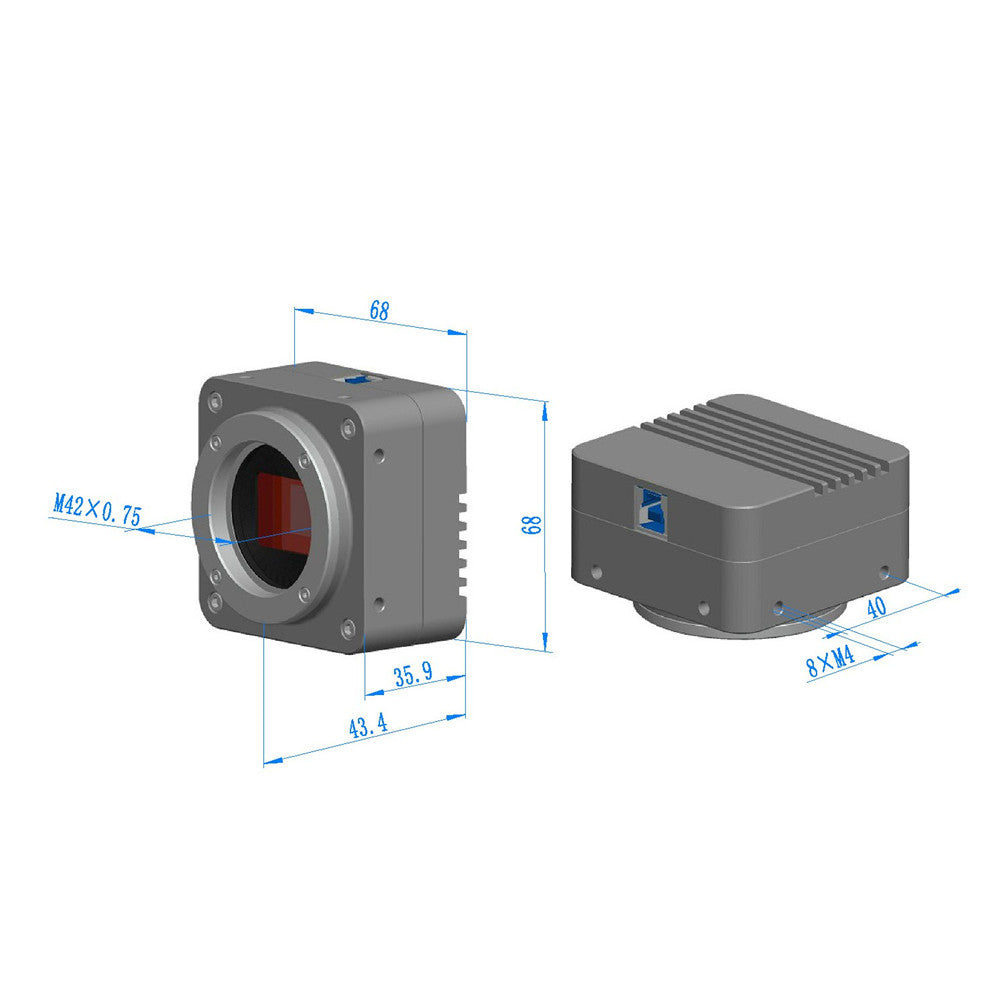

Dimension of BigEye

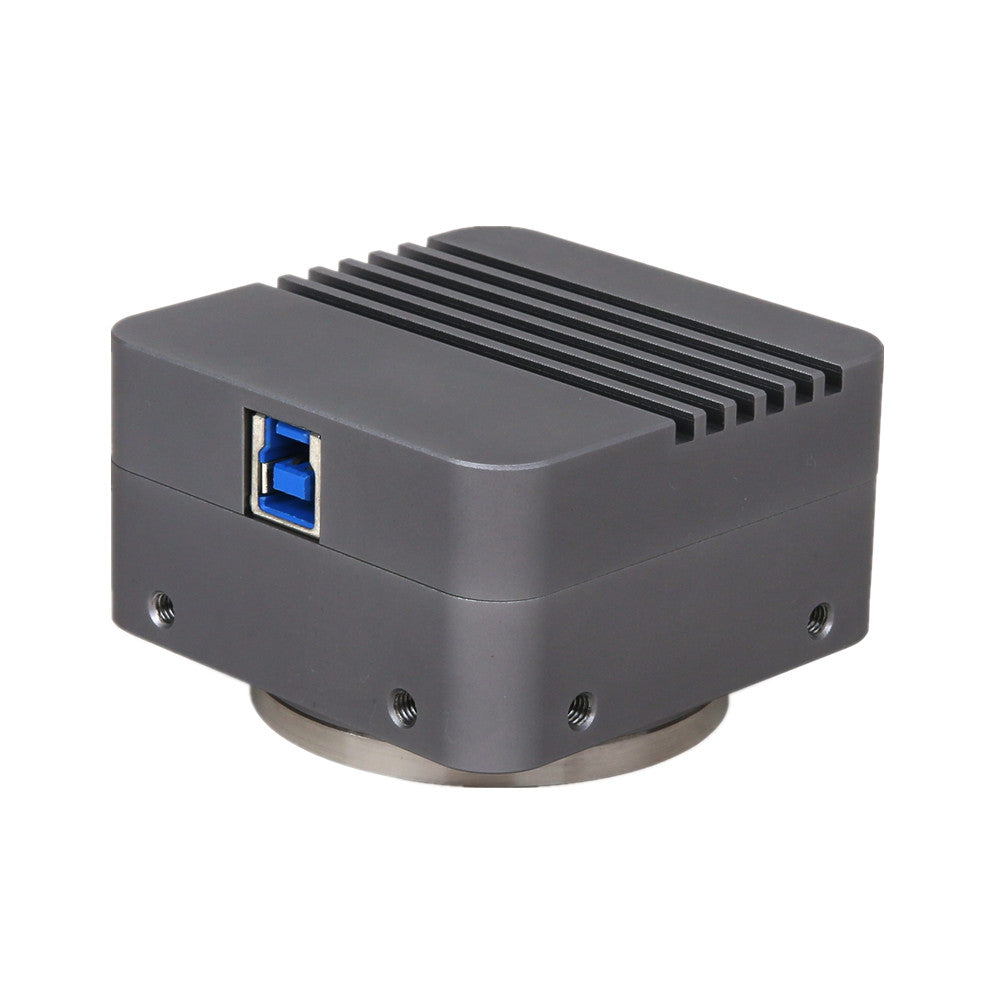

The BigEye body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR glass to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of BigEye with M42x0.75 or F-mount Interface

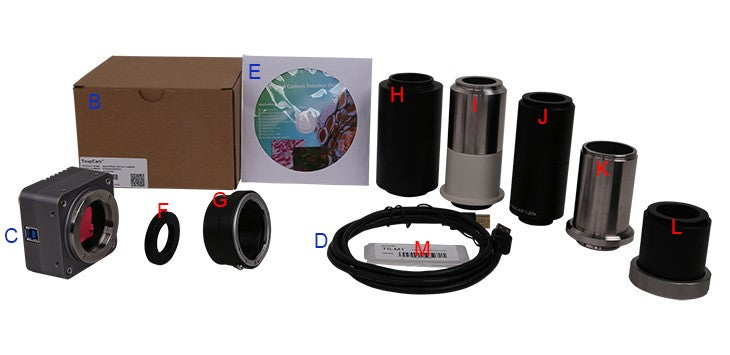

Packing Information for BigEye
|
Standard Camera Packing List |
||
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|
|
B |
Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) |
|
|
C |
BigEye series USB3.0 C-mount CMOS camera |
|
|
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
|
|
E |
CD (Driver & utilities software, Ø12cm) |
|
|
Optional Accessory |
||
|
F |
M42x0.75mm-mount to C-mount converter (If C-mount adapter is used) |
|
|
G |
M42x0.75mm-mount to F-mount converter (If F-mount lens is used) |
|
|
H |
Phototube to M42x0.75 mount adapter (U-TV1.2XT2) for Olympus microscope |
|
|
I |
Phototube to M42x0.75 mount adapter (MQD42120 MBB42120) for Nikon microscope |
|
|
J |
Phototube to M42x0.75 mount adapter (P95-T2 4/ P95-C 1" 1.0 x 3” 1.2x) for Zeiss Primo Star series , Zeiss Primo vert series microscope |
|
|
K |
Phototube to M42x0.75 mount adapter (11541510-120 HT2-1.2X) for Leica microscope |
|
|
L |
Phototube to M42x0.75 mount adapter (60N-T2 4/3" 1.2x) for Zeiss Axio series microscope |
|
|
|
Note: For 4/3” sensor, 1.2X adapter with M42x0.75 mount should be chosen, for the 1.2” sensor, 1.0X adapter with C-mount could be used to get the better FOV; |
|
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
