OVERVIEW

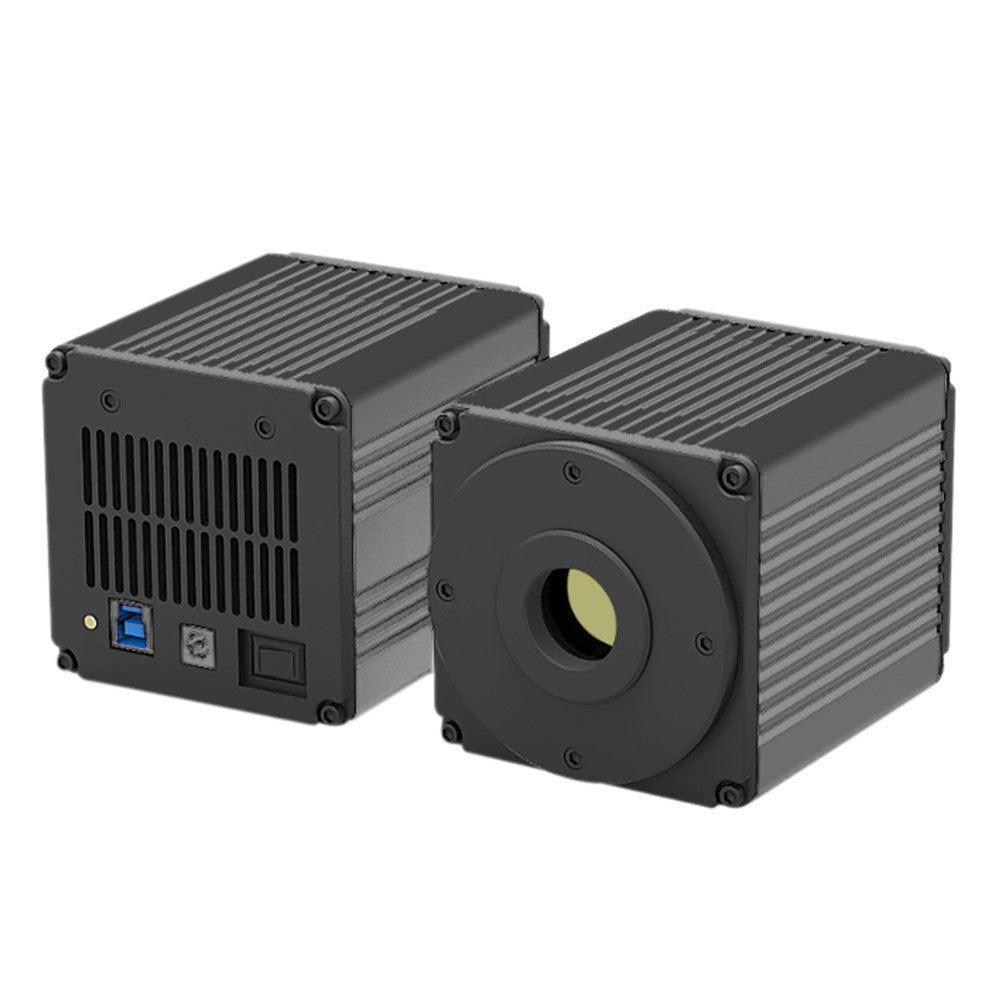

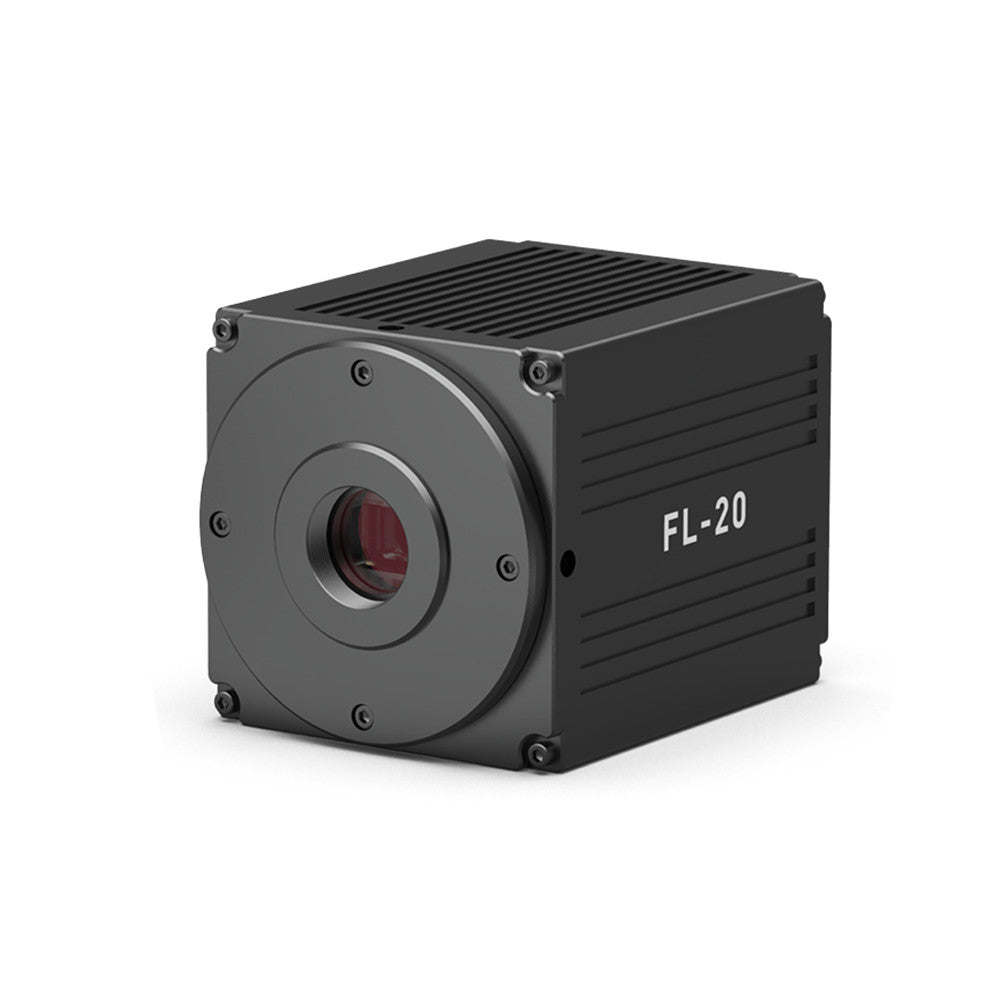

The camera a Scientific CMOS camera designed for professional color fluorescence imaging, with advanced thermoelectric cooling noise reduction technology and real-time 3D noise reduction and sharpening functions to provide perfect imaging quality.
20MP for Capturing High-Resolution Images
The 20's nearly 16mm diagonal diameter image sensor can cover the most uniform central area of the image plane. With a resolution of up to 20 megapixels, you can capture high-definition details of your samples in one shot.
Advanced Cooling Technology Reduces Dark Current Down to 0.001e-/pixel/s
Based on Tucsen's professional cooling technology for sCMOS cameras, the FL 20 can achieve a dark current level as low as 0.001e/pixel/s, significantly reducing hot pixels during long exposure times.
Real-time Intelligent Image Processing, Focused on Improving Image Quality
Without sacrificing speed and image information, the FL 20 offers a variety of real-time intelligent image processing capabilities that allow you to view and capture flawless sample images in real-time with the push of a button.
Specification
|
|
|
|
Sensor Type |
CMOS |
|
Sensor Model: |
SONY IMX183CQJ-J |
|
Color/Mono |
Color |
|
Array Diagonal |
15.86mm |
|
Resolution |
20MP, 5472(H) x 3648(V) |
|
Pixel Size |
2.4μm x 2.4μm |
|
Effective Area |
13.1mm x 8.8mm |
|
Shutter Mode |
Rolling |
|
Frame Rate |
14fps@USB3.0 |
|
Peak QE |
84%@535nm |
|
Readout Noise |
<1e- |
|
Exposure Time |
18μs-60min |
|
Color Temperature |
2000-15000K |
|
Binning: |
2x2, 3x3, 4x4 |
|
PC Software |
Mosaic V2 |
|
Picture Format |
TIFF/JPG/PNG/DICOM |
|
Data Interface |
USB3.0 |
|
Multiple Cameras |
Supports 4 Cameras Simultaneously in SDK |
|
SDK |
C/C++, C#, Directshow/Twain |
|
Optical Interface |
Standard C Mount |
|
Bit Depth |
16/8bit |
|
Power |
12V |
|
Operating Environment |
Temperature: 0~40℃ |
|
Humidity |
10%~85% |
|
Dimensions |
85mm x 85mm x 109mm |
|
Camera Weight |
990g |
|
Operating System |
Windows 7/10(32 Bit/64 Bit)/Mac |
|
PC Configuration |
CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more |
