The Application of the WUCAM1080P Series Camera

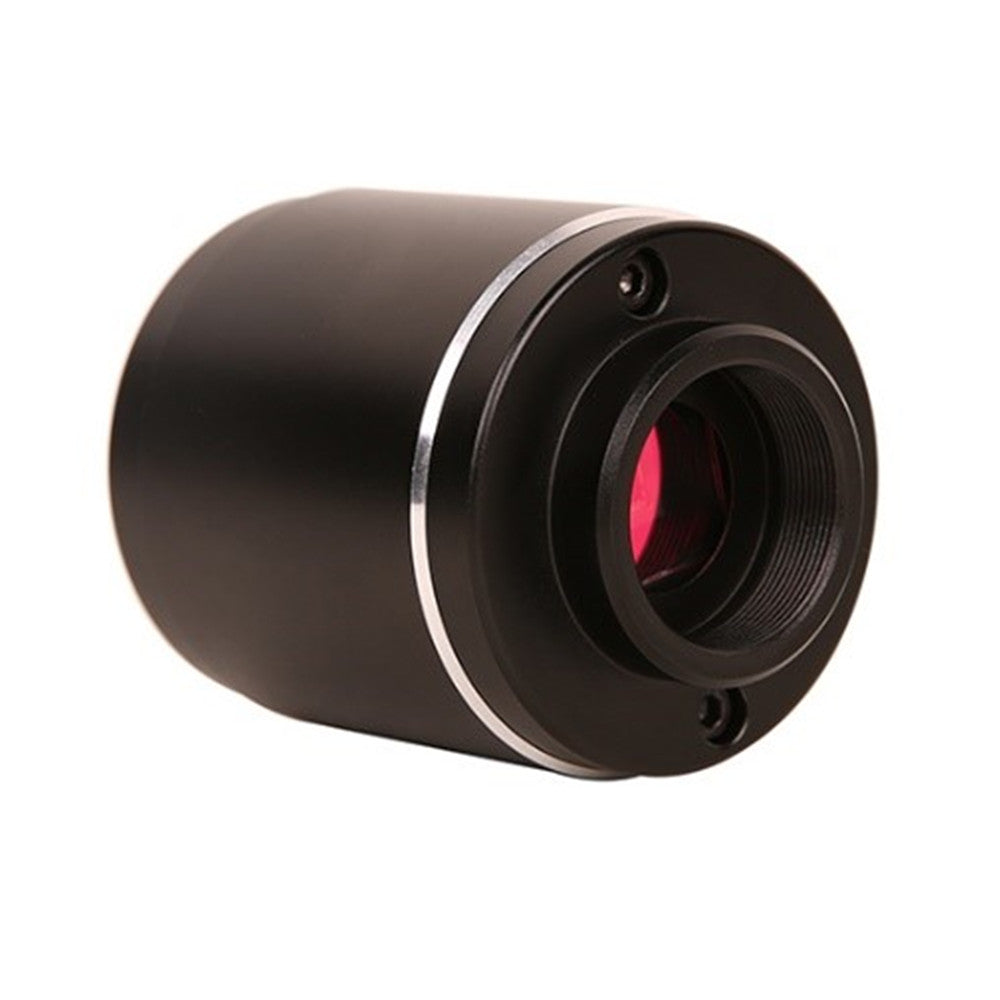

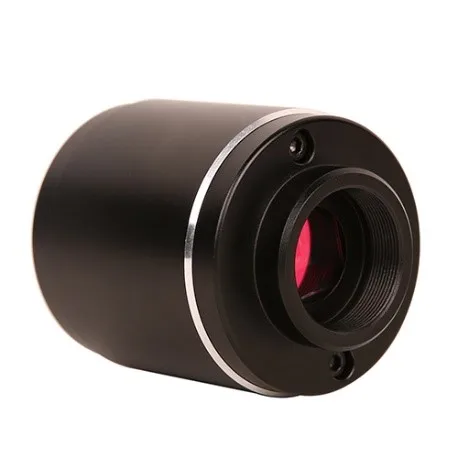

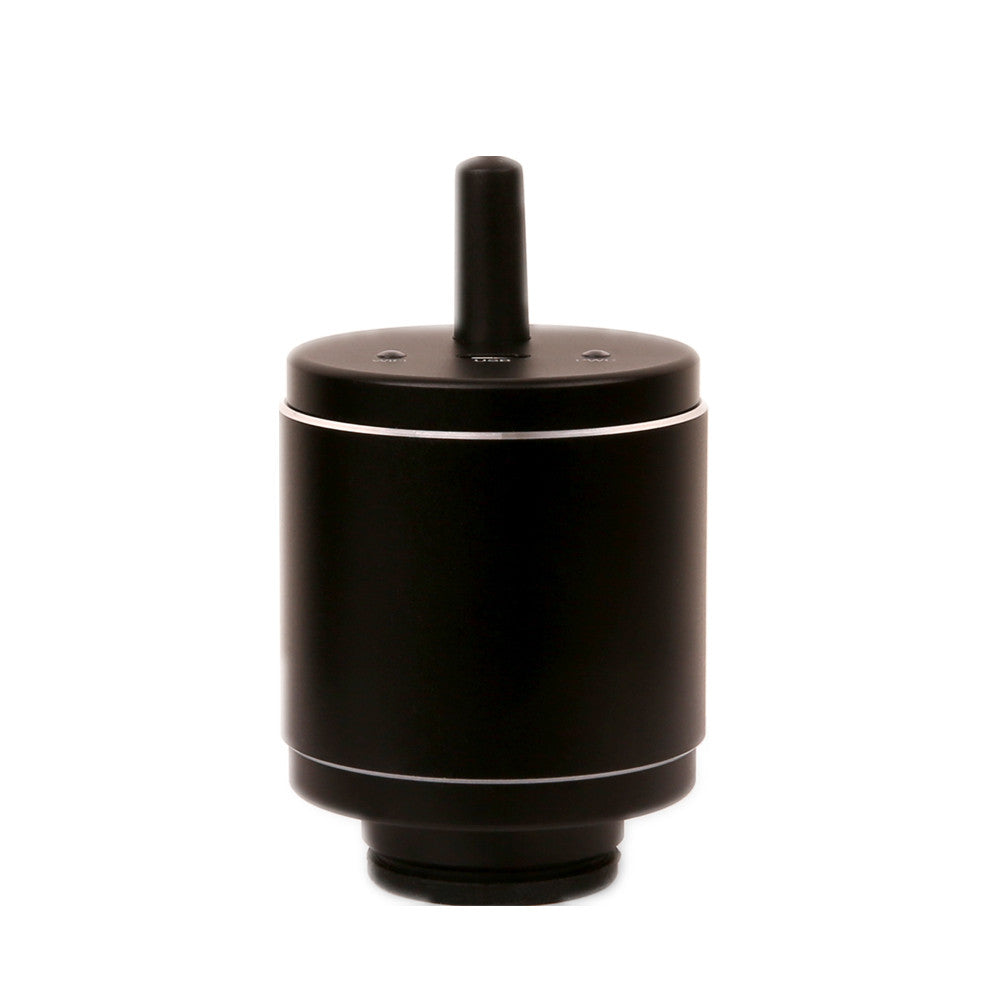

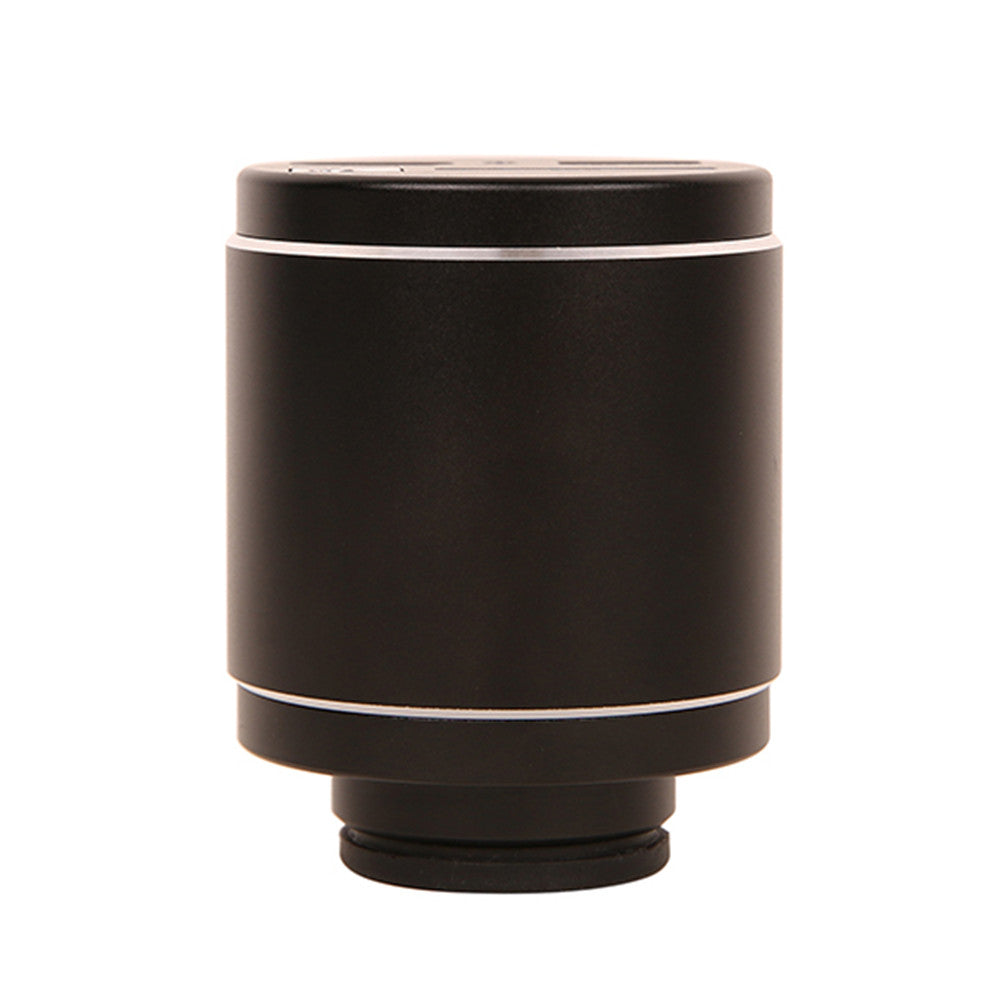

Figure 1‑1WUCAM1080P Series Camera
The WUCAM1080P series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching. The basic characteristics are listed as below:
-
Sony Starvis back illuminated CMOS sensor
-
USB,WiFi(AP mode) multiple video outputs
-
With strong ISP and other related processing functions
-
ToupView/ToupLite software for PC
-
iOS/Android app for smart phones or tablets
WUCAM1080P Series Camera Datasheet and Functions
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity |
FPS/Resolution |
Binning |
Exposure(ms) |
|
WUCAM1080PA |
Sony 1/2.8"(5.57x3.13) |
2.9x2.9 |
1300mv with 1/30s |
50@1920*1080(USB) 50@1920*1080(WiFi) |
1x1 |
0.01~1000 |

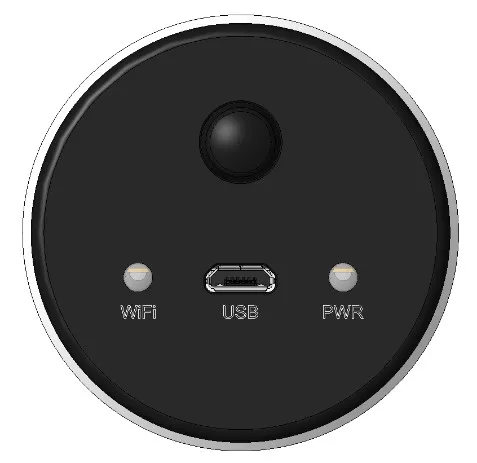

Figure 2‑1Available Ports on the Back Panel of the Camera Body
|
Interface and Indicator |
Function Description |
|
Micro USB |
Connect to 5V power supply with Micro USB cable,Camera provides WiFi AP connection mode; Connecting to PC with Micro USB cable, Camera provides UVC function. |
|
WiFi LED |
WiFi function indicator |
|
PWR LED |
Power indicator |
|
Video |
Function Description |
|
USB Video Interface |
Connecting USB port of PC for video transfer; MJPEG format video, supported 50fps@1080P; |
|
WiFi Interface |
Support 802.11b/g/n protocols in AP mode; 50fps@1920*1080 H264 encoded video and Jpeg image capture; supportup to 3 clients, 1 client connection is the best. |
|
Other Function |
Function Description |
|
Color Technique |
Ultra-Fine Color Engine; |
|
ISP Function |
Exposure(Automatic/ Manual Exposure) , Gain，White Balance(Automatic / Manual / ROI Mode)， Sharpening， 3D Denoise，Saturation Adjustment，Contrast Adjustment，Brightness Adjustment，Gamma Adjustment，Color to Gray，50HZ/60HZ Anti-flicker Function, Anti-flicker， Mirror/Flip |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK; |
|
Recording System |
Still Picture or Movie |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
WiFi Adaptor: Support 802.11 b/g/n |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
USB DC 5V/1A Adapter |
WUCAM1080P Series Camera Packing Information

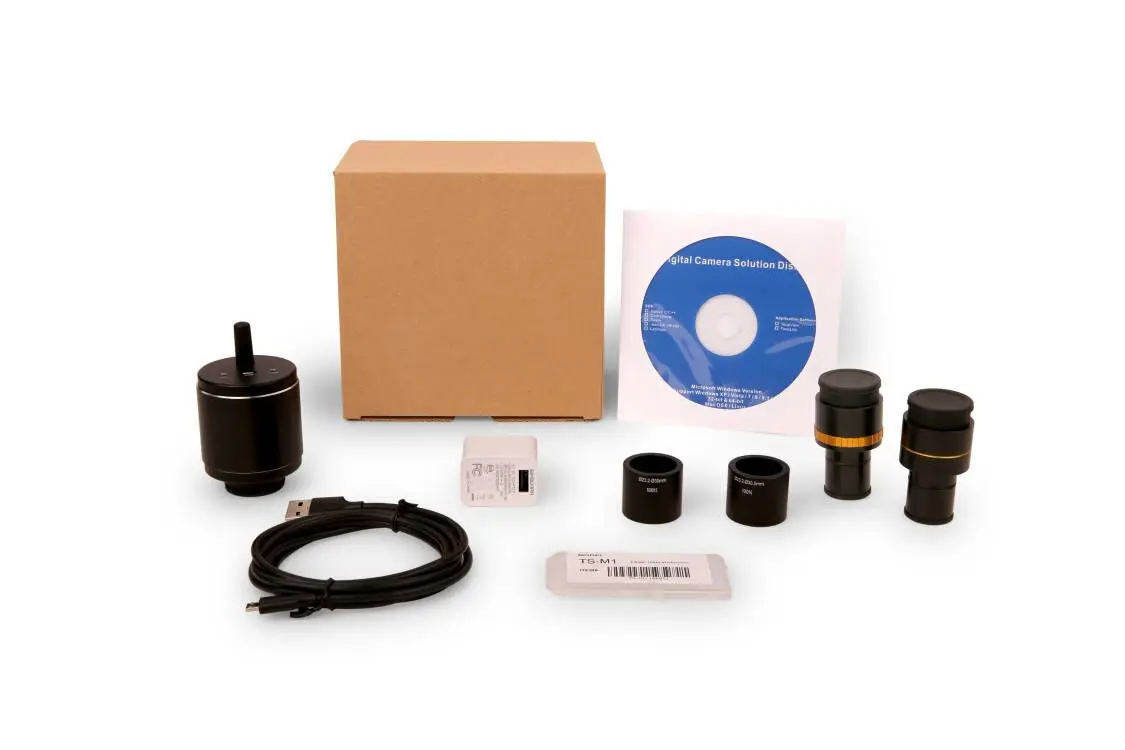

Figure 3‑1 WUCAM1080P Series Camera Packing Information
Two connection methods for WUCAM1080P series cameras
There are two main ways touse WUCAM1080P series.

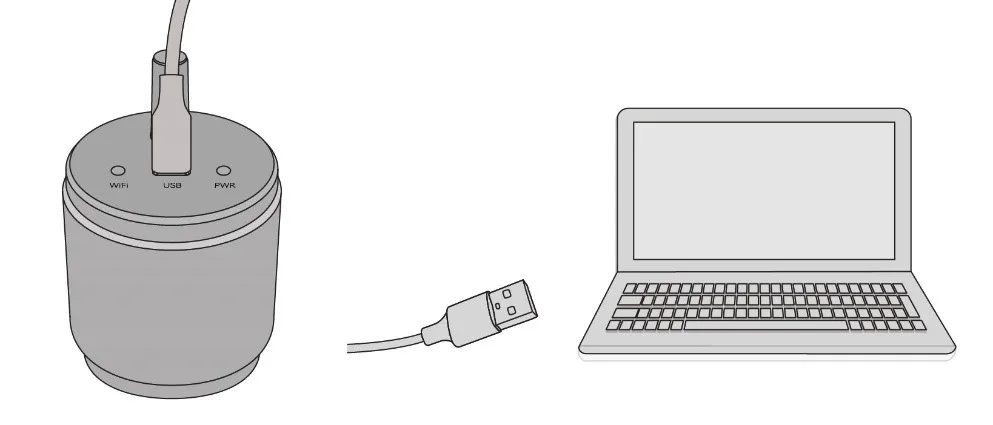

Connecting camera to the PC with Micro USB port
The steps to start the camera are listed below:
-
Install the ToupView /ToupLite software on your PC;
-
Connect the Micro USB cable to the power port, Wait for the camera to start;
-
Open ToupView/ToupLitesoftware. The WUCAM1080Pseries camera will be recognized automatically by software. In ToupView/ToupLitesoftware, select the corresponding WUCAM1080Pseries camera by clicking thecamera name in the camera list.

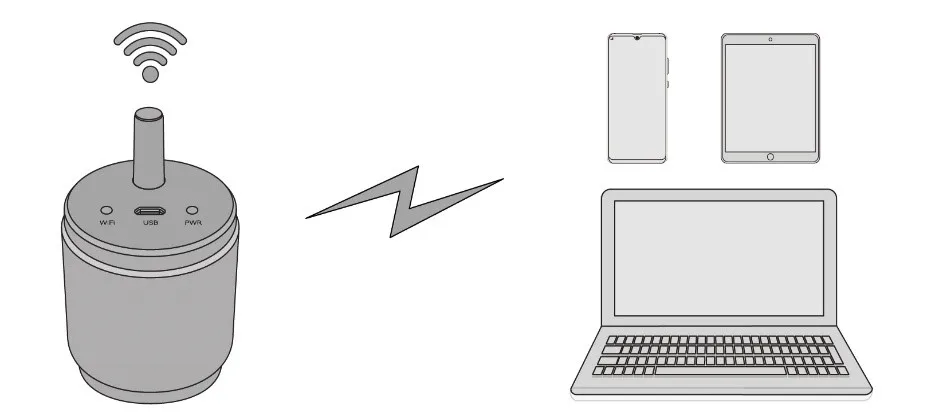

Camera working in WiFi AP mode
The steps to start the camera are listed below:
-
Install the ToupView/ToupLite on your PC or install the ToupView App on the mobile device;
-
Connect the Micro USB cable to 5V power adapter;
-
Connect the PC or mobile device to the WiFi ssid of camera;
-
Start the ToupView/ToupLite software or ToupView App and check the configuration. Normally, active WUCAM1080P cameras are automatically recognized. The connected cameras will be listed in the Camera List group of the Camera Control Bar of ToupView/ToupLite on PC. On mobile device, connected cameras will be listedin the Camera Thumbnail page of ToupView App. Click the corresponding camera to start the stream.
