XCAM1080PHB/PHD’s Basic Characteristic
XCAM1080PHB/PHD is a multiple interfaces (HDMI-Compatible+WIFI+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI-Compatible+WIFI are used as the data transfer interface to HDMI-Compatible display or computer.
For HDMI-Compatible output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI-Compatible screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WIFI output, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software. You can control the camera, process the image as other USB series camera.
1) All in 1( HDMI-Compatible+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
2) For HDMI-Compatible application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
3) 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
4) For HDMI-Compatible application, 5.04M resolution image(2592*1944XCAM1080PHB) or 2.0M resolution image(1920*1080XCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
5) With the USB WIFI adapter, the XCAM1080PHB/PHD can be used as WIFI camera, the advanced image processing software is used to view the video and capture image. support plug and play application;
6) Ultra-Fine color engine with perfect color reproduction capability(WIFI);
7) With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
8) XCAM1080PHB/PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
The possible application of XCAM1080PHB/PHD is as follows:
1) Scientific research, education (teaching, demonstration and academic exchanges);
2) Digital laboratory, medical research;
3) Industrial visual (PCB examination, IC quality control);
4) Medical treatment (pathological observation);
5) Food (microbial colony observation and counting);
6) Aerospace, military (high sophisticated weapons);
XCAM1080PHB/PHD Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
XCAM1080PHB XP1080B |
Sony IMX178(C) 1/1.8"(6.22x4.67) |
2.4*2.4 |
425mv with 1/30s 0.15mv with 1/30s |
60/1920*1080 25/1920x1028 |
1x1 |
0.03ms~918ms |
|
Interface & Button Functions |
||||
 |
USB |
USB Mouse/USB WIFI Adapter |
||
|
HDMI-Compatible |
HDMI-Compatible Output |
|||
|
DC12V |
12V Power in |
|||
|
SD |
SD Card Slot |
|||
|
ON/OFF |
Power On/off Switch |
|||
|
LED |
Power Indicator |
|||
|
Other Specification for HDMI-Compatible Output |
||||
|
UI Operation |
With USB Mouse to Operate on the embedded XCamView |
|||
|
Image Capture |
JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) |
|||
|
Video Record |
ASF Format 1080P 30fps in SD Card(8G) |
|||
|
Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
|||
|
Toolbar |
Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information |
|||
|
Other Specification for WIFI Output |
||||
|
UI Operation |
ToupView or ToupLite on Windows/Linux/OSX/Android Platform |
|||
|
WIFI Performance |
802.11n 150Mbps; RF Power 20dBm(Maximum) |
|||
|
Maximum Connected Devices |
3~6(According to the Environment and Connection Distance) |
|||
|
White Balance |
Auto White Balance |
|||
|
Color Technique |
Ultra-FineTMColor Engine (WIFI) |
|||
|
Capture/Control API |
Standard SDK for Windows/Linux/Mac(WIFI) |
|||
|
Recording System |
Still Picture or Movie (WIFI) |
|||
|
Software Environment (for USB2.0 Connection) |
||||
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1(32 & 64 bit) OSx(Mac OS X) Linux |
|||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|||
|
Memory:4GB or More |
||||
|
USB Port:USB2.0 High-speed Port |
||||
|
Display:19” or Larger |
||||
|
CD-ROM |
||||
|
Operating Environment |
||||
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|||
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|||
|
Operating Humidity |
30~80%RH |
|||
|
Storage Humidity |
10~60%RH |
|||
|
Power Supply |
DC 12V/1A Adapter |
|||
XCAM1080PHB/PHD and Microscope

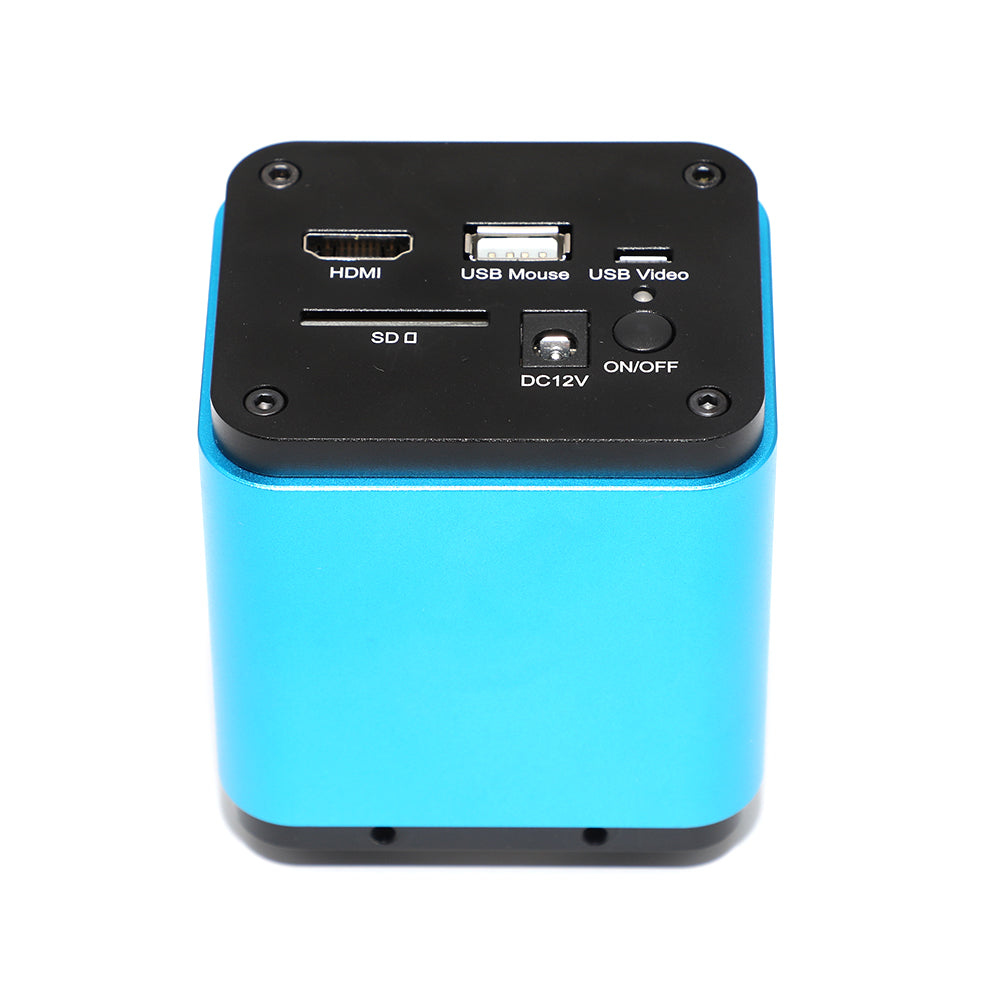

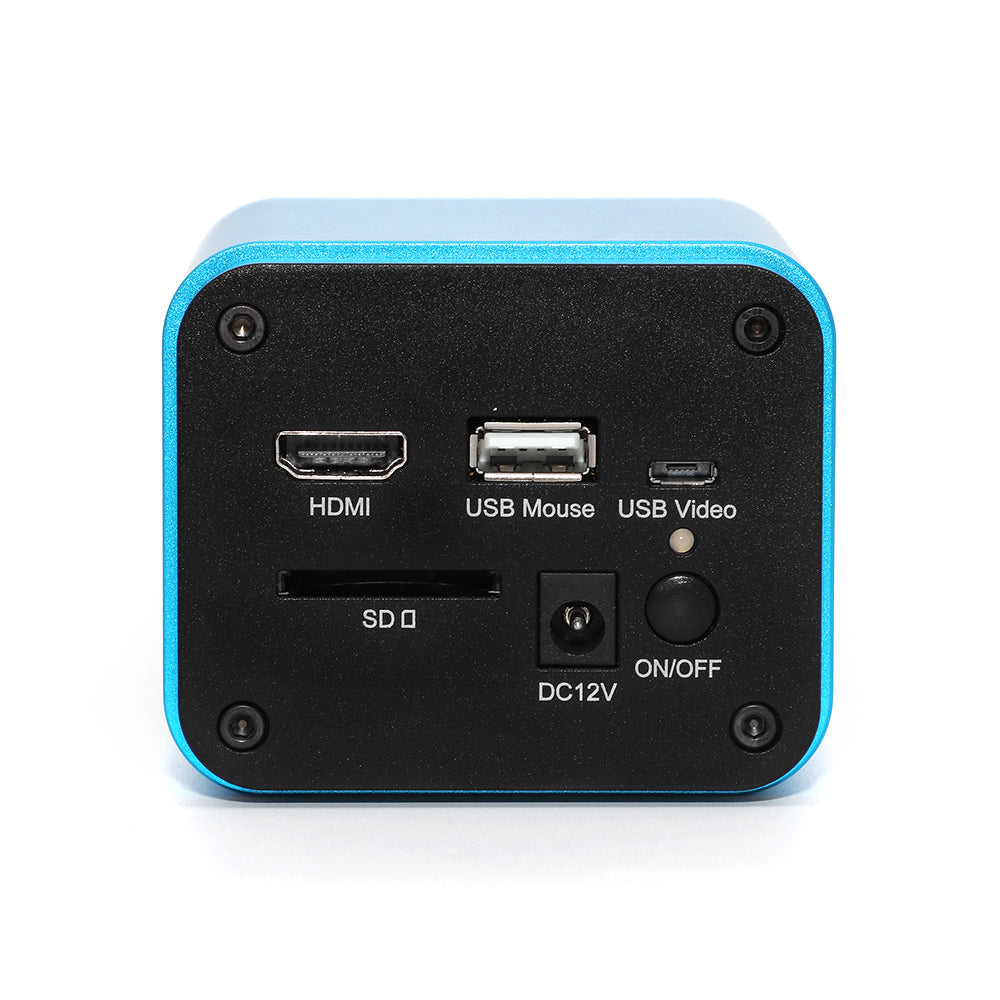

XCAM1080PHB/PHD and Its Back Panel

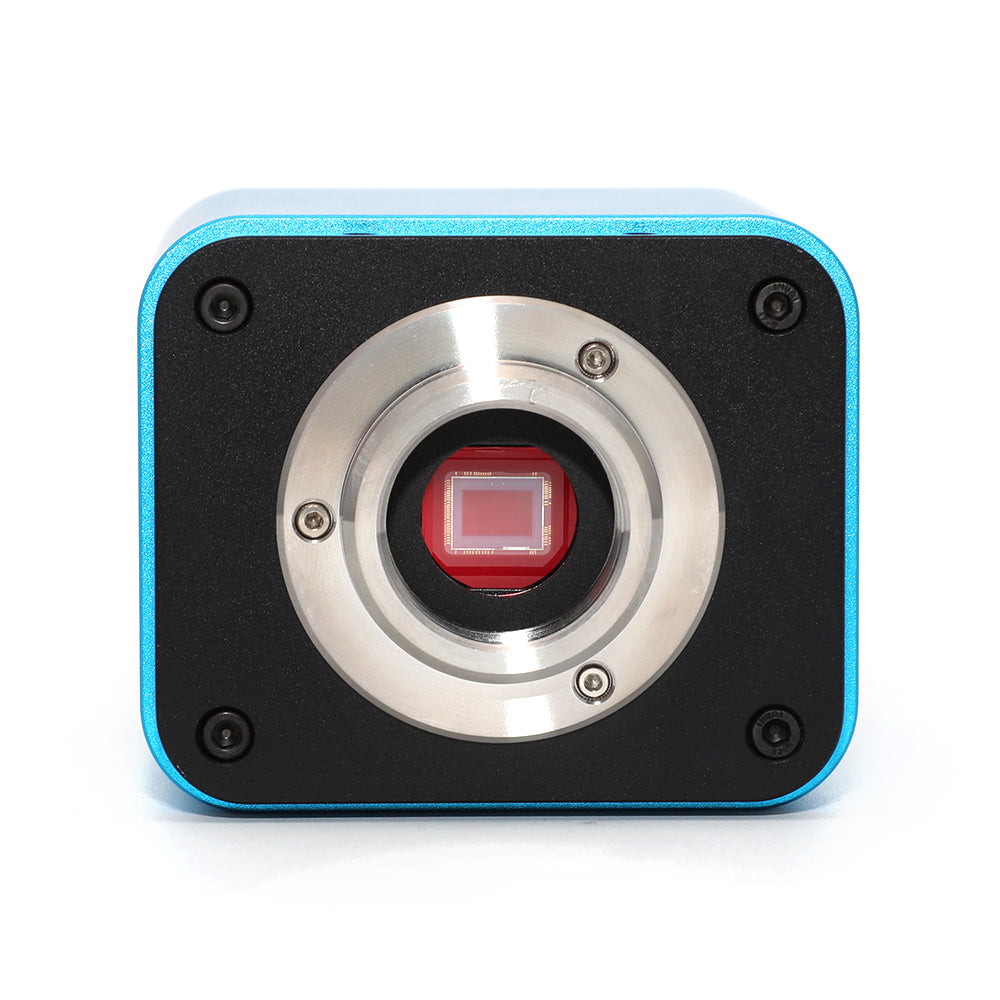

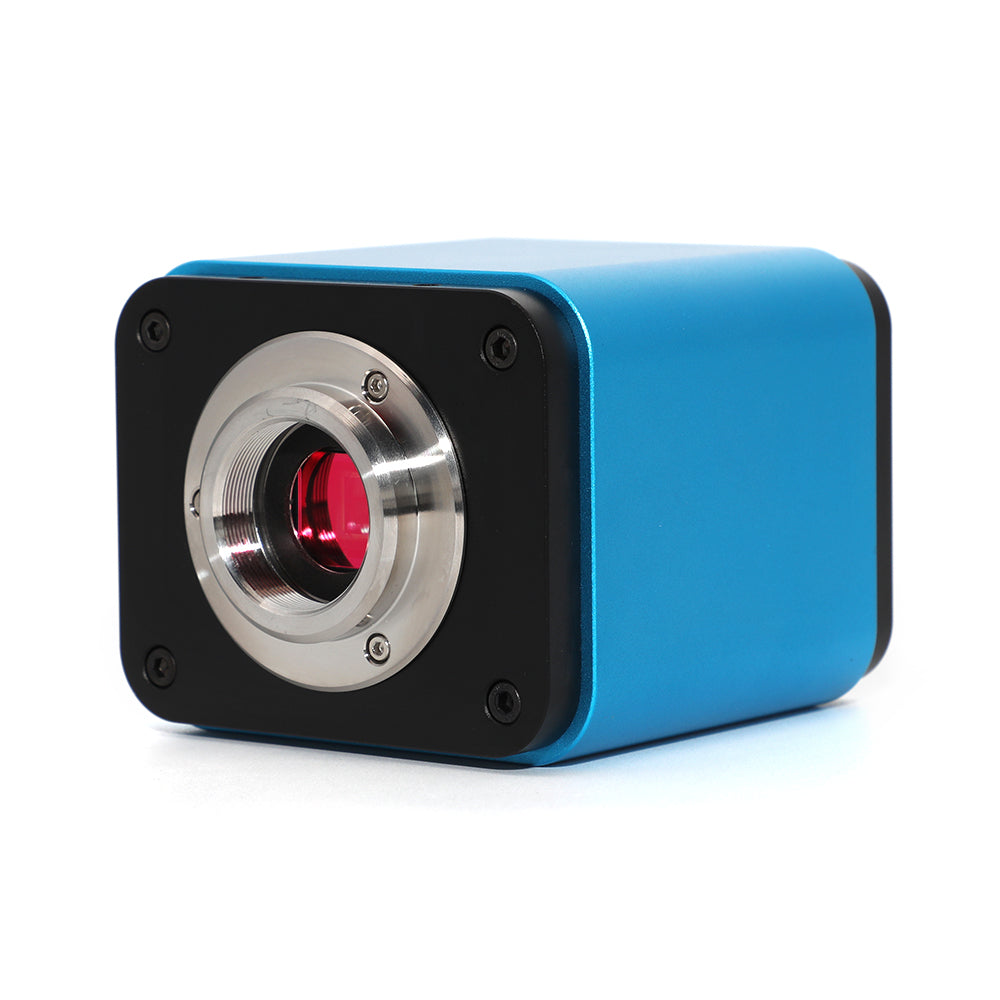

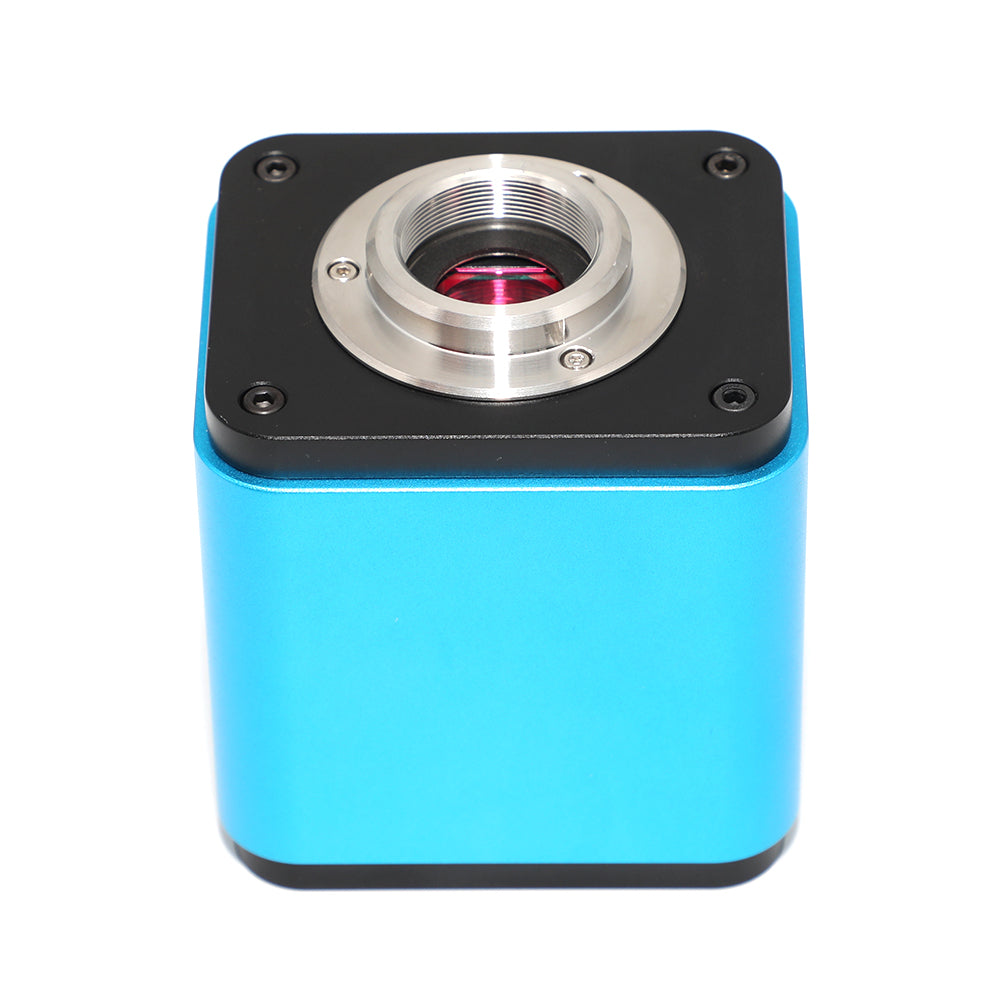

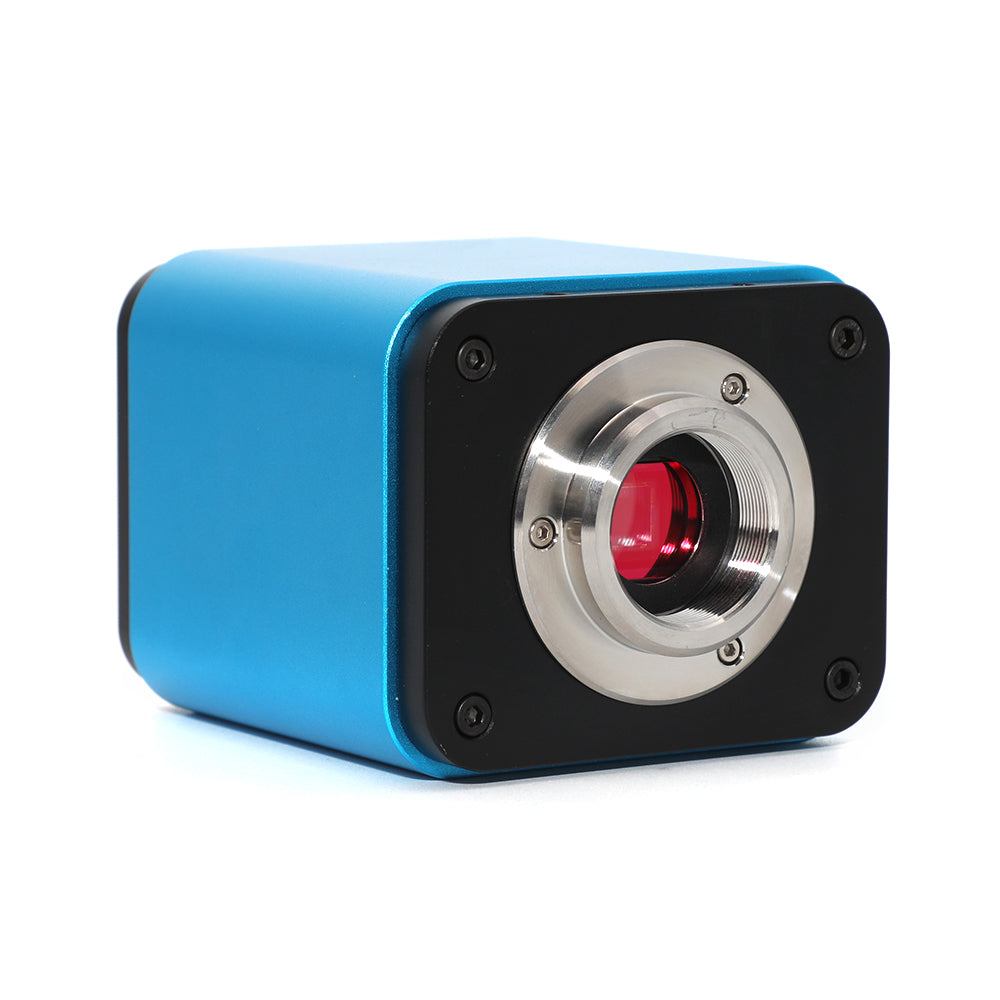

Different Views of XCAM1080PHB/PHD

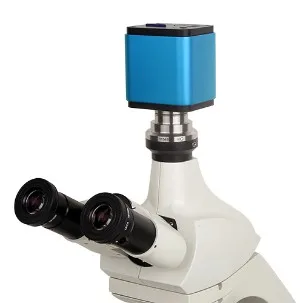

XCAM1080PHB/PHD Camera and Microscope

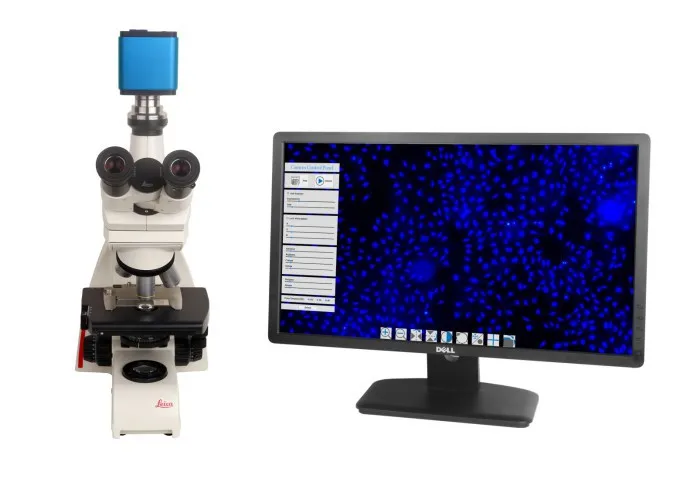

XCAM1080PHB/PHD Camera + Microscope+Display

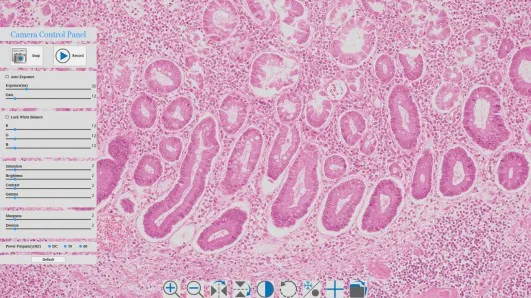

XCamViewcamera UI for Mouse Control

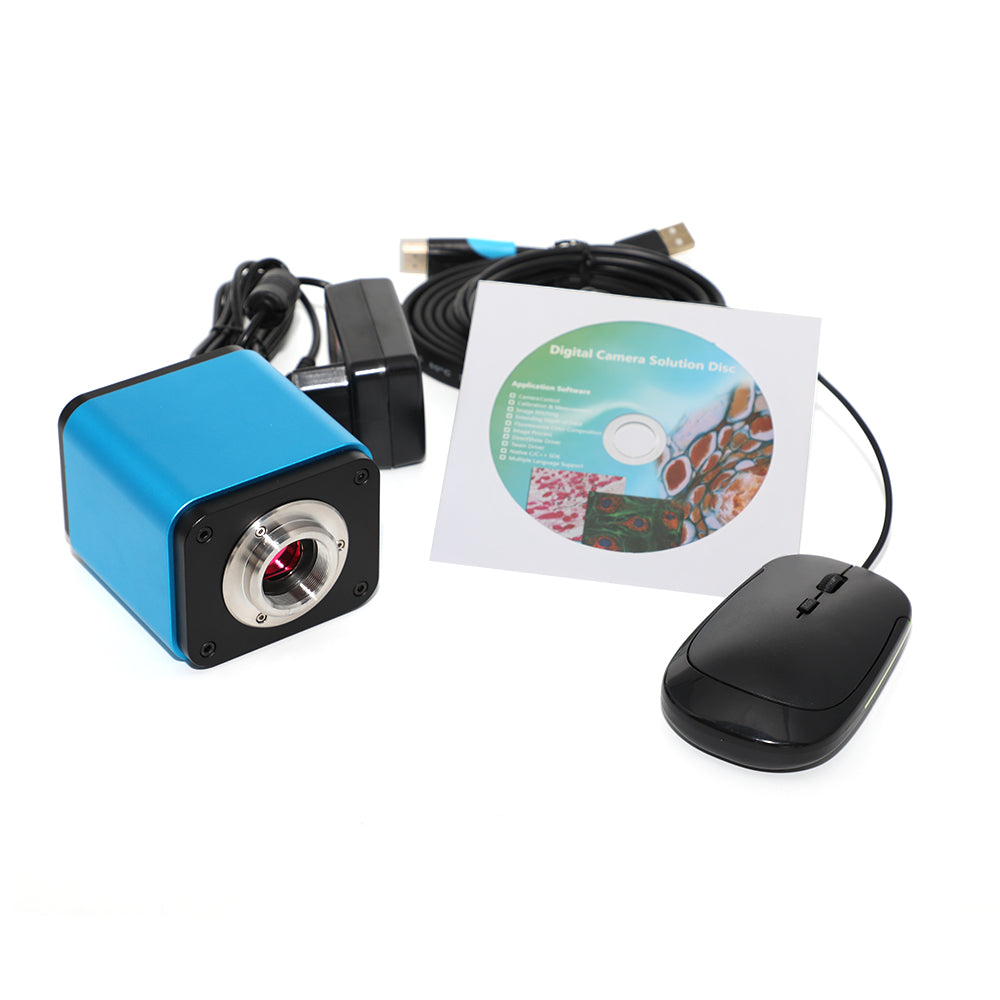

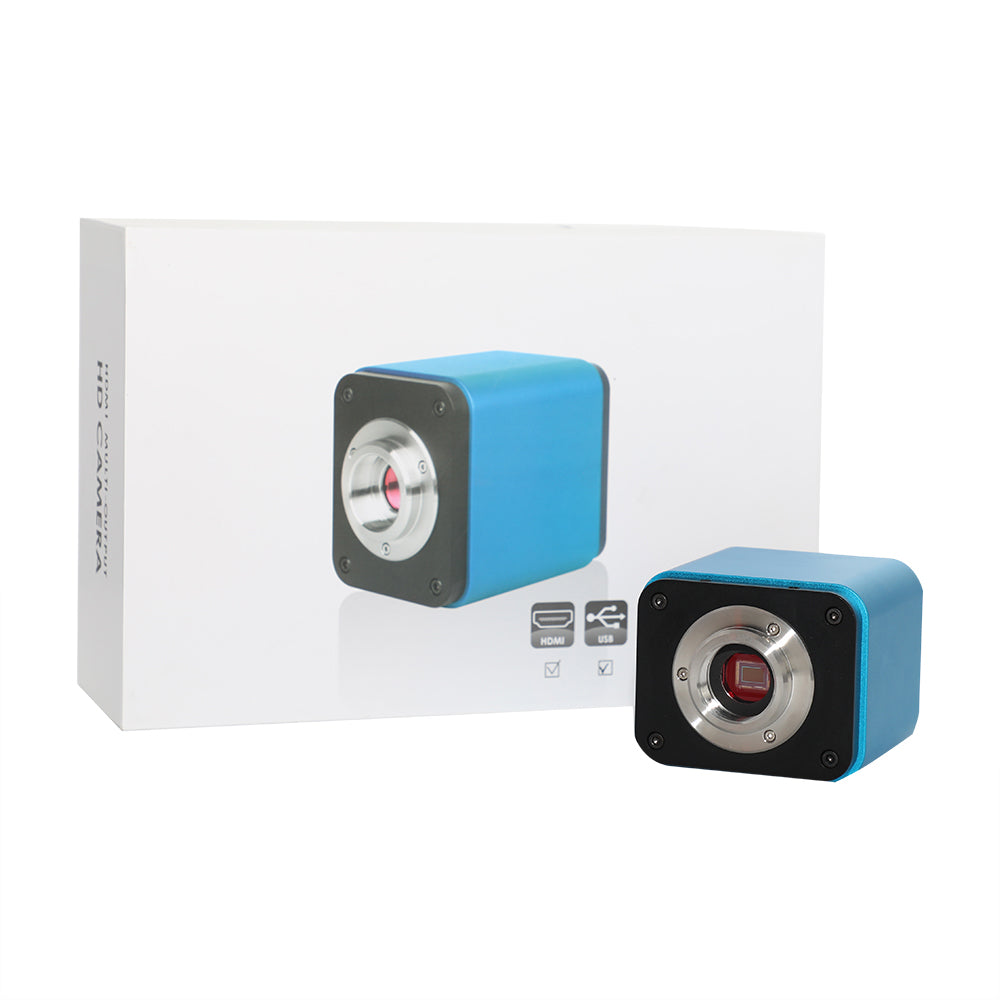

Packing Information for XCAM1080PHB/PHD
Packing information of XCAM1080PHB/PHD
|
Standard Packing List |
||||
|
A |
Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) |
|||
|
B |
XCAM1080PHB or XCAM1080PHD |
|||
|
C |
Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
|||
|
D |
HDMI-Compatible Cable |
|||
|
E |
USB Mouse |
|||
|
F |
High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m |
|||
|
G |
CD (Driver & utilities software, Ø12cm) |
|||
|
Optional Accessory |
||||
|
H |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108008/ATA037 |
|||
|
I |
Fixed lens adaptor |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 |
|||
|
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
||||
|
J |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
|
K |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
|
L |
Calibration Kit |
106011/TS-M1(X=0.01mm/100Div.); |
||
|
M |
SD Card(4G or 8G) |
|||
