XCAMTOP4K Series Camera Application

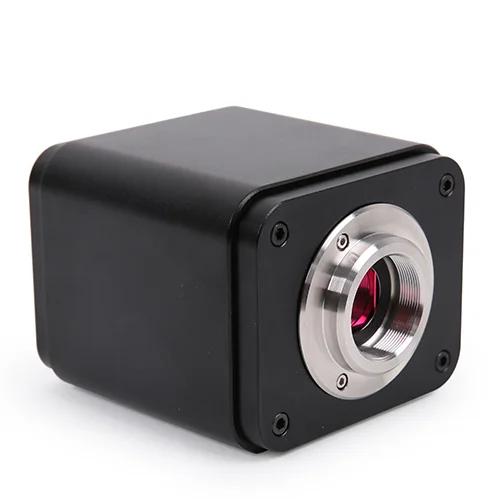

Figure 0‑1 The XCAMTOP4K Series Camera
The XCAMTOP4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive
teaching. The basic characteristic is listed as below:
-
Sony Exmor/STARVIS back-illuminated CMOS sensor
-
4K HDMI/ NETWORK/ USB multiple video outputs
-
4K/1080P auto switching according to monitor resolution
-
SD card/USB flash drive for captured image and video storage,
support local preview and playback -
Embedded XCamView for the control of the camera and image processing
-
Excellent ISP with local tone mapping and 3D denoising
-
ToupView/ToupLite software for PC
-
iOS/Android applications for smart phones or tablets
XCAMTOP4K Series Camera Datasheet and Functions
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure(ms) |
|
XCAMTOP4K8MPA |
Sony IMX334(C) |
2.0x2.0 |
505mv with 1/30s |
30@3840*2160(HDMI) |
1x1 |
0.04~1000 |
|
XCAMTOP4K8MPB |
Sony IMX485(C) |
2.9x2.9 |
2188mv |
30@3840*2160(HDMI) |
1x1 |
0.04~1000 |
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |
|
Function Description |
|
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamViewsoftware |
|
USB2.0 |
Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time |
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
LAN |
LAN port to connect router and switch to transfer video |
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
ON/OFF |
Power switch |
|
LED |
LED status indicator |
|

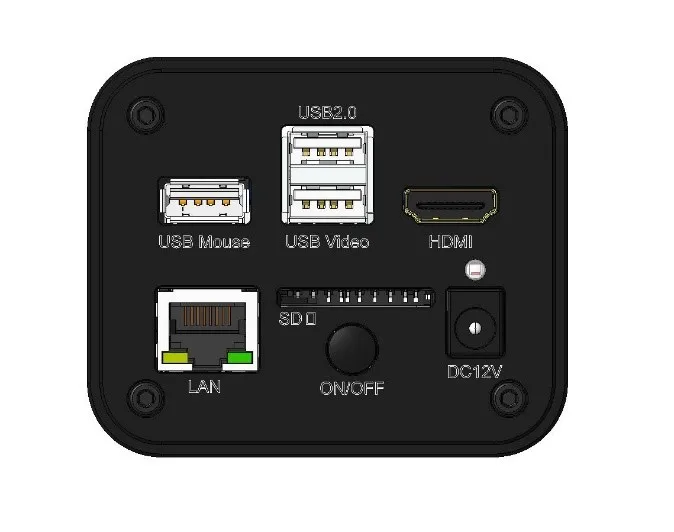

DC12V |
Power adapter connection (12V/1A) |
|
Video Output Interface |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
|
LAN Interface |
support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration |
|
WLAN Interface |
Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Video port of PC for video transfer MJPEG format video |
|
Other Function |
Function Description |
|
Video Saving |
Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps |
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
ISP |
Exposure(Automatic / Manual Exposure) / Gain，White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
XCAMTOP4K Series Camera Packing Information
|

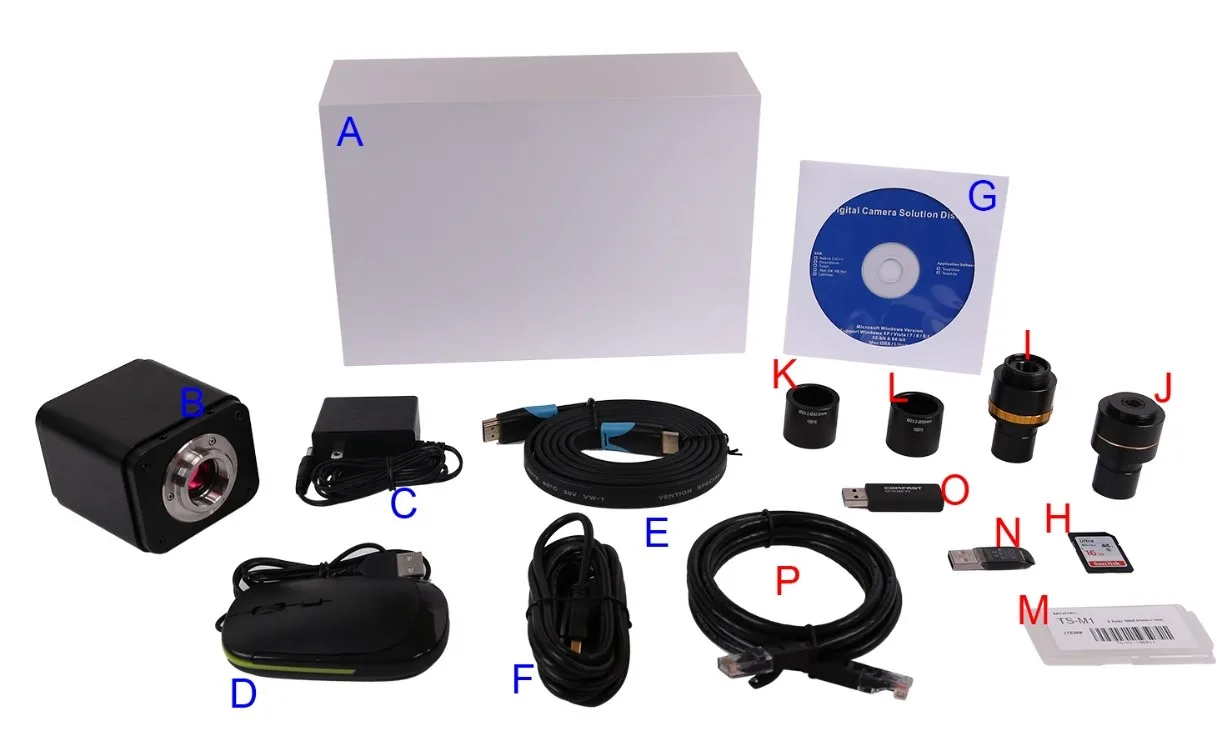

Standard Packing List |
|||
|
A |
Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box) |
||
|
B |
XCAMTOP4K Camera(One of the two different shapes) |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz,Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB2.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
SD Card(16G or above; Speed: class 10) |
||
|
I |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
J |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
Note: For K and Loptional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
K |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
L |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
|
N |
USB flash drive |
||
|
O |
USB WLAN adapter |
||
|
P |
Ethernet cable |
||
XCAMTOP4K Series Camera Configurations
You can use the XCAMTOP4K series camera in 5 different ways. Each application requires different hardware environment.
Camera working standalone with built-in XCamView software
For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB mouse, and the camera embedded XCamViewsoftware. A computer or a network connection is not required to operate the camera in this application. The steps to start the camera are listed as below:

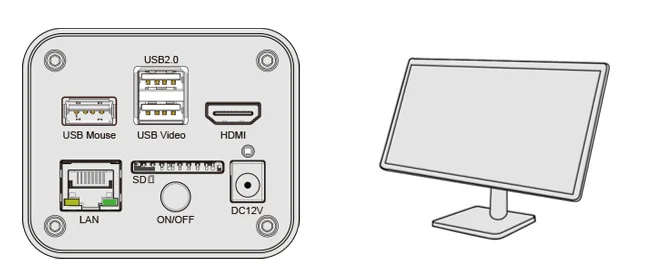

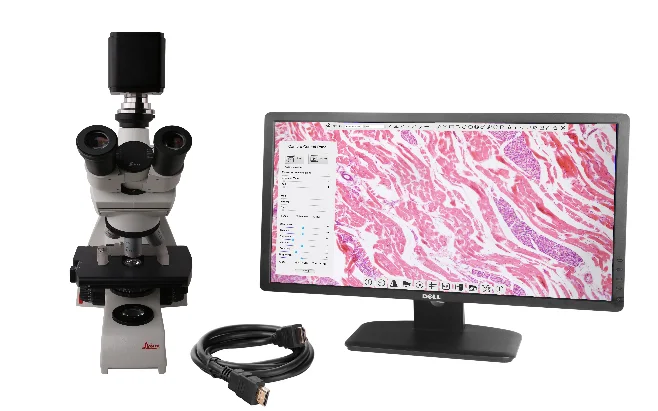

Figure 0‑1 XCAMTOP4K Series Camera with the HDMI Monitor
Connect the camera to a HDMI monitor using the HDMI cable;

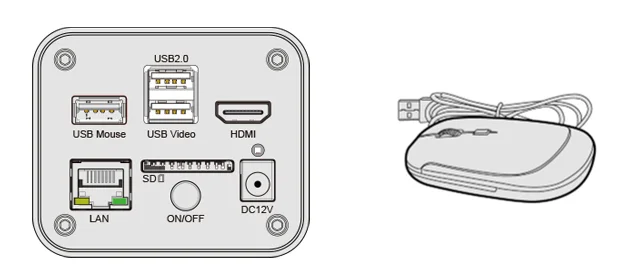

Insert the supplied USB mouse to the camera’s USB port;

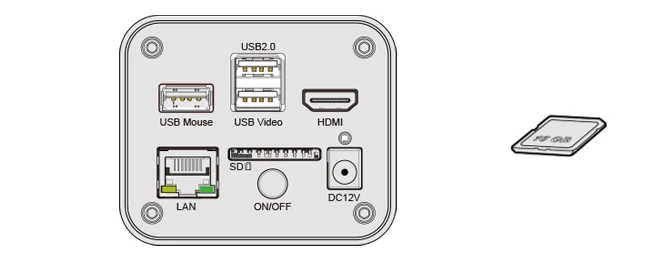

Insert the supplied SD card/USB flash drive (USB2.0 slot) into the XCAMTOP4K series camera SD card slot/USB2.0 slot;
Connect the camera to the power adapter and turn it on;
Turn on the monitor and view the video in the XCamViewsoftware. Move the mouse to the left, top or bottom of the XCamView UI, different control panel or toolbar will pop up and users could operate with the mouse at ease.

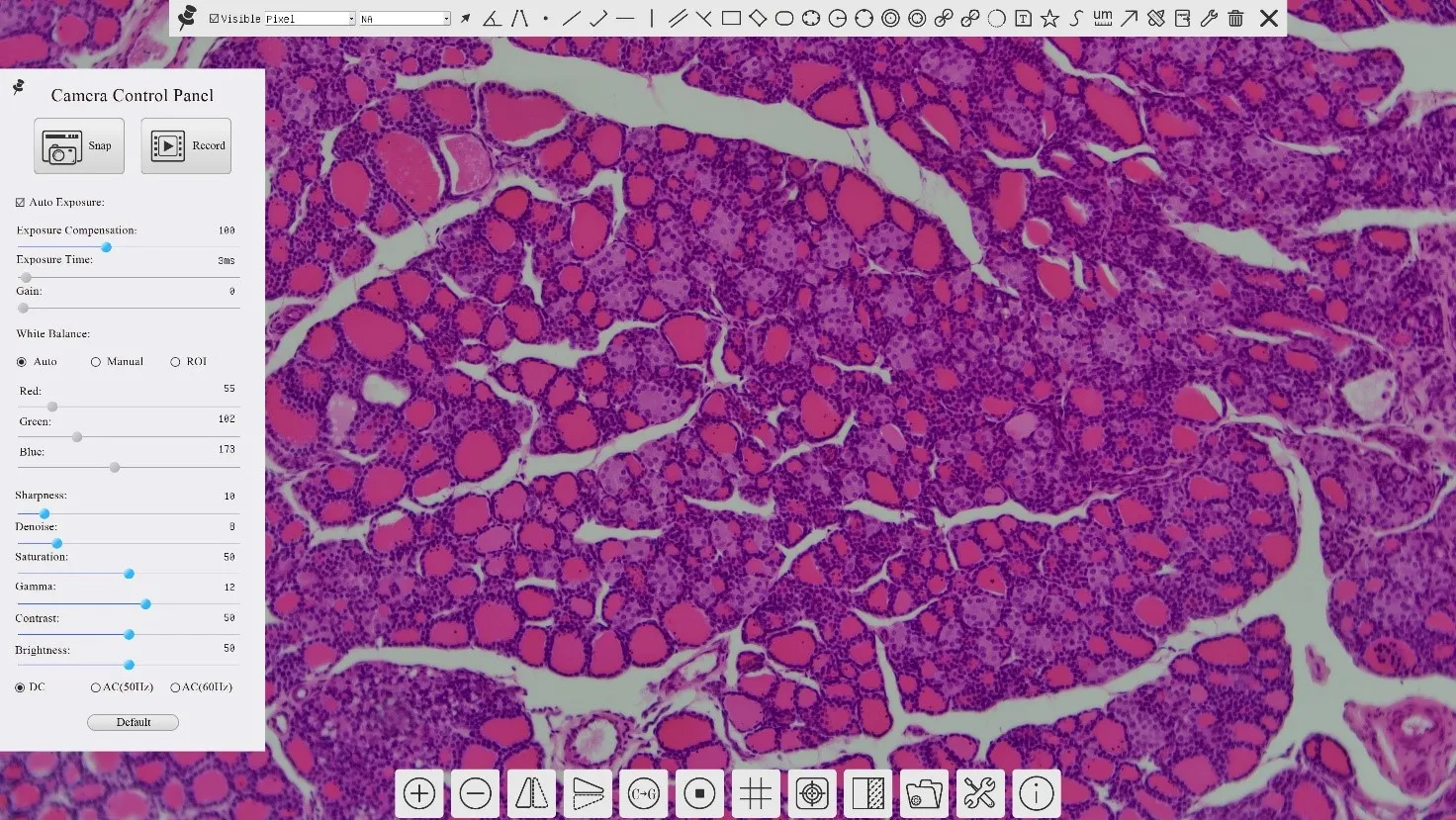

Figure 0‑2 XCamView And XCAMTOP4K Series Camera in HDMI Mode
Connecting camera to computers with USB2.0 Port
For Windows user(Windows XP (32bit), Windows 7/8/10/11 (32/64 bit) ), please use ToupView.
For macOS and Linuxuser (macOS 10.10 or above or Linuxdistributions with kernel 2.6.27 or higher), please use ToupLite. The steps to start the camera are listed below:
Start the camera according to Sec. 0. After the camera is running, connect camera to computer with USB cable. Please use

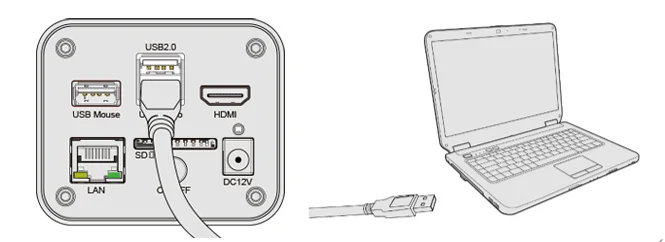

“USB Video” slot, NOT “USB Mouse” slot as shown below.
Install ToupView/ToupLite on your PC or install ToupView App on the mobile device; Run the software ToupView/ToupLite,
clicking the camera name in the camera list n to start the live video as shown in Figure 0‑3.
Notice:
After the USB cable is connected, the mouse will not work. If you want to use the mouse, please unplug the USB cable and restart the camera.

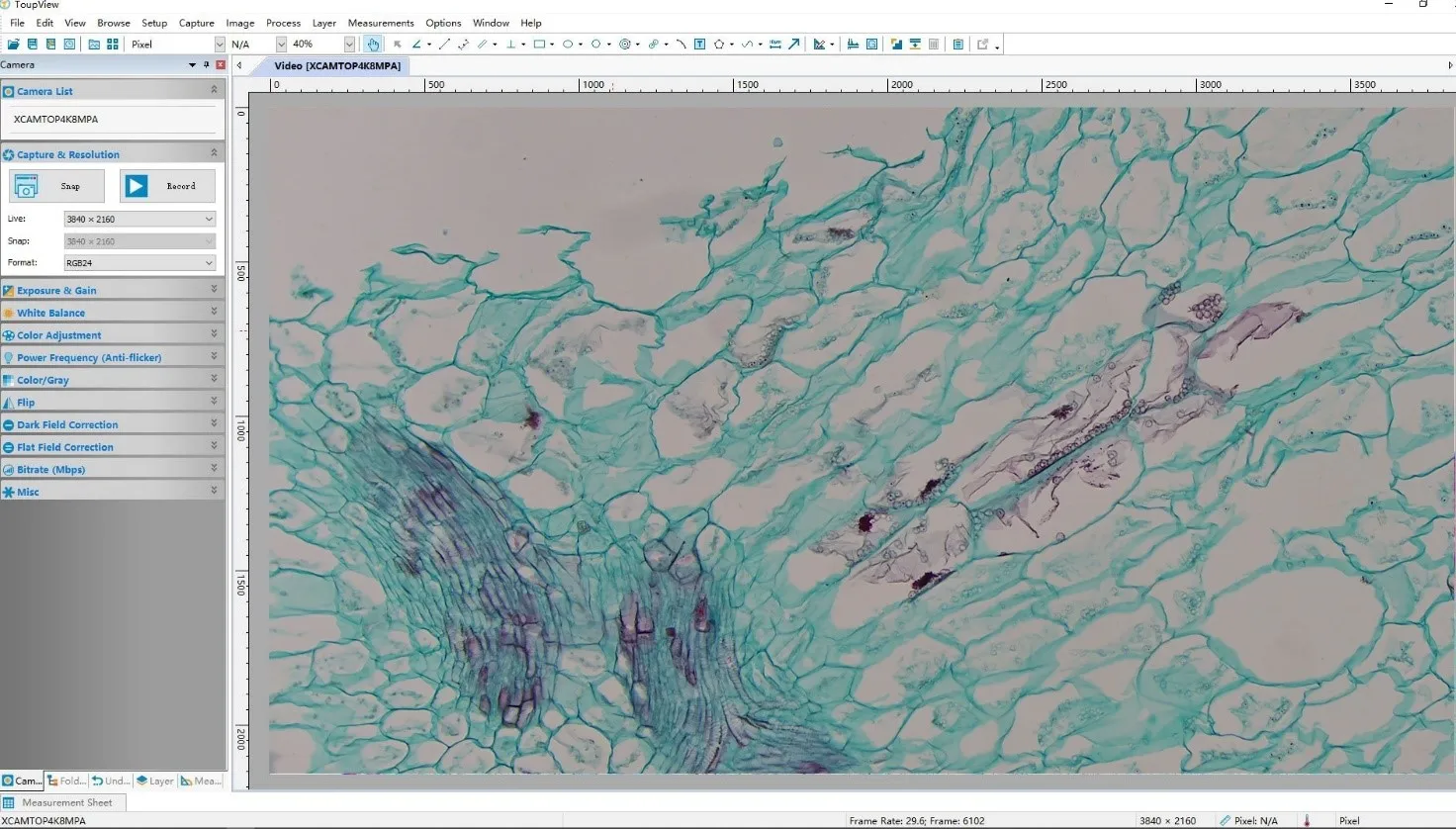

Figure 0‑3 ToupView and XCAMTOP4K Series Camera in USB Mode
Camera working in WLAN mode (AP mode)
Please make sure your PC is WLAN enabled.

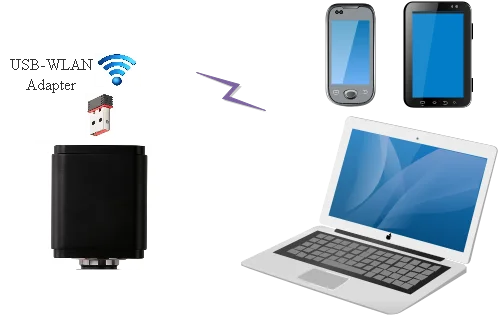

Figure 0‑4 The PC or Mobile Device Connect to the Camera through WLAN
For Windows user (Windows XP (32bit), Windows 7/8/10/10/11 (32/64 bit) ), please use ToupView.
For macOS and Linuxuser (macOS 10.10 or above or Linuxdistributions with kernel 2.6.27 or higher), please use ToupLite. When connecting the camera with a mobile device, the free ToupView Appis equired. Just make sure that the mobile device uses iOS 11 or higher/Android 5.1 or higher operating systems.
Sample Photos Captured with XCAMTOP4K Series Camera

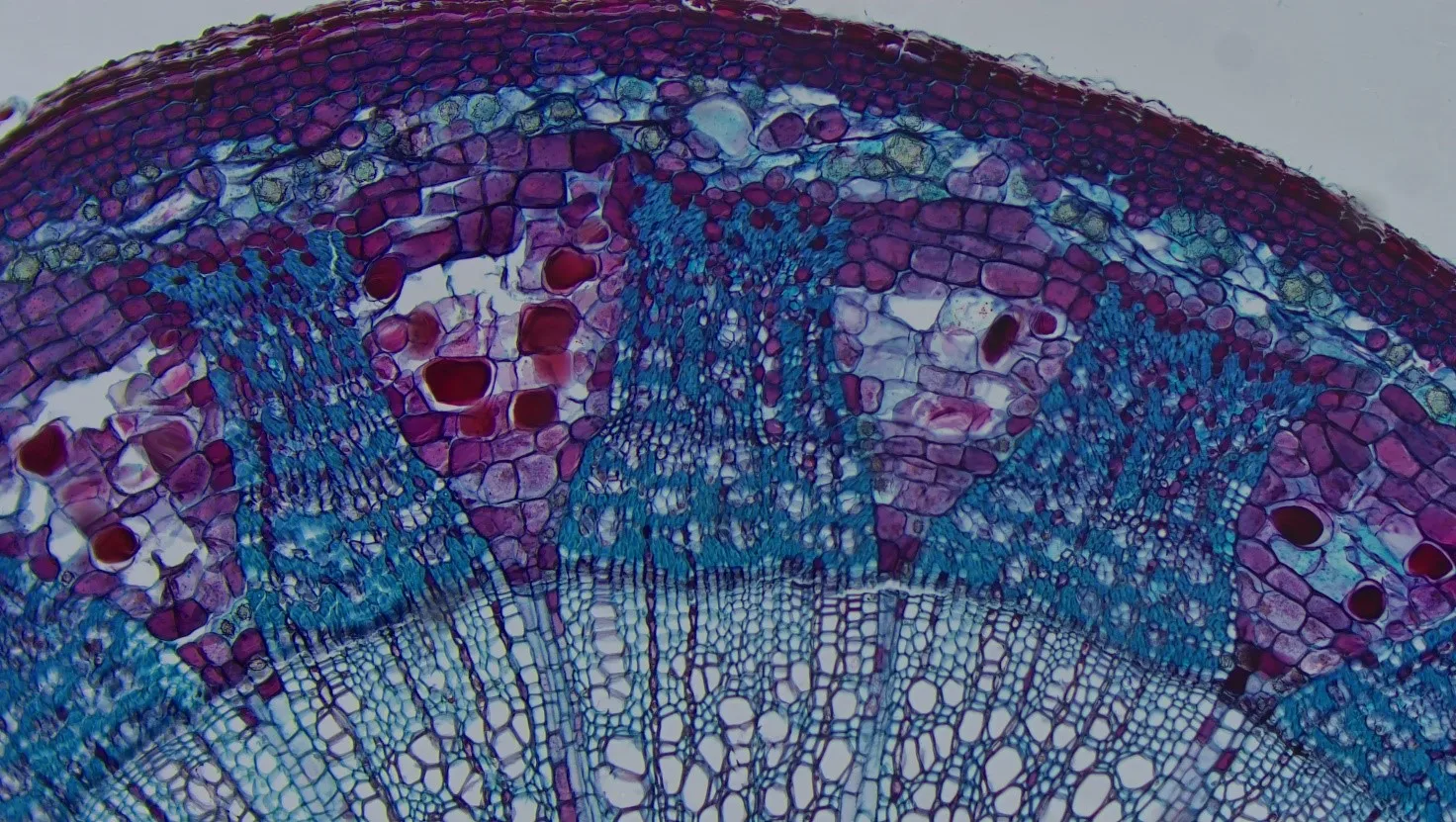

Figure 0‑1 Cucurbit Stem.L.S. Captured with XCAMTOP4K8MPA
Figure 0‑2 Two Year Tilia Stem.C.S. Captured with XCAMTOP4K8MPA

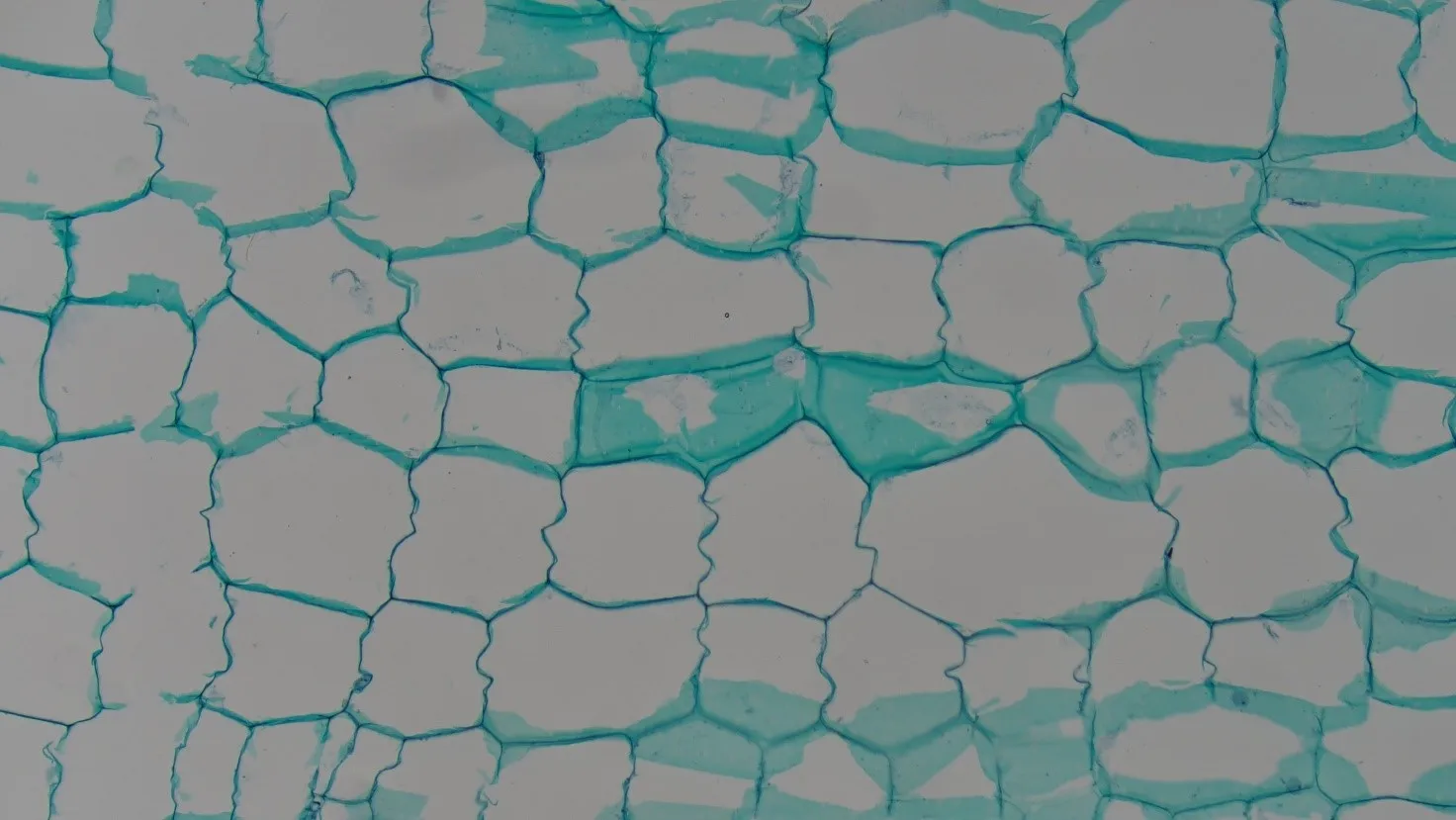

Figure 0 3 Simple Cuboidal Epithelium.Sec. Captured with XCAMTOP4K8MPA

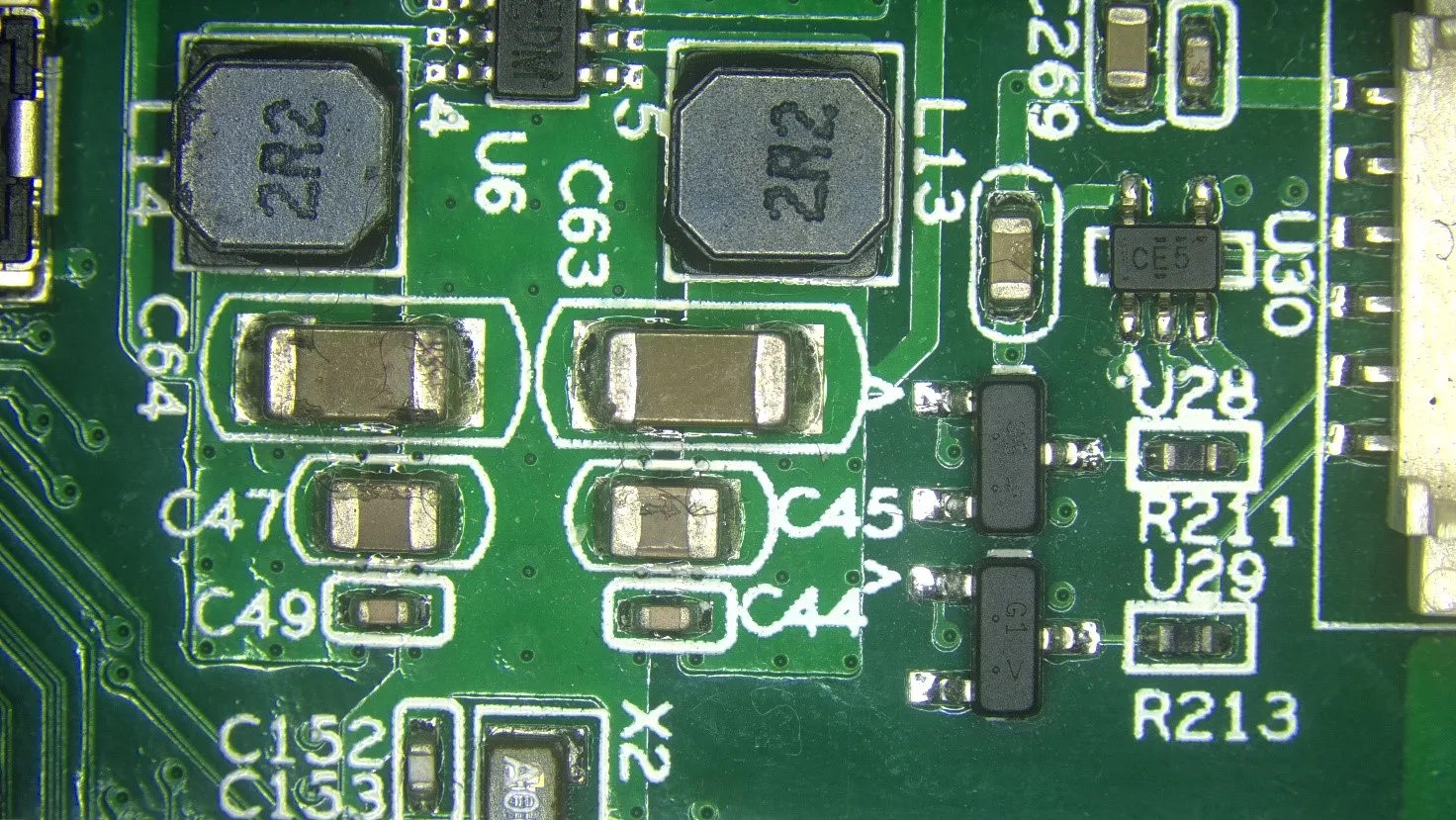

Figure 0‑4 Circuit Board Captured with XCAMTOP4K8MPA
