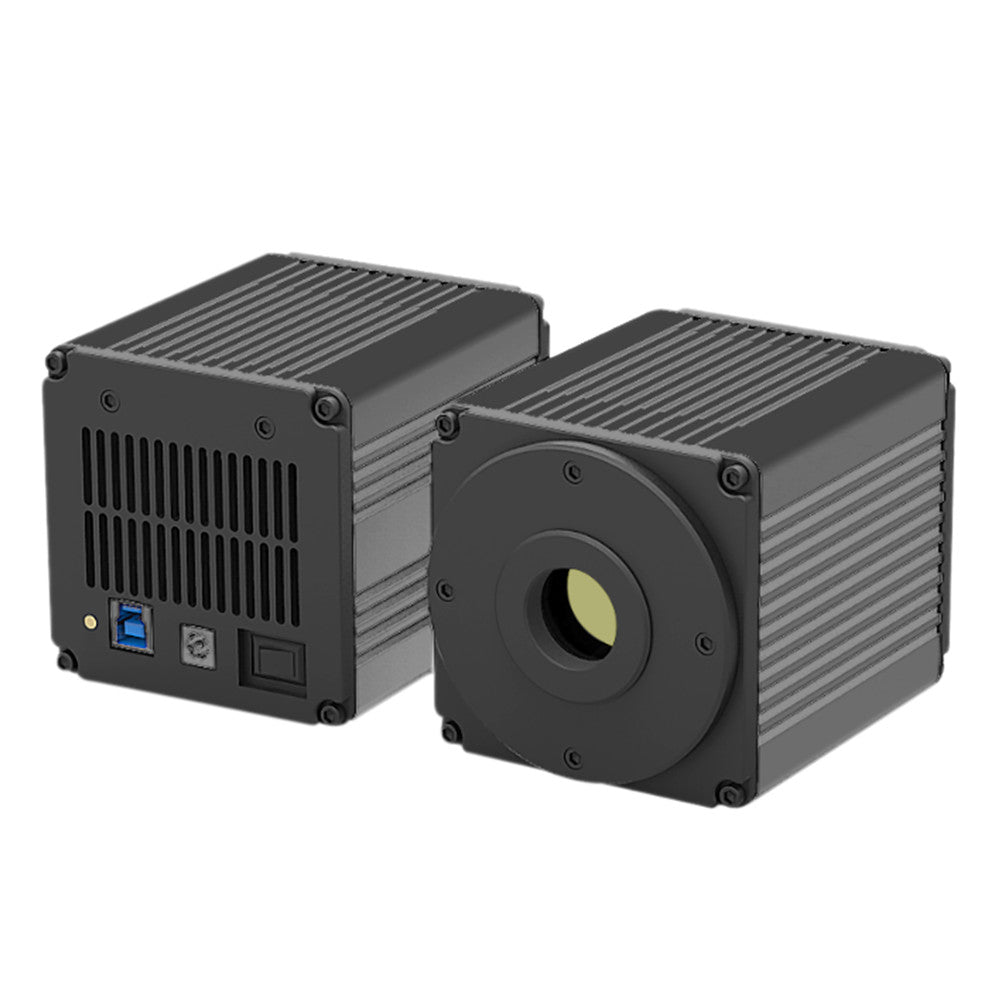

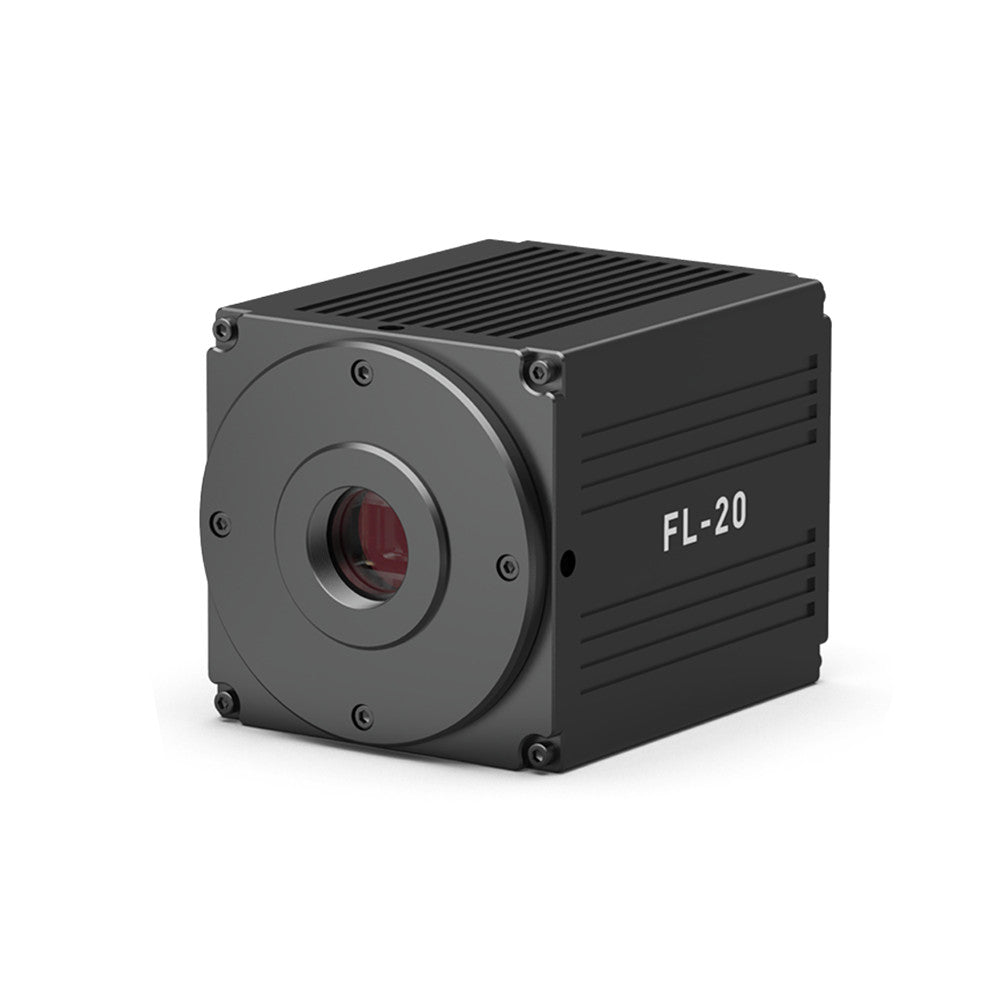

The camera is a Scientific CMOS camera designed for documentation or system integration. Delivering 20 million pixels with 84% QE it is the perfect camera for systems operating with low NA/low magnification objectives.
20MP for Capturing High-Resolution Images
Its nearly 16mm diagonal diameter image sensor can cover the most uniform central area of the image plane. With a resolution of up to 20 megapixels, you can capture high-definition details of your samples in one shot.
Advanced Cooling Technology Reduces Dark Current Down to 0.001e-/pixel/s
Based on Tucsen's professional cooling technology for sCMOS cameras, the camera can achieve a dark current level as low as 0.001e/pixel/s, significantly reducing hot pixels during long exposure times.
Excellent Comprehensive Performance
The camera has excellent overall performance, achieving the same low levels of dark current and cost as a CCD camera while maintaining the low readout noise and faster speeds of a CMOS camera.
Specification
|
|
|
|
Sensor Type |
CMOS |
|
Sensor Model: |
SONY IMX183CLK-J |
|
Color/Mono |
Mono |
|
Array Diagonal |
15.86mm |
|
Resolution |
20MP, 5472(H) x 3648(V) |
|
Pixel Size |
2.4μm x 2.4μm |
|
Effective Area |
13.1mm x 8.8mm |
|
Full-Well Capacity |
16ke- |
|
Frame Rate |
8fps@USB3.0 |
|
Peak QE |
84%@495nm |
|
Dark Current |
0.001e-/p/s |
|
Readout Noise |
0.6e- |
|
DSNU |
0.2e- |
|
PRNU |
0.8% |
|
Shutter Mode |
Rolling |
|
Exposure Time |
16μs-60min |
|
Binning: |
2x2, 3x3, 4x4, 8x8 |
|
PC Software |
Mosaic V2 |
|
Picture Format |
TIFF/JPG/PNG/DICOM |
|
Data Interface |
USB3.0 |
|
Multiple Cameras |
Supports 4 Cameras Simultaneously in SDK |
|
SDK |
C/C++, C#, Directshow/Twain |
|
Optical Interface |
Standard C Mount |
|
Bit Depth |
16/8bit |
|
Power |
12V |
|
Operating Environment |
Temperature: 0~40℃ |
|
Humidity |
10%~85% |
|
Dimensions |
85mm x 85mm x 112mm |
|
Camera Weight |
980g |
|
Operating System |
Windows 7/10(32 Bit/64 Bit)/Mac |
|
PC Configuration |
CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more |
