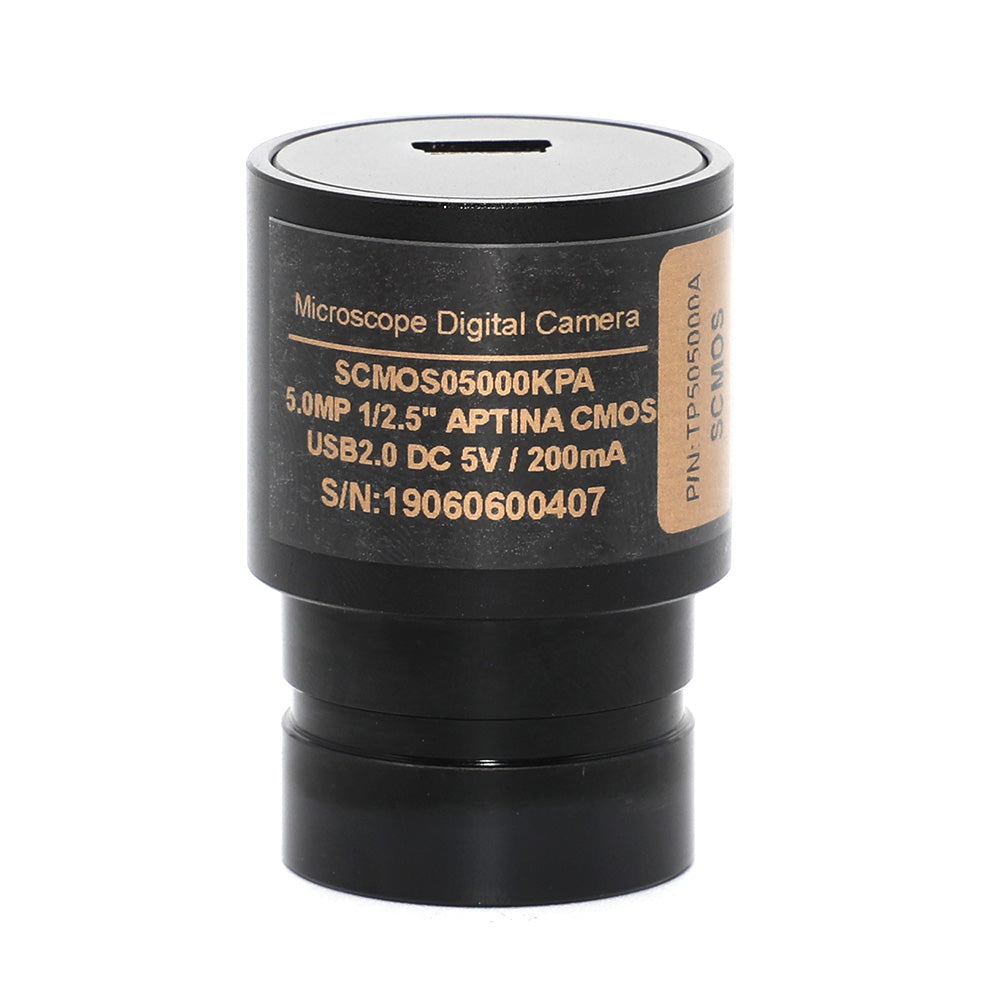

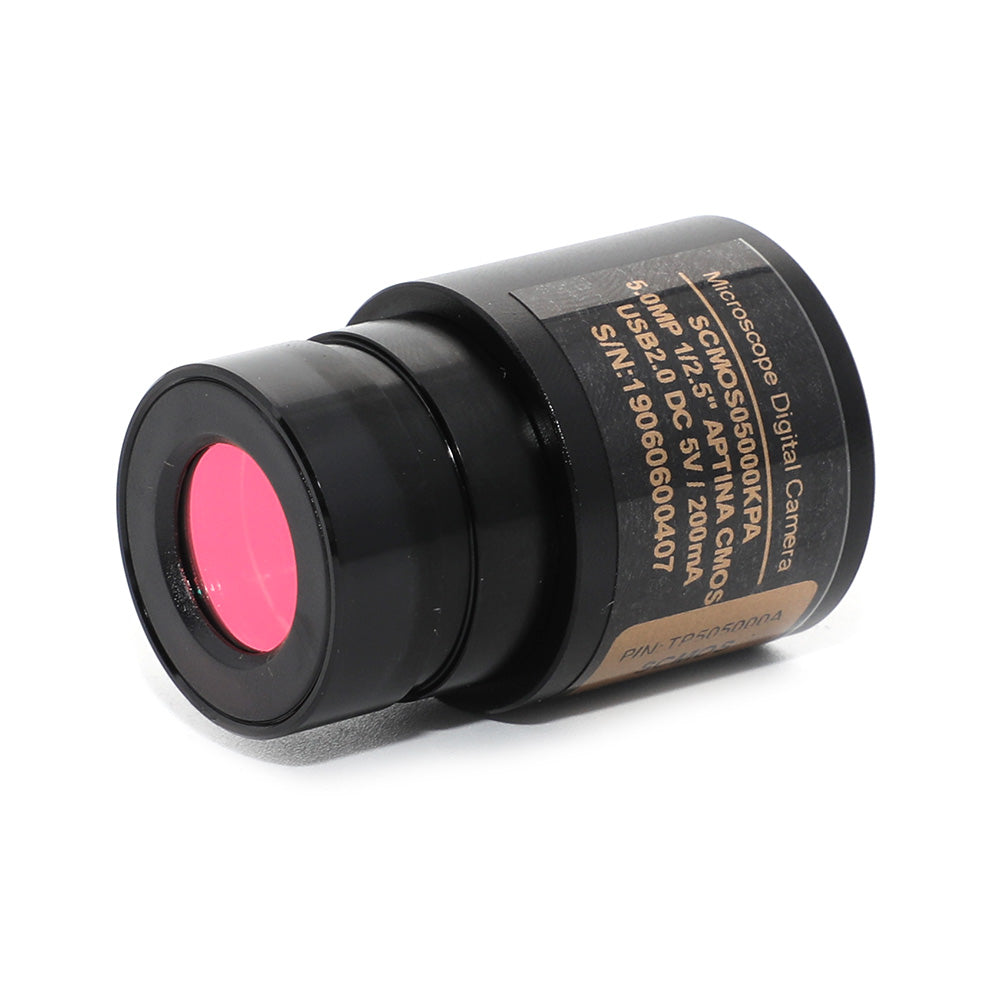

SCMOS Series USB2.0 CMOS Eyepiece Camera
SCMOS Characteristic
ToupTek SCMOS is an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.
The SCMOS comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Also the SCMOS comes with advanced video & image processing application ToupView;
The SCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also change the stereo microscope to digital stereo microscope.
1) Microscope eyepiece camera with 23.2 diameter and compact size;
2) Easy to extend to C or CS- Mount camera with high quality lens(optional);
3) High-quality camera with Aptina CMOS sensor;
4) Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
5) High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
6) With advanced video & image processing application ToupView;
7) Providing Windows/Linux/Mac OS multiple platforms SDK;
8) Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
SCMOS Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure |
|
SCMOS05100KPB |
5.1M/IMX335(C) |
2.0x2.0 |
505mV 70dB 43dB |
25@2592x1944 |
1x1 1x1 1x1 |
0.1-2000 ms |
C: Color; M: Monochrome;
|
|||||||||||||||||||||||||||||||||||||

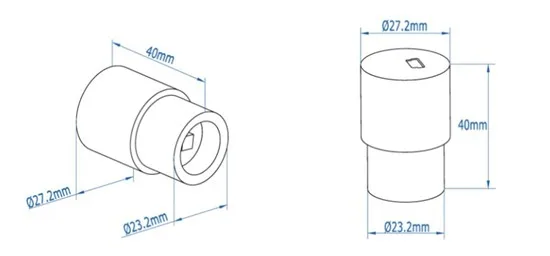

Dimension of SCMOS
The SCMOS body, made from aluminum alloy blackening, ocular housing: Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information for SCMOS
|

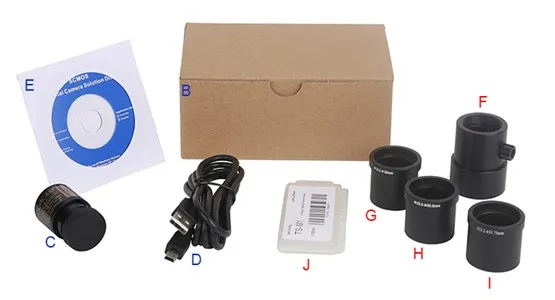

Standard Camera Packing List |
||
|
A |
Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton), not shown in the photo |
|
|
B |
Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/ box) |
|
|
C |
SCMOS series USB2.0 eyepiece camera |
|
|
D |
High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m |
|
|
E |
CD (Driver & utilities software, Ø8cm) |
|
|
Optional Accessory |
||
|
F |
C-Mount Adapter Housing:108027(HS502) |
|
|
G |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
|
|
H |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
|
|
I |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
|
|
J |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
If you need optional accessories, please contact me. I will quote additionally.
Sample Images Captured with SCMOS Camera(SCMOS00350KPA)
