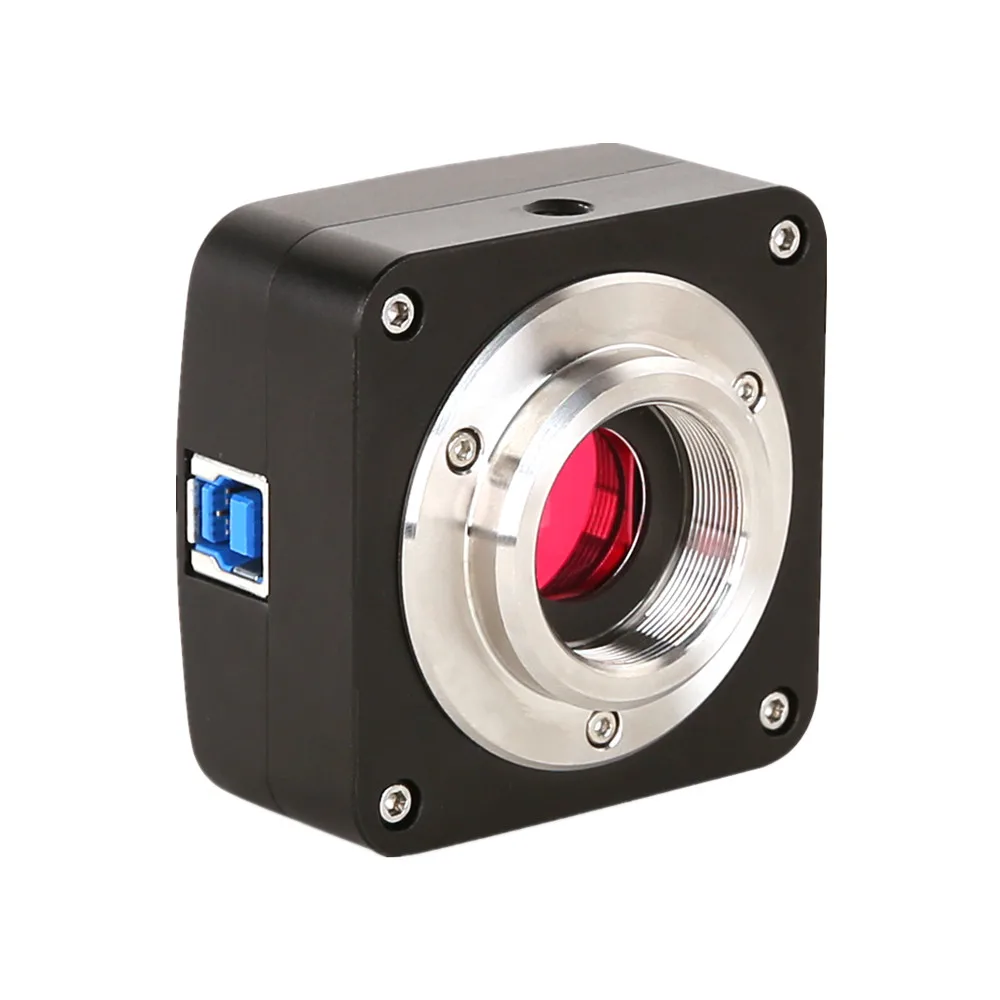

C3CMOS Series C-mount USB3.0 CMOS Camera
C3CMOS Basic Characteristic
C3CMOS is a Compact & high performance USB3.0CMOScamera，it adopts Sony or OnSemi CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
C3CMOS hardware resolutions range from 3.5M to 10M and come with the compact CNC aluminum alloy housing.
C3CMOS comes with advanced video & image processing application ToupView;
Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The C3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
The basic characteristic of the C3CMOScameras are as follows:
-
Standard C-Mount camera with Sony or OnSemi CMOS sensor;
-
With hardware resolution among 3.5M to 10M;
-
Compact CNC aluminum alloy housing;
-
USB3.0 5 Gbps interface ensuring high frame rate;
-
Ultra-FineTM color engine with perfect color reproduction capability;
-
With advanced video & image processing application ToupView;
-
Providing Windows/Linux/Mac OS multiple platforms SDK;
-
Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
C3CMOS Datasheet
|
Order Code |
Sensor & Size |
Pixel(μm) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure |
|
C3CMOS05100KPB |
5.1M/IMX335(C) |
2.0x2.0 |
505mV |
25@2592x1944 |
1x1 |
0.1ms~2000ms |
|
Other Specification for C3CMOS Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port: USB3.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|

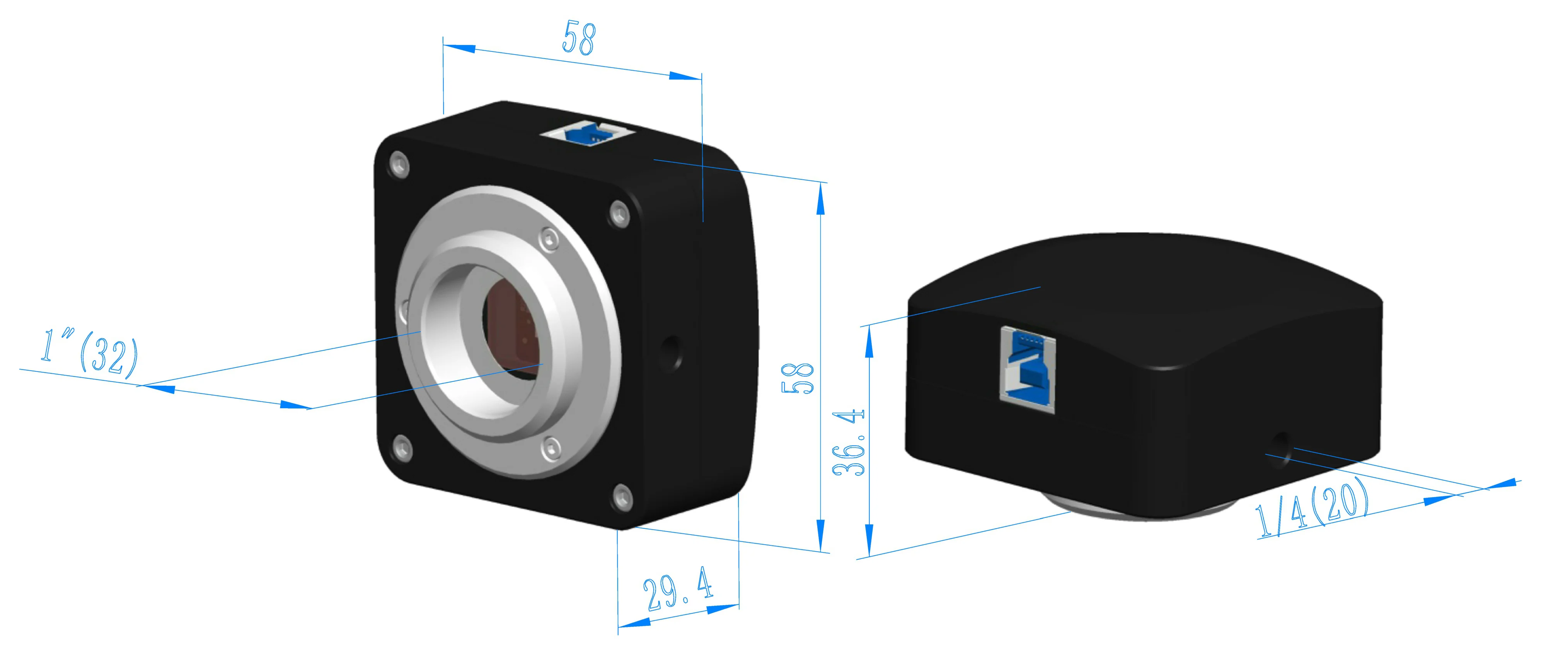

Dimension of C3CMOS Series Camera
The C3CMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of C3CMOS Series Camera

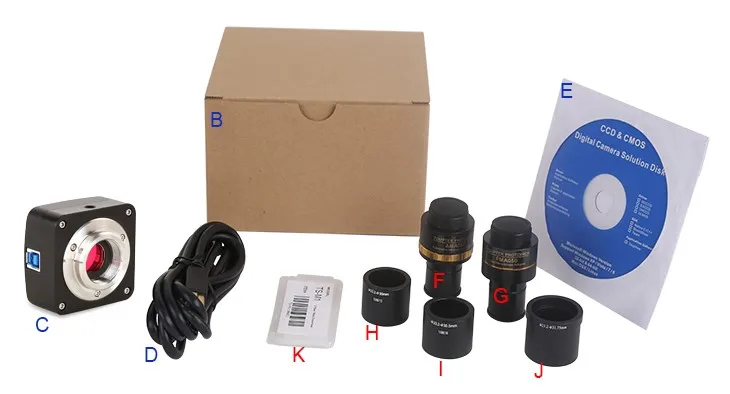

Packing Information for C3CMOS Series Camera
|
Standard Camera Packing List |
|||
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
||
|
B |
Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box) |
||
|
C |
C3CMOS series USB3.0 C-mount CMOS camera |
||
|
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
||
|
E |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
F |
Adjustablelensadapter |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
||
|
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-Mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
||
|
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right |
|||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
|
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
The price includes B C D E.
If you need optional accessories, I will quote accordingly.
