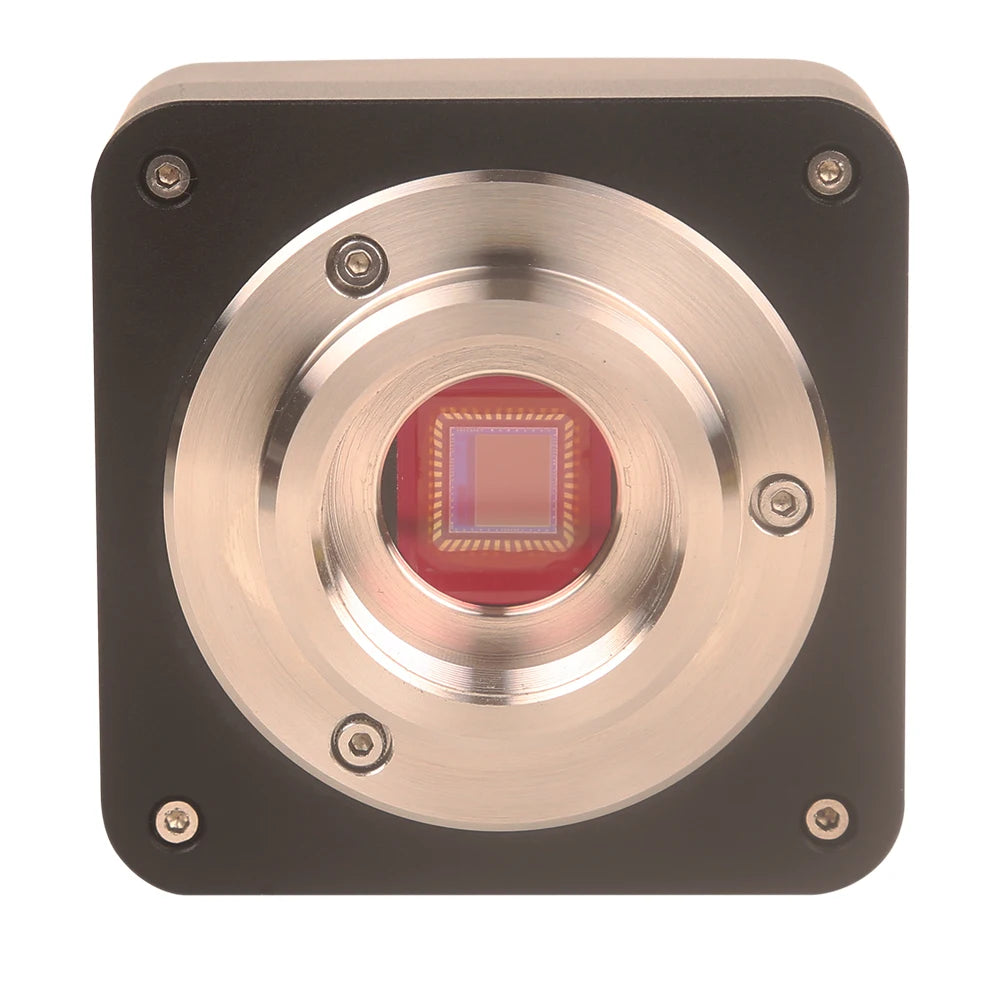

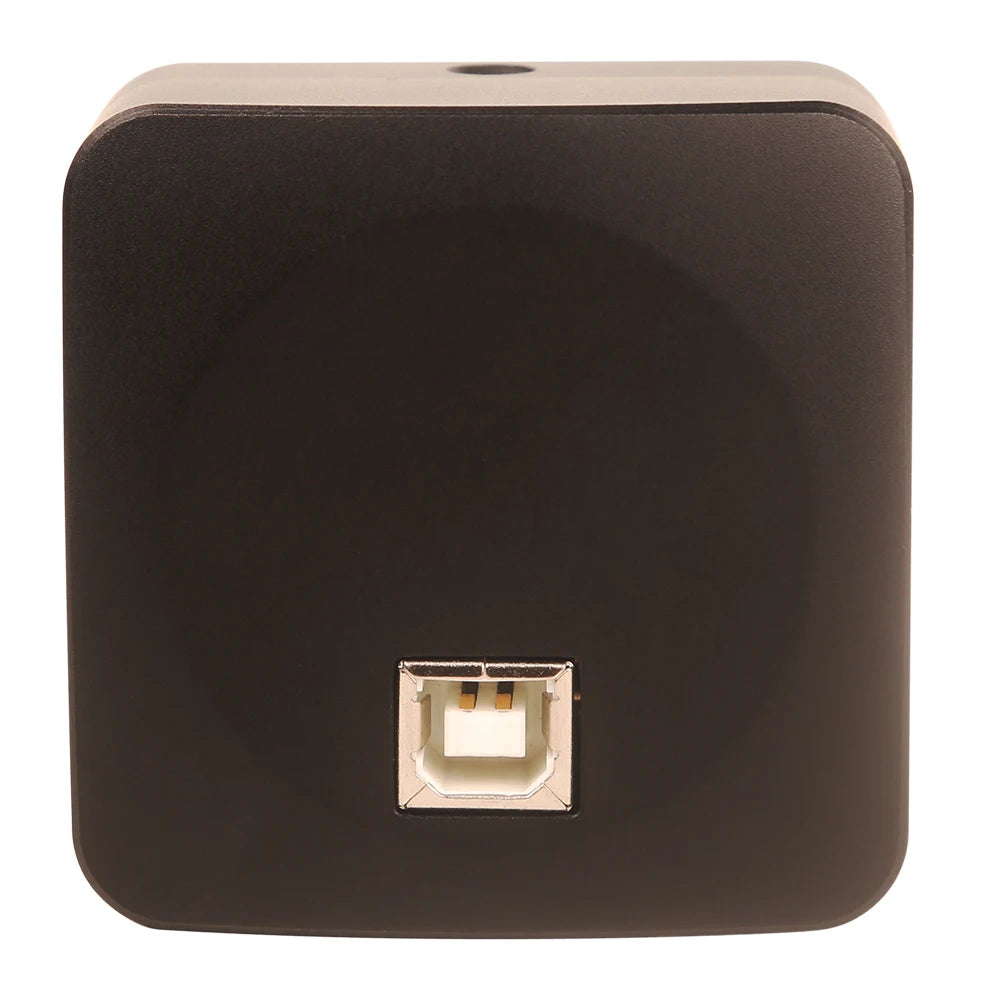

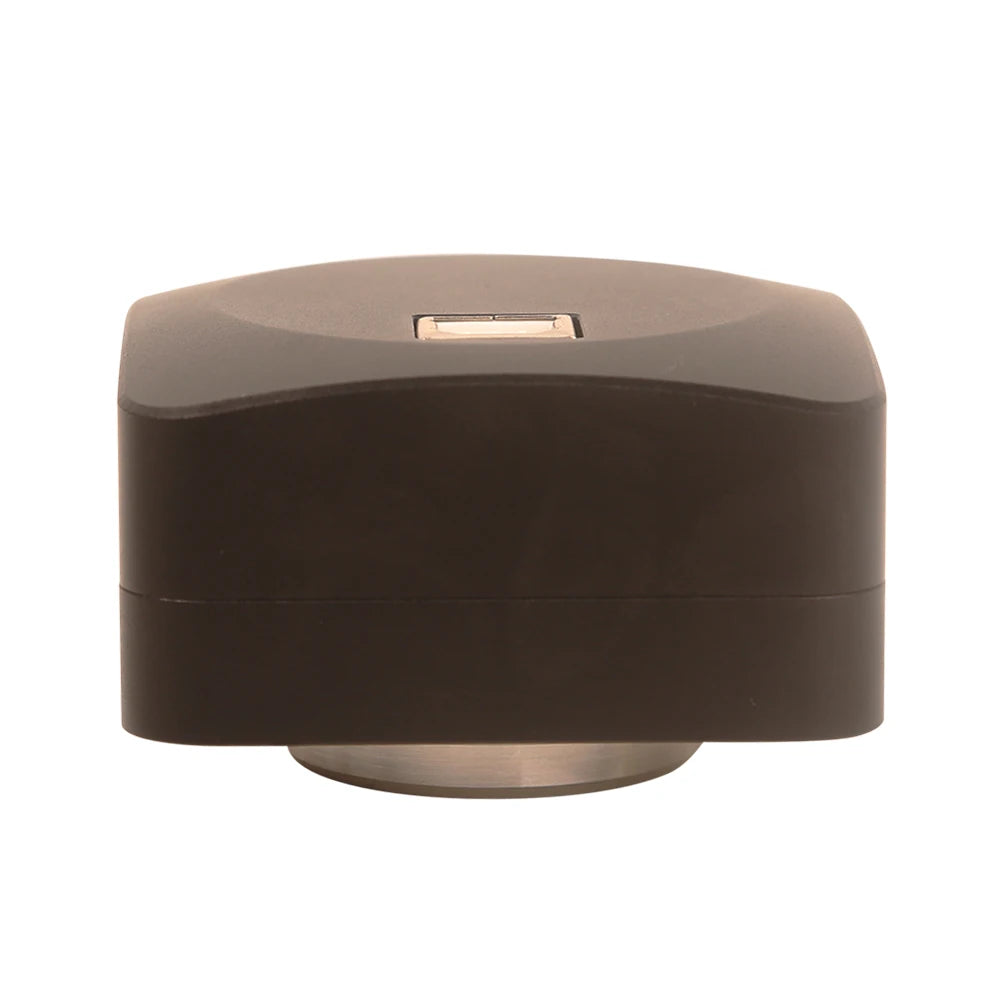

WCAM Series C-mount WiFi CMOS Camera
WCAM Basic Characteristic
WCAMisWiFicamera and it adopts ultra-high performance CMOS sensor as the image-picking device. WiFi is used as the data transfer interface. When theWCAMis attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.
The camera includes ToupView images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.
The basic characteristic ofWCAMcameras are as follows:
lC-Mount camera has 25.4 mm or 1-inch diameter with 32 threads per inch;
lScientific research grade camera with Aptina CMOS sensor;
lSends H.264 encodec high-resolution images from a microscope to
WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
lStreams images to several devices simultaneously;
lCNC aluminum alloy housing;
lUltra-FineTMcolor engine with perfect color reproduction
capability;
lWith advanced video & image processing application ToupView(only
support simple video viewing capturing for IOS/ android system);
lCustom programmable with SDK provided(Windows/Linux/OS);
WCAM Datasheet
|
Order Code |
Sensor Size(mm) |
Pixel(μm) |
GResponsivity Dynamic range SNRmax |
FPS/Resolution |
Binning |
Exposure(ms) |
|
WCAM0720PB |
720P/MT9P001(C) |
2.2x2.2 |
1.0 V/lux-sec 61dB 43dB |
10@1280x720 |
2x2 |
Auto Exposure |
C:Color; M: Monochrome;
|
Other Specification for WCAM Camera |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
Whole Area White Balance/ Manual Temp Tint |
|
Color Technique |
Ultra-FineTMColor Engine/NA for |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Maximum Connected |
<=3 |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
USB Charger, Not Recommend PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
WiFi Adapter with DHCP Enabled |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
|
PAD |
IPAD or PAD with Android System |
|
Mobile Phone |
IPhone or Smart Phone with Android System |

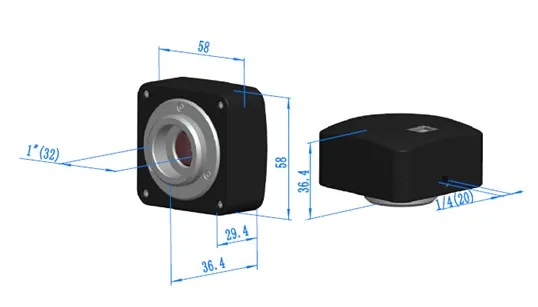

Dimension of WCAM Series Camera
TheWCAMbody, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of WCAM Series
Camera

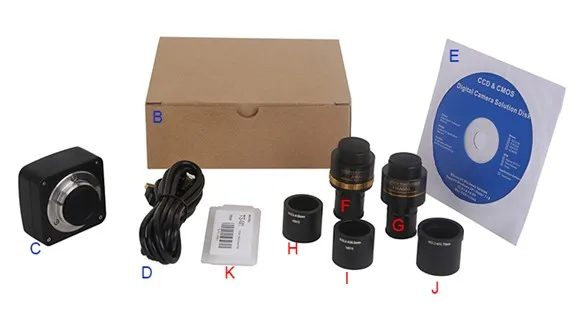

Packing Information of WCAM Series Camera
Packing Information of WCAM Series Camera
|
Standard Camera Packing List |
|||
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 11.4~14Kg/ carton), not shown in the photo |
||
|
B |
Gift box L:15cm W:15cm H:10cm (0.57~0.58Kg/ box) |
||
|
C |
WCAMseries USB2.0 C-mount CMOS camera |
||
|
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m(for PC power only) or with USB charger |
||
|
E |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube(Please choose 1 of them for your microscope) |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube(Please choose 1 of them for your telescope) |
108008/ATA037 |
||
|
G |
Fixed |
C-mount to Dia.23.2mm eyepiece Tube(Please choose 1 of them for your microscope) |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece Tube(Please choose 1 of them for your telescope) |
108011/FTA037 |
||
|
Note: For F an G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
||
|
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
